Product Description
Product Description
Applications:

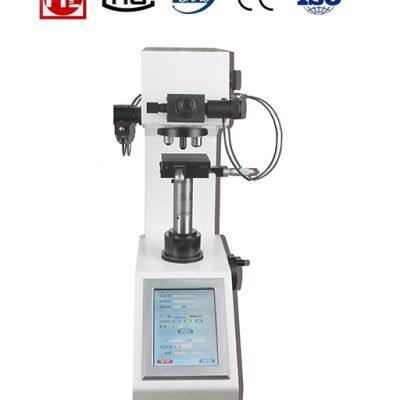

Model HVS-1000DT Digital display touch screen Micro Vickers hardness tester adopts large 8’ LCD touch screen display with menu type operation interface, on which hardness scale HV or HK (Option) can be chosen, showing tested hardness value, automatic calculation and display; The different hardness scale and value can be converted; The brightness of light source can be adjusted without grades; Can equip with inner camera to make the image more clearly
The tester can be calibrated by the standard hardness block or length scale to make the hardness value to meet request more precisely.
The eyepiece structure with digital encoder; Touch screen can show hardness value directly and D1, D2 values.
Test results can be stored automatically; automatic data processing and printing.
Equip with RS232 interface, which can connect with computer.
When the pressure head and the objective to switch to each other, the test point to be automatic positioning precision;
Technical Specifications
Model
| HVS-1000DT
|
Test force
| 10gf (0.098N)、25gf (0.245N)、50gf (0.49N)、100gf (0.98N)、 200gf (1.96N)、300gf (2.94N)、500gf(4.9N)、1Kgf (9.8N)
|
Standard Conformed to
| GB/T4340,ASTM E92
|
Min measuring unit
| 0.01µm
|
Data output
| 8’LCD screen display,60 kinds of test results storage, Inside Printer, RS-232
|
Conversion Scale
| Rockwell、 Brinell
|
Hardness measuring range
| 8~2900HV
|
method of testing force applied
| Automatic (loading, Dwelling , unloading)
|
Test microscope magnification
| 400X(Measuring),100X(observation)
|
Dwell time
| 0-99s
|
Maximum specimen height
| 100mm
|
Distance from the center to the outer wall of the indenter
| 130mm
|
X-Y test sets
| Dimension:100*100mm Maximum Movement:25*25mm
|
Dimensions
| 540*260*650mm
|
Net Weight
| Approx. 50Kg
|
Power supply
| AC220V+5%,50-60Hz
|
>>
