Vertical Bucket Elevator Cement Silo

Product Description

About Us Henan Yuanben Intelligent Technology Co., Ltd. (hereinafter referred to as Yuanben) is a specialized manufacturer that focuses on designing and manufacturing intelligent vibrating screening equipment. The company is committed to the processing, production, research& development and design of new intelligent vibrating screen. Yuanben is located in the national center city, Zhengzhou, it owns more than 20 technical engineers, and cooperates deeply all along with Henan Pingyuan Mining Machinery Co., Ltd. which has years of dedicated production experience, in addition, Yuanben has its own processing research and development base.
''Build industry with wisdom, create value with wisdom'', under the promotion of "Internet+" concept, Yuanben will deeply integrate ''intelligence + digitalization'' to build an intelligent workshop and realize the intelligence of overall process. While strengthening its own equipment automation intelligence, driving the transformation and upgrading of screening industry, the industry intelligent development should be also jointly promoted.
Get a price at once!
vertical bucket elevator cement silo
Introduction

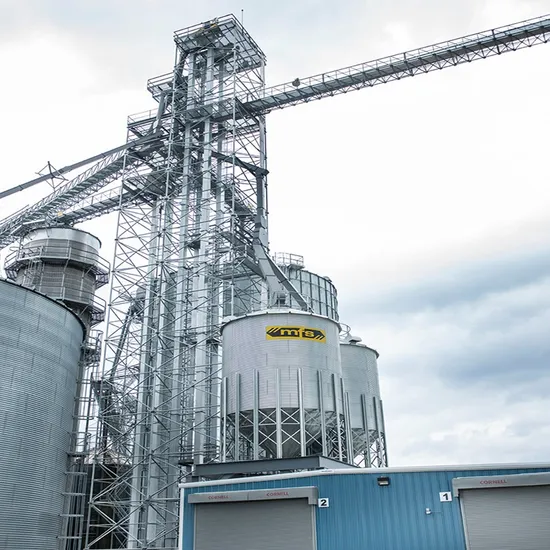

Silo bucket elevator is specially designed to associated with silo which is applicable to lift material in small size and density. Steel or plastic buckets are optional when you purchase,rubber belt or chain type bucket elevator are optional when YUANBEN engineers configure the proper model.Meanwhile,silo bucket elevator is totally enclosed type to prevent dust flying.Silo bucket elevator is widely used for conveying powder, granular and non-small-block mill and grinding of small materials, such as coal, cement, stones, sand, clay, ore and so on.
Advantages and Features
1.Superior design-Low power required, effective inflow feeding & guiding discharge, steady operation,compact structure.
2.Vast range of application- Almost no limitation for lifting material forms and properties.
3.Free from pollution- Good sealing condition could effectively reduce the environmental pollution.
4.Advanced technology-Excellent design & reliable manufacturing way has greatly ensured the overall machine.
5.Designed to fit your operation-Silo bucket elevator can be customized to meet different capacity and working site.
6.Customized driving unit-Domestic or Imported brand can be chosen as per client's requirement.
Get a price at once! Product Parameters Technical Parameter:

Silo Bucket Elevator
Model	Belt Width mm	Head Pulley Dia. mm	Tail Pulley Dia. mm	Bucket Speed m/s	Head Shaft Rotation Speed r/min	Steel Bucket Volume L	Steel Bucket Pitch mm	Steel Bucket Capacity t/h	Plastic Bucket Volume L	Plastic Bucket Pitch mm	Plastic Bucket Capacity t/h
TZD200	200	630	500	1.76	53.5	1.21	300	10	1.21	300	10
				1.76	53.5		150	20		150	20
				2	60		125	30		125	30
				2.75	83.3		105	50		105	50
TZD250	250	630	500	1.76	53.3	2.35	150	30	2.35	150	30
				1.76	53.3		125	50		125	50
				2.42	73.5		125	80		125	80
				3	91.9		125	100		125	100
TZD300	300	710	565	1.93	52.5	6	215	80	3.1	145	50
				2.2	60		215	100		145	80
				3.05	82.2		215	150		145	100
TZD400	400	710	565	1.93	52.5	8.4	215	100	6.1	195	80
				2.2	60		215	150		195	100
				3.05	82.2		215	200		195	150
TZD500	500	800	655	1.97	47	10.9	215	150	11.5	255	100
				2.2	52.8		215	200		255	150
				3.1	74		215	300		255	200
TZD650	650	800	655	2.2	52.8	2X6	215	200	2X3.1	145	150
				2.76	66		215	300		145	200
				3.87	92.5		215	400		145	300
TZD800	800	1140	930	2.5	41.6	2X8.4	215	400	2X6.1	195	200
				3.15	52.5		215	500		195	300
				3.94	66		215	600		195	400

Selection Conditions

♦Material to be processed: _____	♦Material is corrosive or not: ____ (Ps. Yes or No)
♦Handling capacity (Ps. It means the total	♦Working environment is indoor or outdoor:________
material capacity feeding from the inlet): _____t/h	♦Material is liquid or not:___________(Ps. Yes or No)
♦Bulk Density: _____t/m3	♦Working environment temperature: _______ ºC
♦Lifting height of the elevator (distance between	♦Upstream equipment (Ps. It means what kind of
inlet and outlet):__________m	equipment is used to feed the material): _____
♦Max. granule size of the feeding material: ____mm	♦Downstream equipment (Ps. It means what kind of
♦Percentage of Max. granule in material:_________%	equipment is used to discharge the material): _____
♦Material temperature: _____ºC;	♦Working power supply: _____V ______HZ
♦water content:____%
