US$1,000.00-3,500.00
|
1 Piece
(MOQ)
|
Basic Info.
Color
Red, Orange or Others
Lifting Capacity for Steel Scrap
600/500kg
Lifting Capacity for Steel Ball
7500kg
Lifting Capacity for Cast Iron
1300/1000kg
Application
It Is Used to Lifting All Kinds of Steel Scraps
Transport Package
Neutral Package
Trademark
SHENGANG MAGNET
Production Capacity
100 Sets Per Month
Packaging & Delivery
Package Size
125.00cm * 125.00cm * 50.00cm
Package Gross Weight
1800.000kg
Product Description
Product Description

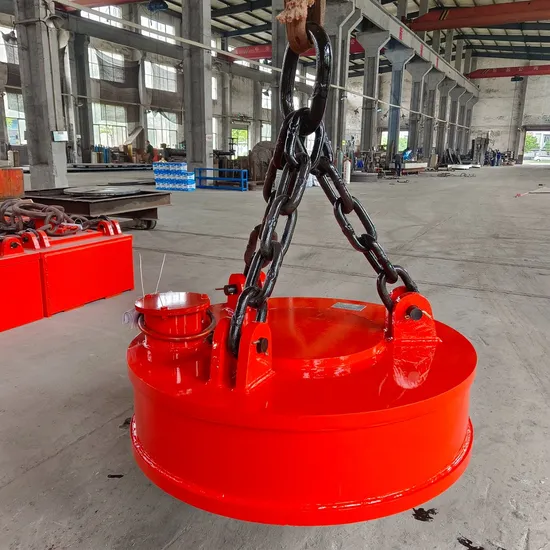

Crane magnet lifter is used for lifting and transporting iron scraps,ingots,steel chips,slabs,steel plates and steel sheets. We have both types that are suitable for installing with excavator and crane; And we also have magnet lifter that can be submerged under water. The lifting magnet can be used at very high and normal temperature in metallurgical plants, scrap yards and ship-building plants.
Features:
· Heavy-Duty Fabricated
· High-Impact Resistant Manganese Steel Bottom Plate
· Ground-Wired, Easy-Access Terminal Box
· Wear Resistant Hard-Faced Pole Shoes
· DC 220/230V Operation
· Deep-Field Aluminum or Copper Coils
· Class "H" Insulations
· Moisture & Shock Resistant High-Dielectric Compound
· Watertight Construction
Application:
· Recycling Industry
· Railroad Industry
· Demolition Industry
· Iron & Steel Industry
· Scrap Yard Processing
· Waste Processing
· Under Water Applications
· Manufacturing Scrap Waste Handling
Product Parameters
Model | Electric current (A) | Cold-state power (kw) | lifting capacity (kg) cold/hot state | Mass (kg) | Overall dimension (mm) |
steel ball | cast iron | steel scrap | A | B | C | D | E |
MW5-70L/1 | 15 | 3.3 | 2500 | 380/200 | 120/100 | 490 | 700 | 800 | 160 | 90 | 30 |
MW5-80L/1 | 18 | 3.96 | 3000 | 480/250 | 150/300 | 620 | 800 | 800 | 160 | 90 | 30 |
MW5-90L/1 | 26.6 | 5.9 | 4500 | 650/440 | 250/200 | 800 | 900 | 1090 | 200 | 125 | 40 |
MW5-110L/1 | 35 | 7.7 | 6500 | 1000/800 | 450/400 | 1350 | 1100 | 1140 | 220 | 150 | 45 |
MW5-120L/1 | 45.5 | 10 | 7500 | 1300/1000 | 600/500 | 1700 | 1200 | 1100 | 220 | 150 | 45 |
MW5-130L/1 | 54 | 12 | 8500 | 1400/1100 | 700/600 | 2010 | 1300 | 1240 | 250 | 175 | 50 |
MW5-150L/1 | 71.2 | 15.6 | 11000 | 1900/1500 | 1100/900 | 2830 | 1500 | 1250 | 350 | 210 | 60 |
MW5-165L/1 | 75 | 16.5 | 12500 | 2300/1800 | 1300/1100 | 3200 | 1650 | 1590 | 370 | 230 | 75 |
MW5-180L/1 | 102 | 22.5 | 14500 | 2750/2100 | 1600/1350 | 4230 | 1800 | 1490 | 370 | 230 | 75 |
MW5-210L/1 | 129 | 28.4 | 21000 | 3500/2800 | 2200/1850 | 7000 | 2100 | 1860 | 400 | 250 | 80 |
MW5-240L/1 | 154 | 33.9 | 28000 | 4800/3800 | 2850/2250 | 9000 | 2400 | 2020 | 450 | 280 | 90 |
Detailed Photos
Complete set of Equipment:
· Lifting electro magnet;
· Spring type cable reel with Cable;
· Rectifier control cabinet (Normal type,Strong excitation type, Battery back-up type);
· Cable connector / Quick coupling.
Processing flow and Package:
The package is angle steel welded frame and fixed with five-layer plywood around the outside to keep safety long-distance transportation;Don't need to be fumigated.
About Enquiry:
To help you get the best electro lifting magnet for your application, we should have the following information:
1. What are the materials you want to lift?
Steel scraps, steel billet, ingot, plate, bar or ball. For steel plate, please let us know its dimension (Length× Width× Thickness mm)
2. What's the lifting capacity you expect?
3. What kind of working site does the magnet work? Indoor or outdoor?
4. Kindly provide your power supply information (__V, DC/AC,__Hz), and information for crane (single beam or double beam, single hook or double hook, how about its loading capacity).
5.Do you need full set with cable reel, control cabinet or only magnet?
6.Do you need FOB or CIF price, which port?
(More details, please feel free to contact us directly. )
Application
Company Profile
Certifications
FAQ
1. Why customers choose us?
We are a professional lifting magnet products manufacturer with 18 years experience in China.We have our own factory which can offer better price, control delivery time better based on strict quality inspection and good after-service guarantee.
2.What is your payment terms?
Our payment is 30% T/T deposit,70% balance before factory delivery.
3.How long is your delivery time?
A:Standard model is within 10 workdays after deposit confirmed.
Customerized model will depend on actual production needs.
4.What is the total cost of freight?
Please provide your port of destination in order to give accurate freight.
5.Can I have product with our design and nameplate?
Of course,we welcome OEM and ODM order. Our engineer will provide you the proposal based on your detailed requirements.
6.What is your warranty and after service?
Our product is with 12 months warranty from delivery. We also support engineer to oversea market. Frankly speaking,with equipment renovation technology, our products tend to free maintenance.
>>
