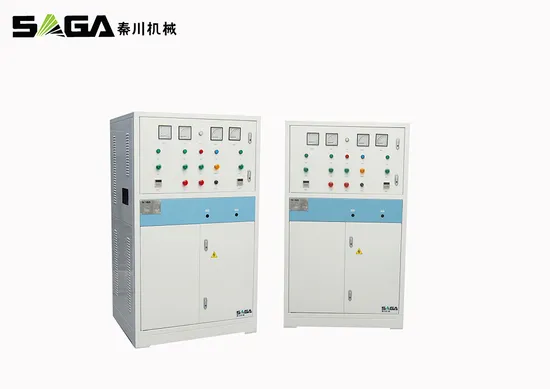

Hf High Frequency Generator for Curved Plywood Bending Hot Press

Product Description

Radio Frequency RF Generator For Timber Drying 30KW 1.High frequency generator (Radio frequency generator, high frequency machines) is a plant which can turn normal electric power to high frequency (electro-magnetic) power, suitable for fast curing of glue or water.
2.High frequency generator is suitable for curved plywood forming or wood panel jointing or hard wood drying, it is a core plant for high frequency machinery.

SPECIFICATIONS FOR HIGH FREQUENCY GENERATOR
	HF15-SA	HF20-SA	HF30-SA	HF50-SA
POWER	380V 50HZ 3PHASE 4WIRE OR CUSTOMIZED
INPUT POWER	20KVA	30KVA	40KVA	75KVA
OUTPUT POWER	15KW	20KW	30KW	50KW
OSCILLIATION	6.78Mhz
PROTECTION	Overload protection,wind pressure detection ,filament protection,cooling fan protection
TUNNING MODE	Tunable vacuum capacitor
COOLING MODE	Forced wind cooling
OUTPUT	2 output
OVER SIZE	950x1000x1800mm	950x1000x1850mm	1000x1100x1850mm	1100x1200x1950mm
WEIGHT	500kg	600kg	650kg	980kg

Main Features High Frequency Generator(Radio Frequency generator) is a plant which can turn normal electric power to high frequency(electro-magnetic) power,apply this power to the load equipment or electrode,the water or glue molecule with in the work pieces is polarized and rapidly change direction or move follow the frequently change of the electro-magnetic power,thus cause suddenly friction,this friction between molecule makes the temperature raise,thus the water vaporized and glue bond.
1.More scientific design,simple and humanistic control panel.
2.Control electric spare parts are mostly use Schneider or Ormron brand,stable and safe.

---
