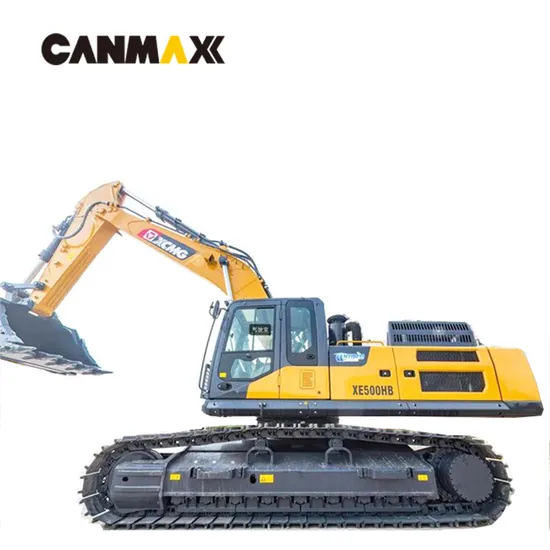

Excavating Machinery Xuzhou Xe500hb 50 Ton Mining Crawler Excavator with Hydraulic Hammer

Product Description

Product Description
Earthmoving Machinery china 50ton crawler excavator XE500HB for sale

X's new-generation "DK-series" mine-based hydraulic excavators are energy-saving, efficient, comfortable and durable.The new hydraulic system is characterized by high efficiency, slightloss of pressureand reasonable flow distribution;the lengthened & widened chassis and heavy-load double-rib track shoeensure high stability of the vehicle during mine operations; the strengthened working deviceoptimizes hinged points and makes the vehicle to be with the most powerfuldigging force, meeting digging, truck loading, crushingand other requirements in heavy-load working conditions.
Detailed Photos



After Sales Service

we are famous building machinery manufacturer, professional construction machinery exporter and one stop solution supplier in China, our team have more than 15 years experience in this field already.
(1)Warranty:Every product issued shall enjoy a one-year/2000 working hour warranty period, during which we will repair or replace the defective parts free of charge if material or process defects occur and spare parts are in normal working condition.
(2)Spare parts:CANMAX is dedicated to provide our clients with genuine spare parts with the highest quality,exact fitness and appropriate function.with our global distributor network,you are guaranteed with fast deliveries and services, wherever you are,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately.
(3)Installation & Maintenance:CANMAX is able to provide with the overall installation of complicated machinery,allowing you to start the normal operation of construction machinery solutions.After installation,we will make inspection of the whole machine,operate equipment,and provide you with testing data reports of installation and operation.
(4)Training:CANMAX offer perfect facilities and comfortable environment and can provide training services to different users. The training sessions include product training, operation training, maintenance know-how, technical know-how training, standards, laws and regulations training and other training, all of which are tailored to fulfill your individual needs. Training programs can be conducted in our factory field, or at the client's site.
(5)Technical Advice: CANMAX can also help customers to coordinate with trained service personnel and provide you with detailed and extensive knowledge. Through our technical advice, your machine life can be significantly extended and sustained high capacity.

Product Parameters

Sales model		Unit	XE500HB
Operating weight		Kg	48500
Bucket capacity		m³	2.3-3.1
Engine	Model	/	QSM11
	No. of cylinders	/	6
	Output power	kw/rpm	280/2000
	Maximum torque/speed	N.m/rpm	1898/1300
	Displacement	L	11
Main performance	Travel speed	km/h	5.4/3.2
	Swing speed	r/min	9.2
	Gradeability	°	35
	Ground pressure	kPa	85
	Bucket digging force	kN	301
	Arm digging force	kN	248
	Maximum traction	kN	338
Hydraulic system	Rated flow of main pump	L/min	2×360
	Main safety valve pressure	MPa	34.3/37
	Travel system pressure	MPa	34.3
	Rotary system pressure	MPa	31
	Pilot system pressure	MPa	3.9
Oil Capacity	Fuel tank capacity	L	725
	Hydraulic tank capacity	L	430
	Engine oil capacity	L	38
Appearance size	A Overall length	mm	11805
	B Overall width	mm	3572
	C Overall height	mm	3890
	D Width of platform	mm	3095
	E Track length	mm	5470
	F Overall width of chassis	mm	3572
	G Track width	mm	600
	H Length to center of rollers	mm	4407
	I Track gauge	mm	2740
	J Counterweight clearance	mm	1335
	K Min. ground clearance	mm	518
	L Min. tail swing radius	mm	3800
	M Track height	mm	1225
Working scope	A Max. digging height	mm	9855
	B Max. dumping height	mm	6890
	C Max. digging depth	mm	7000
	D Maximum depth cut for 2240mm(8 ft) level bottom	mm	6900
	E Max. vertical wall digging depth	mm	4500
	F Max. digging radius	mm	10855
	G Min. swing radius	mm	4580
Standard configuration	Length of boom	mm	6670
	Length of arm	mm	2900
	Bucket capacity	m³	2.6
Optional configuration	Length of boom	m³	7060
	Length of arm	m³	3380/2600/2400
	Bucket capacity	m³	2.3,2.5,3.1

FAQ
Q1:Which country do you export to?
Asia:India,Philippines,Thailand,Burma,Vietnam,Bangladesh,Kazakhstan,Turkmenistan,etc.
Middle east:Saudi Arabia,UAE,Jordan,Oman,Syria,Pakistan,etc.
Europe:Russia,Ukraine,Belarus,Bulgaria,etc.
Africa:South Africa,Kenya,Congo,Ethiopia,Nigeria,Ghana,Algeria,Senegal,Tunisia,etc.
South America:Brazil,Peru,Chile,Cuba,Mexico,etc.
Oceania:Papua New Guinea,Australia,etc.
Q2:What is the proportion of your products export?
75% of our products are exported to all over the world.
Q3:What is the payment term?
Payment term is negotiable and there will be favorable payment terms for long-term customers.TT,L/C,D/P,depending on the cooperation time,country and contract value.
Q4:What kind of logistic service do you supply?
FOB,CIF,DAP,ETC.
Q5:What spare parts can you supply?
All kinds of spare parts of top brands, shantui,zoomlion,sinotruck,shacman,liugong,sdlg,lonking,xgma,etc.

---
