Modular Mobile Batching/Mixing Plant, Various Concrete Construction Equipment

Product Description

Modular Mobile Batching/Mixing Plant, Various Concrete
Construction Equipment Product Parameters

Item	Argument	Remark
Theoretical productivity	75 m³/h	Calculated according to 1.5m³ per disk and 72s cycle
Mixer type	Double horizontal shaft
Nominal capacity of mixer	1500 L
Aggregate storage capacity	4×8m³	the density is 1.4t/m3
Powder bin capacity	2×100 t (Optional)	the density is 1.35t/m3
Admixture tank capacity	1×3t	the density is 1.0t/m3
Aggregate weighing range	(900~3000)±2% kg	A single material within a range equal to or greater than 30% of the weighing, each pallet of concrete in each transport vehicle measurement of each material sum deviation
Cement weighing range and accuracy	(225~750)±1% kg
Admixture range and precision
Water weighing range and accuracy	(150~300)±1% kg
Admixture weighing range and precision
Maximum particle size of aggregate	60mm	If the size is larger than 60mm, please specify in
Discharge height	3.8m
Installed capacity	About 125KW	Contains 2 spirals

Product Introduction

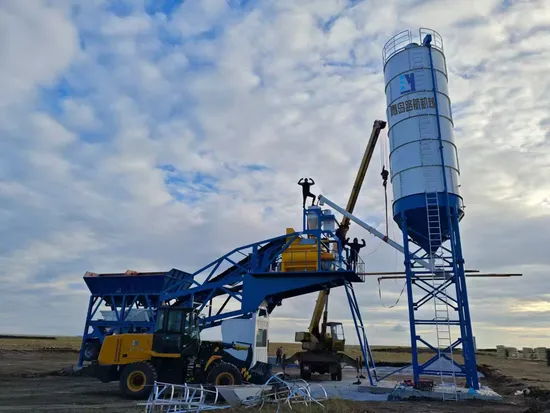

Mobile concrete mixing plant is a kind of periodic forced mixing equipment, generally by the aggregate batching conveying system, powder storage. Storage and supply system, liquid storage and supply system, metering system, mixing system, electrical control system, main building frame, etc. It can automatically measure aggregates, cement, water and admixtures of different specifications according to the specified ratio respectively, and then send them into the forced mixing machine for mixing and mixing to produce the automatic equipment that meets the requirements of uniform concrete. The product has the characteristics of convenient movement, small footprint, reliable continuous operation of the whole machine, high measurement accuracy, mainly used in small engineering construction projects.
Installation Instructions
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile
Qingdao Luhang Machinery Equipment Co., Ltd. is specialized in the design and development, processing and manufacturing of concrete mixing machinery and sales services The industrial company.
Since its inception, the company has been adhering to the purpose of science and technology, honest service and people-oriented, the pursuit of excellence. We strictly implement the requirements of ISO9001 quality management system to ensure that we provide customers with perfect quality products. At present, the main products are concrete mixing equipment, concrete recycling environmental protection equipment, dust removal equipment.
Technological innovation is an inexhaustible source of enterprise development power. Our company's technical research and development personnel account for 30% of the total number of employees. At the same time, Lu Hang machinery in-depth cooperation with well-known universities in Qingdao, hiring Rich industry project development experience of university doctoral supervisors and construction machinery industry experts regularly to the company work guidance.
In the future, Luhang Machinery looks forward to continuing to walk with you!

Supply Ability
100 Piece/Pieces per Year

Our Advantages
Qingdao Luhang Machinery Equipment Co., Ltd. is specialized in the design and development, processing and manufacturing of concrete mixing machinery and sales services.With advanced technology and high cost performance, the company has been praised by domestic and foreign customers, bringing profits to customers at the same time, but also save Customer maintenance costs.

After Sales Service
Always a pre-production sample before mass production;Always final Inspection before shipment.
FAQ
1. Who are we?We are based in Shandong, China, start from 2021,sell to Domestic Market(45.00%),North America(12.00%),Southeast Asia(10.00%),South America(9.00%),Central America(8.00%),Mid East(8.00%),Northern Europe(5.00%),South Asia(3.00%). There are total about 101-200 people in our office.2. How can we guarantee quality?Always a pre-production sample before mass production.Always final Inspection before shipment.3.What can you buy from us?mixing plant,Mixing plant accessories,environmental protection equipment,dust removing plant,Sewage recovery equipment.4. Why should you buy from us not from other suppliers?Qingdao Luhang Machinery Equipment Co., Ltd. is specialized in the design and development, processing and manufacturing of concrete mixing machinery and sales services The industrial company. Since its inception, the company has been adhering to the pur.5. What services can we provide?Accepted Delivery Terms: FOB,CIF,EXWAccepted Payment Currency:USD,EUR,AUD,CNYAccepted Payment Type: T/TLanguage Spoken:English
Detailed Photos

---
