CO2 Detector with Ndir Sensor and Alarm for Air Quality Monitor and Indoor Plant

Product Description

Product Description

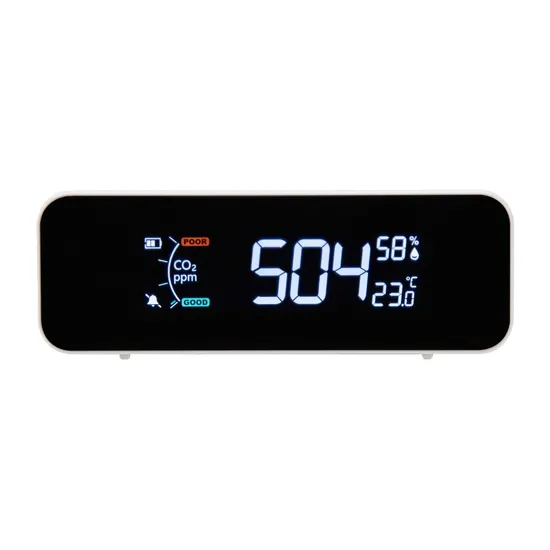

With built-in NDIR technology to improve long term stability, AKn16 is a smart desktop mini CO2 monitor, designed to accurately track air quality within CO2, temperature and humidity. The portable CO2 detector size of a palm is easy to carry and can detect the air quality in schools, office buildings, hotels, hospitals, laboratories, greenhouse and anywhere that high levels of carbon dioxide are generated. With an internal recharge LI battery, AKn16 can keep work 48 hours without external power supply.
Basic Info:

Model NO.	AGn16	Power Source	USB Type-C
Trademark	OEM/ODM	Origin	China KunShan
Sensor Type	NDIR	HS Code	9027100090
CO2 Range	0~5000ppm	Production Capacity	80000 Pieces/Year
Temperature Range	0~50ºC(32°F to 122°F)	Transport Package	Carton
RH Range	0-100%	Package Type	1 pcs/Color Box
Battery	Internal 1000mA	Weight	103g Device only
Single Package Size	120*66*33mm (4.7*2.6*1.3inch)

Feature:
Ø NDIR (Non-Dispersive-Infrared) technology is used to improve the long term stability
Ø CO2/Temperature/RH Monitor; Tracer
Ø CO2 concentration indicator
Ø Build-In recharge LI battery
Ø 3-color indicator bar (green / yellow / red) gradually changes with CO2 concentration
Ø Adjustable three-stage backlight function
Ø Only one key, easy for use.
Operating Instructions
Initial Setup: When first unboxing, plug in the unit to the included Type-C USB (or one of your own to almost any cell phone charger or USB power source). Then LED display shows a countdown from 15 seconds for warm up .Once the countdown is complete, your product is ready to use.
Three Color Indicator LED:
Three LCD BAR will indicator the CO2 concentration,when CO2<800ppm, Green bar will display on LCD, Yellow bar display when CO2 is 800~1200ppm; Red BAR Display when CO2 >1200ppm.
KEY Function:
When warm up count down finish, the main display will show the CO2 value, press "Function Key" will switch the LCD brightness levels. Press and hold "Function Key" for 3 seconds to enter MENU setting.
Specifications
Typical test conditions, unless otherwise specified: Ambient Temp =23+/-3°C, RH=50%-70%, Altitude=0~100 meter

Measurement	Specification
Operating Temperature	32°F to 122°F (0°C to 50°C)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Operating & Storage RH	0-95%, non-condensing
CO2 Measurement
Accuracy at 0~3000ppm	±50ppm or ±5% of reading, whichever is greater
Accuracy over 3000ppm	±7%
Repeatability	20ppm at 400ppm (standard dev. of 10 readings in 1 minute)
Measurement Range	0-5000ppm
Display Resolution	1ppm (0-1000); 5ppm (1000-2000); 10ppm (>2000)
Temp Dependence	±0.1% of reading per °C or ±2ppm per °C, whichever is greater, referenced to 25°C
Pressure Dependence	0.13% of reading per mmHg (corrected by user's altitude input)
Response Time	<2min for 63% of step change or <4.6min for 90% step change
Warm-up Time	<30 sec
Temp Measurement
Operating Temperature	32°F to 122°F (0°C -50°C)
Display Resolution	0.2°F (0.1°C)
Accuracy	±1°F (±0.5°C)
Response Time	<20min (63%)
RH Measurement
Range	0-100%
Accuracy	±5%
Resolution	1% on Main Reading, 0.1% on Max Min Reading
Power Requirements	160mA Peak, 15mA average at 5.0V
Battery Life	1000mA Recharge LI Battery 48 hours (Test by factory laboratory)
Dimension	120*91.2*27mm (4.7*3.6*1.1inch)
Weight	148g ( 5.22oz) Device only, AC Adapter not included

Application
About Us
KUNSHAN AST Optoelectronics CO., LTD designs, develops and manufactures high quality and affordable electronic device, especially in the field of NDIR gas measurement, our team has 15 years of development experience.
We are ISO 9001 certified ODM/OEM Company, we cooperate with many world-renowned brand companies, and our products are sold to more than 20 countries around the world, mainly the U.S.A, Europe and Japan. Our engineers design our products while keeping the following goals in mind: to ensure the highest level of quality, accuracy, our design team strives to improve the competitive edge of our products to help you develop a broader market.
Our team is committed to the research and development of infrared measurement. Especially in the field of NDIR gas measurement, our team has 15 years of development experience, and professional engineering development experience allows us to continue to receive high praise from customers. We continue to invest and improve in research and development, automatic calibration equipment, and automatic testing equipment, so that we can better serve and meet the expectations of our global partners. Mutual benefit and win-win with partners.

---
