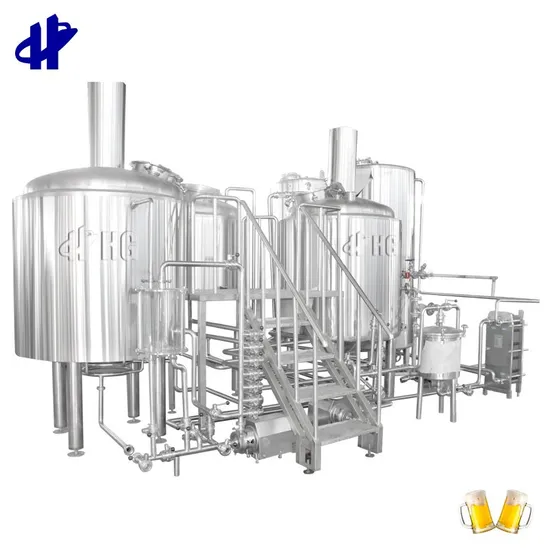

1000L Turnkey Project Beer Equipment Brewing Machine for Make Craft Beer

Product Description

Model	HG-1000
Capacity	1000L/Batch
Material	SUS304
Application	Restaurants, bars, hotels, brewery
Heating way	Sean heating/ Electric heating/ Direct Fire heating
Voltage	AC380/220V,50/60HZ
Power	27Kw
Water consumption	3.5m3/T
Diameter	1360mm
Height	2800m
Degree of automation	Semi-automatic/Fully automatic

1000L brewery equipment is widely used in brewery factory, restaurant and so on. It can brew pale lager, amber
lager, dark lager, ale and etc at proper temperature with different raw material. According to the client's requirement,
HG can produce stainless steel 304 brewhouse, copper and etc.
2-Vessel Main Features:
A typical two-vessel Combination Mash Lauter Tuns are the first combination vessel in these brewhouses line ups.Next inline
is the combination of the Kettle and Whirlpool tanks.
3-Vessel Main Features:
A three-vessel brewhouse is hybrid system that incorporates at least one combination vessel and two dedicated
process vessels.
4-Vessel Main Features:
A typical four-vessel brewhouse will include a Mash tun, Lauter Tun, Kettle and Whirlpool. Each of these tanks
is dedicated to performing a single process, and is designed differently than similar vessel used for performing
multiple processes.
Beer equipment advantages:
1). High cost performance.
2). Good abrasion resistance materialcopper beer equipment.
3). We all adopt SUS304 to produce our equipment. The inner jacket and seal head of the tanks are all 3.0mm.
The external jacket is 2.0mm. It ensure the good pressure resistance and good abrasion resistance.
4). Polishing accuracy up to Ra0.4μ m.
5). Strict tank pressure test.
6). Energy conservation and pollution emissions.

Item	Production capacity	Volume in US Gallon	Heating area	Tank diameter	Height
HG-50	50L/day	14US Gallon	0.15m2	550mm	1500mm
HG-100	100L/day	26US Gallon	0.25m2	650mm	2000mm
HG-200	200L/day	53US Gallon	0.25m2	910mm	2200mm
HG-300	300L/day	79US Gallon	0.3m2	910mm	2300mm
HG-500	500L/day	132US Gallon	0.5m2	1160mm	2400mm
HG-600	600L/day	158US Gallon	0.6m2	1160mm	2500mm
HG-700	700L/day	185US Gallon	0.7m2	1260mm	2500mm
HG-800	800L/day	212 US Gallon	0.8m2	1260mm	2500mm
HG-1000	1000L/day	264US Gallon	1.0m2	1360mm	2800mm
HG-1500	1500L/day	396US Gallon	1.5m2	1560mm	2900mm
HG-2000	2000L/day	528US Gallon	2.0m2	1960mm	3150mm
HG-2500	2500L/day	660US Gallon	2.5m2	1960mm	3200mm
HG-3000	3000L/day	792US Gallon	3.0m2	2060mm	3800mm
HG-5000	5000L/day	1320US Gallon	5.0m2	2260mm	4400mm

Our service
1.Pre-service:
-Layout:Sent us your building floor plan, or the sketch, or tell us the size (length, width, height), we will offer you an equipment footprint according to your requirement.
-Technical Drawings : We will offer Technical Drawings of each tank based on the equipment layout .
-3D effective sketch: We will 3D effective sketch to make sure ensure you have a more intuitive experience
2.After service
We guarantee the quality of the electrical elements within 1year and tanks body within 1 years. If the electrical elements go wrong without artificial factors within one year, we will freely provide them or maintain them for you.
After warranty, if you need to change parts, we will kindly provide you with the best price or maintain it in your site. Whenever you have technical question in using it, we will freely do our best to support. We can also dispatch our engineer to your brewery to install and adjust the machines for you. He can also train your staff to use the equipment.
FAQ
Q: Are you a manufacturer?
A:Yes, We have more than 20 years in brewing and beer filling equipment.
Q: What is your available port of shipment?
A: Qingdao, Tianjin, Ningbo, Shanghai.
Q: How could we confirm the details of the products?
A: We will provide all the drawings for you to confirm before production.
Q: How long the warranty will be?
A: 3 years warranty for the whole tank and the main equipment, 1 year for the accessories and auxiliaries.
Q: How about the installation and training?
A: We can supply the installation and training. There are two options. The first option: We could appoint our
engineer to your company to debug and repair, as for the cost of this trip such as ticket, visa, accommodation
and labor cost shall be on your side. The second option: On-line service will be provided. If still under guarantee
period, the necessary accessories and parts will be provided free, the buyer afford the transportation cost.
Q: How do you guarantee the filling machine operation?
A: Before the delivery, we will test and debug all machines in good condition and record the video for your checking.

---
