Mckf2120 Gear Box CNC Machine Multifunction Grinding Machine

Product Description

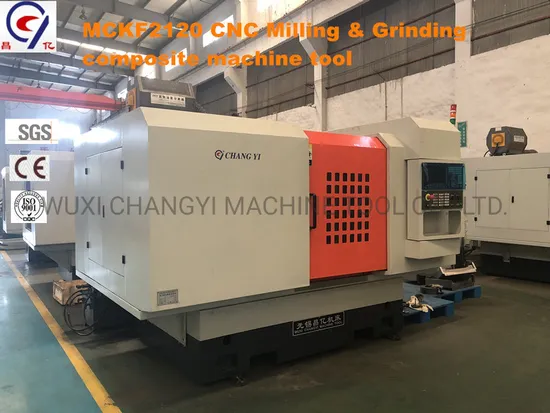

Specifications of MCKF2120 Multifunction milling & grinding composite machine tool
1,Max. grinding ID 280 mm
2,Max. grinding depth 200 mm
3,Max. swing diameter of work piece 600 mm
4,Max. stroke of grinding wheel feeding structure 600 mm
5,Max. weight of loading work piece(fixture contained) 180kg
6,Max. stroke of work table reciprocating motion 450 mm
7,Rotary speed of work piece 0-80 stepless adjustment
8,Rotary speed of grinding wheel 0-9000 stepless
9,Processing accuracy
10,Roundness of internal hole 3 um
11,Cylindricity of internal hole 5 um
12,Roughness of internal hole Ra0.4 um
13,Motor power of work piece 4 kw
14,Motor power of grinding wheel 5-12 kw
15,Servo motor power of X axis 2 kw
16,X axis servo motor resolution 0.001 mm
17,Z1 axis servo motor power 1.5 kw
18,Z1 axis servo motor resolution 0.001 mm
19,Z2 axis servo motor power 1.5 kw
20, Z2 axis servo motor resolution 0.001 mm
21,Z2 axis grinding wheel spindle motor power 20 kw
22,Cooling pump flow(L/min) 100
23,Weight of machine tool 6200kg
24,Oversize dimension of machine tool 2950X2350X2050mm
25,Rated power 32 kw

---
