Large Capacity Filter Rubber Machinery; The Most Popular Rubber Filter Machine

Product Description

Product Description
The rubber filter is a machine that uses screw pushing and conveying to remove the impurities in the rubber material or recycled rubber. It is mainly composed of screw, barrel, filter head and transmission device. The filter head is equipped with a hole plate and a filter net, and the hole plate is used to support the filter net and is a discharge port, its aperture is 4 ~ 8mm, and it is a conical hole expanding along the direction of the flow of the rubber material.Technical points of rubber filter:
1. The screw diameter of the filter is generally more than 150
2. Length-diameter ratio is generally about 5
3. Equal distance and depth screw structure
4. Compression ratio is very small, many are 1, do not compress
5. Slow speed, large power, high filtration efficiencyDetailed Photos

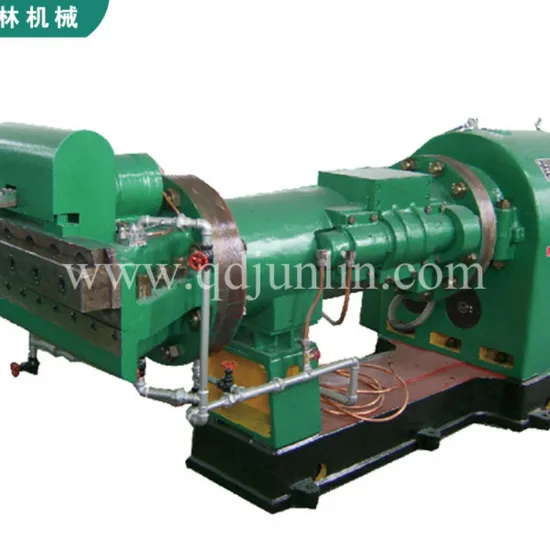

Rubber filter, rubber filter, inner tube filter is used to filter the impurities of rubber material, the head is hinged, installed on the flange of the fuselage, and the worm gear is driven to unlock, saving energy and light unlocking. The body of the filter has a spiral water vapor channel, which has a good temperature control effect, and is equipped with a thermocouple and a temperature measuring millivoltmeter to display the temperature. The screw and bushing of the rubber filter are made of high quality alloy steel and nitrided, with sufficient strength and good wear resistance. The reducer of the rubber filter is driven by involute cylindrical gear, and the lubricating volume of the oil pool is small and the weight is light.Product Parameters

	XJL-90	XJL-115	XJL-120	XJL-150	XJL-200	XJL-250
Screw diameter(mm)	90	115	120	150	200	250
Length-diameter ratio(l/d)	4.5:1	4.5:1	4.5:1	4.5:1	4.35:1	4.5:1
Screw highest speed(r/min)	50	50	50	45	40	40
Motor power(kw)	22	30	30	45	75	110
Voltage(v)	380	380	380	380	380	380
Steam pressure(mpa)	0.4~0.6	0.4~0.6	0.4~0.6	0.4~0.6	0.4~0.6	0.4~0.6
Cooling water pressure(mpa)	0.2~0.4	0.2~0.4	0.2~0.4	0.2~0.4	0.2~0.4	0.2~0.4
Maximum yield(kg/h)	120	160	180	610	860	1600
Equipment weight(t)	2.6	3.1	3.6	6.1	7.2	7.8

Certifications
Company Profile
Qingdao Junlin Machinery Co., Ltd. is a company engaged in rubber machinery, shoe machinery research and development and manufacturing enterprises, located in the west coast of Qingdao, Shandong, China, the geographical environment is superior.
The company gathers a large number of outstanding technical and management talents in the industry, with advanced machining equipment and precision testing instruments. Relying on high-quality service, advanced equipment and excellent technical strength, through continuous innovation and development, Junlin Machinery has established a stable business relationship with many customers at home and abroad, and gradually established a brand position in similar enterprises.
The main products of the company are: open rubber mixing machine series, waste tire rubber recycling production line series, calender, extruder, filter rubber machine series, film cooling line series, plate vulcanization machine series and so on.
Our Advantages
The company has T150 large floor boring machine, 2m×6m large planer milling machine, MQ1350A×3000 cylindrical grinding machine, M7150×2000 surface grinding machine, C62100B×5000 large lathe, C61110×3000 large lathe, C6180×3000 large lathe, C6125×3000 large car Bed, T611B horizontal boring machine, CNC lathe and a series of advanced processing equipment, according to customer requirements to produce a variety of special rubber machinery equipment.

---
