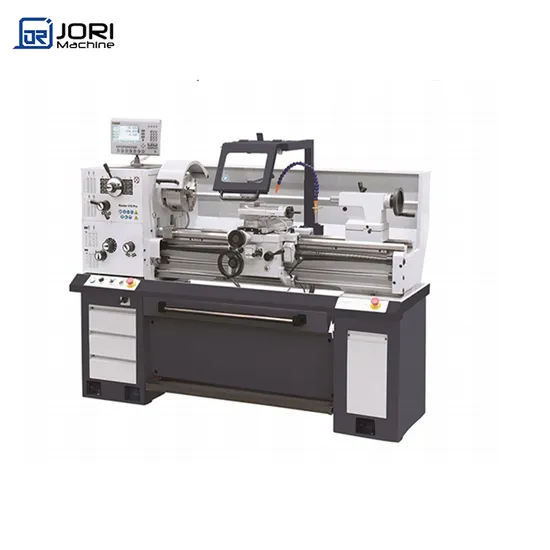

Center Distance 750mm Manual Lathe Machine Horizontal Mini Metal Lathe

Product Description

Manual Lathe Manufacture Price Metal Conventional Lathe MachineConventional lathes produced by the company are divided into two series: light andheavy.CQ6230,CQ6232/CQ6236,CQ6240,
CM6241 as four series of light duty lathesC6241/C6246,C6251/C6256,C6266/C6280,C62100/62110,C62120 series of
heavy duty lathes.

MAIN PARAMETER	Max swing diameter over bed	mm	φ320
	Max swing diameter over cross slide	mm	φ190
	Max workpiece length	mm	750/910/1000
	Spindle center height	mm	250
	Bed guideway width	mm	394
SPINDLE	Spindle motor power	kW	1.5
	Spindle bore	mm	φ38
	Taper of spindle bore		Mt5
	Spindle speed ranges	r/min	75-1400
TAILSTOCK	Diameter of tailstock quill	mm	φ32
	Travel of tailstock quill	mm	100
	Taper of tailstock quill		No.5 MT

---
