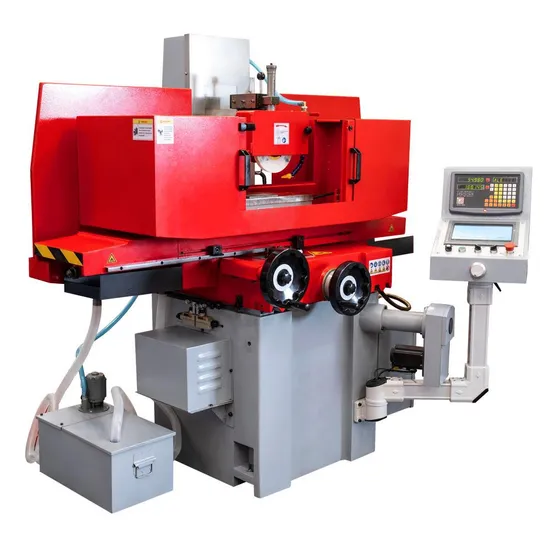

Economical Portable Surface Grinding Machine Price Horizontal Surface Grinder Sp2504

US$1,500.00-10,000.00 1 Piece (MOQ)

Basic Info.

Type
Tool Grinding Machine
Processing Object
Curve
Abrasives
Abrasive Belt
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
CE, RoHS
Condition
New
Model No.
Ug-320h*1000
Color
According to Customers′ Require
Max. Grinding Length of Workpiece
1000mm(O.D)
Max. Workpiece Weight
150kg
Workhead Speed
25-220rpm(50Hz) Stepless
Machine Weight
3700kg
Max. Grinding Diameter of Workpiece
320mm
Internal Grinding Diameter
30-100mm
Wheel Peripheral Velocity
35m/S
Total Power
9kw
Machine Dimensions
3605*1810*1515mm
Transport Package
Wooden Packages
Specification
1
Trademark
DX Blast
Origin
China

Product Description

PRODUCT DESCRIPTION A surface grinder is an outstanding cut-off the instrument for reducing toughened shafting. The material used in surface grinding is 0.25 to 0.50 mm. Surface grinding is best if used for flat cutting. Flat surface cutting is most commonly used surface cutting. The surface grinder is one of the best grinders to be used for this purpose. Grinding is the process of finishing the work piece or the object or we can say it makes the work piece in perfect shape.
Working area
Table dimensions 210 mm x 450 mm
Spindle axis-to-table surface distance 450 mm

Travels
Travel X-axis 480 mm
Travel Y-axis 230 mm
Travel distance per hand-wheel rotation, X-axis 5 mm
Travel distance per hand-wheel rotation, Y-axis 5 mm
Travel distance per hand-wheel rotation, Z-axis 1 mm

Feed
Scale ring division X-axis 0,02 mm
Scale ring division Y-axis 0,02 mm
Scale ring division Z-axis 0,005 mm

Accuracies
Roughness >= 0,63 µm Ra

Drive capacity
Motor rating main drive 1,5 kW

Measures and weights
Grinding wheel dimensions 200 mm x 13 mm x 32 mm
Weight 730 kg
