Wl-21801m High Quality Manual Elastic Staple Fastening System Toy Elastic Staple Fastening Machine

Product Description

WL-21801M High Quality Manual Elastic Staple Fastening System Toy Elastic Staple Fastening machine
Product description:

specifications	M touch version
Model	WL-21801M
Adjustable needle pitch range	10 MM-80 MM
drive mode	Pneumatic, actuated brake
Standard needle length	100 MM
Standard length of thimble	165 MM
The blade configuration	Left/right universal blade
Effective needle length space	120 MM
Needle diameter	2.3 MM
The host weight	3.8 KG
total weight	23.5 KG
Overall dimension (CM)	95*48*60(height * depth * width)
Aluminum frame	80*80 reinforced aluminum bracket
table top	48*60 painted metal working face
Integral parts processing method	Precision machining/stainless steel, aluminum alloy
Machine configuration	Main engine head, aluminum frame, black lacquer worktable, reel bracket

Features:
1.L glue nail machine products are mainly designed for heavier, larger products.
The adjustable needle distance is up to 150 MM, and the effective height of needle is 140 MM,
which improves the compatibility of adhesive nailing machine to the bound products.
2.With high-strength aluminum frame new YIMA environmental protection rubber wire machine adopts 80*80
reinforced aluminum profile, making the rubber wire machine more stable in the process of operation,
reducing unnecessary vibration and shaking to protect the smooth operation system of rubber nail,
thus extending the service life of the machine and spare parts
3. The rubber needle feeding mode is automatic feeding of gear, equipped with high-precision cylinder
components, and the speed can be adjusted at any time.
4. Trigger a change in style.Customers can choose the trigger mode according to the needs of the product.
If the packing of hardware product, suggest user chooses pedal type and pull down trigger type.
Because the packaging of hardware products generally has the clamping base mold, the use of foot mode,
can liberate both hands, to put the product, thereby further improve the packaging efficiency.
5. Manual drive switch, belongs to the general standard machine, suitable for toy packaging.
6. The rubber nail machine is equipped with the rubber pin replacement button, which is safe
and convenient to replace and exit the rubber pin.At the same time there are single and double
needle variable mode, switching simple and fast.
7. The positioning accuracy of rubber nail machine is fast, and the working efficiency is higher and
safer with the help of the machine stamping mold;
8.Strengthen the aluminum bracket and the reinforced base, so that the head of the elastic
napping machine can rotate freely within a 360-degree horizontal range, giving users more
choices and space requirements for the machine.

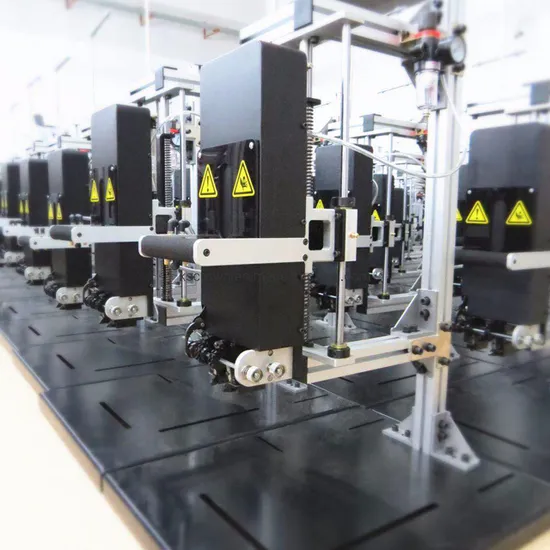

Product show:
Machine processing samples:
Related products:
FAQ:

1.How to order?

Please contact my Email for much more details, you can place order with us directly or through ****** online transcation after confirmation.

2.What's your payment terms?

We accept trade assurance order, T/T,L/C, western union, Paypal etc.

3.How long does the production time?

Generally 3~7 days, if there's customized model or other request will be adjusted.

4.How do you packaged the products?

Small size machine, we will package it in standard neutral carton. Larrge size machine, we will package it in standard wooden cases.

5.What can you provide for us?

Our service We provide: · Best products and factory price. · On-time delivery and the shortest delivery time. · 1year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free and you need to pay for the delivery. · OEM and customized service. · User manuals will go with relative machines. · QC: All products will be checked before delivery. · Compensation: If any unqualified product is found, we'll pay the compensation or send new qualified products to customers · Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance. · Operation Guidance: If you have any problem with operation, please feel free to contact us.

Company information:
Certificate:
Contact:
Pls contact Suzhou Crown-Kittyfor price inquiry or any other questions/doubt.

---
