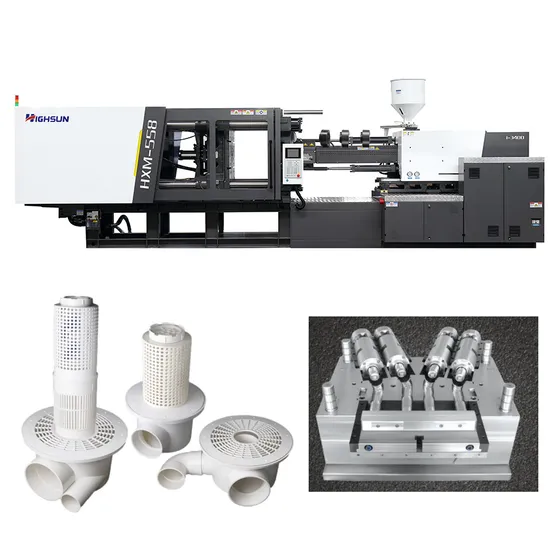

Long Service High Quality Plastic Injection Molding Machine Made of PVC Fittings

Product Description

Specializing in PVC series of injection molding machines 1.Standard with double core pulling device for fitting molds;
2.Air fan cooling equipment on the barrel, PID temperature control system;
3.Special screw and barrel for PVC;
4: Enlarge the charging motor with high torque force and low speed;
5. Extended width of safety door for PVC fitting mold.

MODEL: HXM558PVC
TECHNICAL PARAMETER TABLE
INJECTION UNIT	SCREW DIAMETER	mm	80
	SCREW L/D RATIO	L/D	20
	INJECTION CAPACITY IN THEORY	cm3	1860
	INJECTION WEIGHT(PVC)	g	2296
	INJECTION PRESSURE	MPa	183
	INJECTION RATE	g/s	672
	PLASTICIZING CAPACITY	g/s	87
	SCREW SPEED	rpm	150
CLAMPING UNIT	CLAMPING FORCE	KN	5580
	MOVING MOULD-PLATE STROKE	mm	830
	MAX. MOULD HEIGHT	mm	830
	MIN. MOULD HEIGHT	mm	330
	SPACE BWTWEEN TIE-BARS (W*H)	mm	860*810
	HYDRAULIC EJECTOR FORCE	mm	193
	HYDRAULIC EJECTOR STROKE	KN	230
	EJECTOR NUMBER	n	17
OTHERS	PUMP PRESSURE	MPa	17.5
	MOTOR POWER	KW	30+30
	HEATING CAPACITY	KW	26.45
	MACHINE DIMENSION (L*W*H)	m	8.08*2.07*2.47
	MACHINE WEIGHT	t	19.7
	OIL TANK CAPACITY	L	969

1. Air fan cooling equipment on the barrel,PID temperature control system.

2. Extended width of safety door for PVC Fitting mold.

3. Standard with double core pulling device for Fitting molds.

4. Special screw and barrel for PVC.

5. Enlarge the charging motor with high torque force and low speed.

6. Intelligent control unit, friendly man-machine interface, quick response of system, precise excution of machine.

7. National level 1 energy conservation certification, European servo system, optimized hydraulic system, adopt international famous electric components.

Actual shooting of trial model:
Refernce
Machine: HXM 358PVC Machine: HXM 418PVC Machine: HXM 830PVC
45° WYEE 90° Elbow Plain Tee
Mould: 2 cavities Mould: 2 cavities Mould: 1 cavities
Cycle time: 55s Cycle time: 60s Cycle time: 70s

---
