Advanced Modular Floating Excavator Platform Barge for Construction Applications

Product Description

1,Product Description

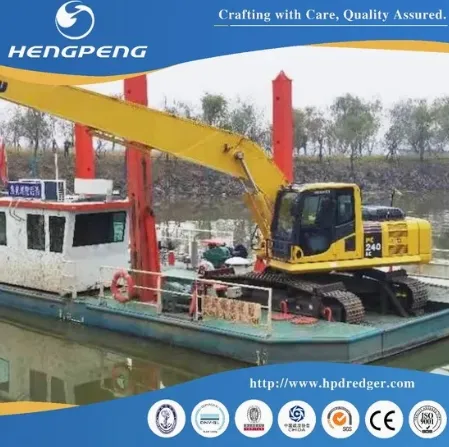

The Hengpeng Modular Pontoon Excavator Transportation Carrier represents a groundbreaking advancement, harmoniously integrating multiple functionalities into a singular, highly versatile platform. This ingenious design excels as an SPUD modular dredger, a dynamic floating working pontoon barge, and a robust excavator platform carrier. Meticulously crafted for dredging operations across diverse environments, including inland rivers, tranquil lakes, and bustling ports, this carrier's split structure offers unparalleled flexibility and smooth mobility. It boasts a user-friendly operation design that seamlessly adapts to various excavators and a wide range of working conditions, ensuring optimal performance consistently.
2,Product parameters

Technical Specifications Details
Model	HP-MPETB 200	HP-MPETB 200 PRO
Product Name	Modular Pontoon Excavator Transportation Carrier Barge
Type	Floating Working Pontoon with Spuds / Modular Design Heavy Equipment Carrier Logistic Barge / Excavator Platform Carrier/ Floating Working Platform/ Spud Platform Project Carrier/ Pontoon Carrier /Pontoon Barge
	learn more about	learn more about
Capacity(Max Pay Load)	200Ton	200Ton--800Ton
Structure	Dismountable, loaded into containers for convenient land transportation,connection is by Bolts at jobsite
Total Length	21M	customized
Hull Width	10M	customized
Hull Depth	1.8M	customized
Dredging Depth	7M	customized
Self-Propeller	Yes
Tonnage
Excavator Model	Caterpilla-r/Komats-u Excavator	can be customized according to different application scenarios and actual transportation needs of customers (Excavator/Crane)
Control system	1 set of Siemens PLC Control System, Full Hydraulic System
Spuds	3,Triangle positioning to maintain the stability of the floating body
Engine	Weichai/Cummin-s	customized
Generator	12KW
Hull Materials	CCS Marine Steel Plate
Application/Mining Object	* to support a excavator safely working on the deck of pontoon in rivers/lakes, conduct backhoe dredging in inland river/lake areas. * for excavator dredging work in water/sand mining dredging to carry or transport Heavy Equipment /Trucks /Steels/Project * for transport Heavy Equipment /Trucks /Steels/Project Cargo/Passenger for short distance transportation from one point to another

3,Features Multi-functional Integration: This product ingeniously integrates various functions, including an SPUD modular dredger, a dynamic floating working pontoon barge, and a robust excavator platform carrier, into a single, highly flexible platform.
High-precision Manufacturing: Built with high-precision manufacturing techniques, it excels in dredging operations across complex environments, such as inland rivers, serene lakes, and bustling ports.
Split-body Structure Design: The unique split-body structure offers unparalleled flexibility, enabling the carrier to adapt effortlessly to various terrains and waterways for obstacle-free movement.
Broad Adaptability: Designed with strong adaptability, it can seamlessly accommodate different types of excavators and cope with a multitude of working conditions, ensuring optimal performance in every operation.
User-friendly Operation: Featuring user-friendly operation, it allows operators to quickly get started and adapt to various working environments, enhancing operational efficiency.
Efficient Performance: Whether in inland waters or coastal ports, this product provides stable and efficient performance, ensuring the smooth progression of dredging operations.
Durability: Manufactured with high-quality materials, it ensures durability and long-term service life, reducing maintenance costs.
4,Hull decomposition
Introducing the Modular Pontoon Excavator Transportation Carrier, a marvel of engineering that boasts a unique dismountable hull design. This cutting-edge feature ensures convenient transport and effortless assembly, making it the perfect choice for streamlined operations. The hull components include:
Main Hull Sections: Crafted from robust CCS marine steel plate, these sections ensure exceptional structural strength and unwavering stability. Spuds: Equipped with three high-performance spuds, this platform guarantees optimal anchoring and steadfast stability during every operation. Pontoons: Ingeniously designed modular pontoons, easily connect and disconnect to suit your operational needs, offering unparalleled flexibility. Deck: Expertly designed to support a wide array of excavators and equipment, providing versatility for various construction tasks. 5,Application scenarios Inland River Dredging:
The carrier can be used for dredging operations in inland rivers to maintain or improve the navigability of waterways. It can remove sediment, debris, and other obstacles from the riverbed, ensuring smooth flow and preventing flooding. Lake and Reservoir Maintenance:
In serene lakes and reservoirs, the carrier can be employed for maintenance dredging to prevent accumulation of sediment and maintain water quality. It can also be used for constructing or maintaining channels, inlets, and outlets for water management purposes. Port and Harbor Development:
In bustling ports and harbors, the carrier plays a crucial role in dredging operations to maintain the depth of waterways and berths. It can handle large volumes of sediment and debris, ensuring that ships can dock and navigate safely. Construction and Civil Engineering Projects:
The carrier can be utilized in construction and civil engineering projects, such as building foundations, bridge piers, and other underwater structures. It provides a stable platform for excavation and construction work in deep water or difficult-to-access areas. Environmental Remediation:
In environmental remediation projects, the carrier can be used for removing pollutants, contaminants, and hazardous materials from water bodies. It can also assist in restoring aquatic ecosystems by removing invasive species or replanting native vegetation. Disaster Relief and Emergency Response:
In the event of natural disasters such as floods or hurricanes, the carrier can be deployed for emergency dredging operations to restore navigability and access to affected areas. It can also be used for clearing debris and obstacles to facilitate rescue and relief efforts. 6,After-sales service Lifetime Technical Support: Enjoy uninterrupted technical guidance and support for the full lifespan of your Advanced Excavator Modular Floating Platform Barge, ensuring optimal performance and peace of mind. 24-Hour Service Response: Experience rapid and efficient responses to any issues or inquiries at any time, day or night, ensuring your operations remain uninterrupted. Comprehensive Documentation: Benefit from meticulously detailed records and dedicated follow-up services, ensuring that all customer needs are thoroughly addressed and satisfied. Customization and Field Support: Avail yourself of bespoke solutions and expert on-site support for seamless assembly and testing, tailored precisely to meet your construction requirements. Warranty: Take advantage of a robust 12-month free warranty and repair service, designed to keep your equipment running smoothly and efficiently. Spare Parts Availability: Ensure the seamless continuity of your operations with a readily available supply of maintenance spare parts, facilitating efficient and timely repairs.

---
