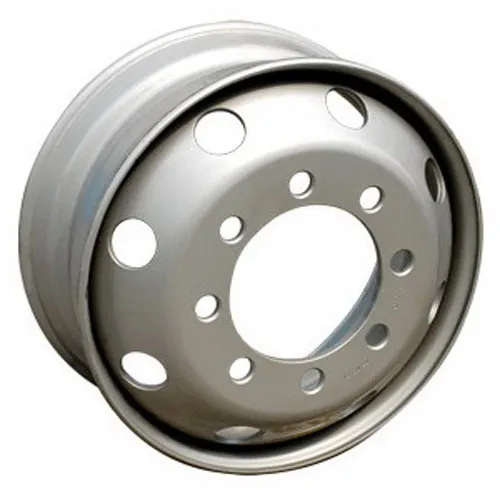

Truck Steel Wheel, Tubeless Steel Wheel 22.5*8.25, 22.5*9.00

US$38.00
20-39 GP
US$37.00
40+ GP

Basic Info.

Model NO.
22.5*8.25, 22.5*9.00
Type
Rim
Drive Wheel
4WD
Wheel Hub Diameter
15′′-24.5′′inch
Finishing
Silver
Wheel Accessories
Wheel Spoke
Spoke Type
Equal Diameter Spoke
Certification
ISO, TUV, DOT, Inmetro
Wheel Hub Brand
Topo,Landstar
Truck Wheel
22.5*8.25,22.5*9.00
Transport Package
Standard Export Package
Specification
Pallet, Tape
Trademark
TOPO, LANDSTAR, OEM
Origin
China
HS Code
87087050
Production Capacity
1, 500, 000PCS

Product Description

Truck Steel Wheel,Tubeless Steel Wheel 22.5*8.25,22.5*9.00
Advantages:
1. Quality with TUV DOT INMETRO2. Direct factory price3. Advanced equipment from Germany and USA4.Delivery time:within 20 days after receiving depositWe can supply wide range sizes of truck wheels, from 17.5x6.00 to 24.5x8.25 with excellently quality. The offset and disc thichness can be changed if required.
We could also mount wheels on tyres and offer demountable wheel rims.Relative steel wheel sizes with excellently quality(DOT, TUV,Inmetro, ISO/TS16949 certification), competitive price and promptly delivery are also available.
TUBELESS STEEL WHEEL
SIZE GAGE WT BOLT HOLE(mm) CENTER HOLE(mm) OFFSET(mm) TYRE SIZE
RIM DISC TYPE P. C. D
17.5X6.00 SERIES 500 pcs -20GP 990pcs-40GP 1100pcs-40HQ
17.5× 6.00 5mm 10mm 23.2kg 6-Φ 21-H Φ 205 Φ 161 127 205/65R17.5 205/75R17.5 215/75R17.5 225/75R17.5 8R17.5 8.5R17.5 9.5R17.5
6-Φ 29-SR22 Φ 205 Φ 161 125
5-Φ 29-SR22 Φ 203.2 Φ 146 128
5-Φ 32-SR22 Φ 203.2 Φ 146 96
8-Φ 26-H Φ 275 Φ 222 134
5-Φ 32-SR22 Φ 208 Φ 150 115
5-Φ 29-SR22 Φ 203.2 Φ 146 115
17.5× 6.00 5mm 12mm 24.6kg 5-Φ 29-H Φ 203.2 Φ 146 108/ 118/127
6-Φ 21-H Φ 205 Φ 161 128
6-Φ 32-SR22 Φ 222.25 Φ 163 125
6-Φ 32-SR22 Φ 222.25 Φ 164 127/135
10-Φ 26-H Φ 225 Φ 176 135/140/124/128
8-Φ 21.5-SR16 Φ 275 Φ 221 135
6-Φ 20.5-SR22 Φ 190 Φ 140 125/ 128
17.5X6.75 SERIES 450 pcs -20GP 990pcs-40GP 1100pcs-40HQ
17.5x6.75 6mm 10mm 24kg 9R17.5 9.5R17.5 10R17.5 245/70R17.5 265/70R17.5 225/75R17.5 235/75R17.5 245/75R17.5
17.5x6.75 6mm 12mm 25.4kg 8-Φ 26-H Φ 275 Φ 221 143
8-Φ 26-H Φ 275 Φ 221 143
8-Φ 27-SR Φ 275 Φ 221 140
6-Φ 32-SR22 Φ 222.25 Φ 163 140
10-Φ 26-H Φ 225 Φ 176 140/ 135/153/133
10-Φ 26-SR18 Φ 225 Φ 176 145
8-Φ 17.5-H Φ 225 Φ 221 142
SIZE GAGE WT BOLT HOLE CENTER HOLE(mm) OFFSET(mm) EQUIPPED WITH TYRE
RIM DISC TYPE(mm) P. C. D(mm)
19.5X6.00 SERIES
19.5× 6.00 5mm 12mm 6-Φ 32-SR22 Φ 222.25 163 135 8R19.5
19.5× 6.00 8-Φ 32-SR22 Φ 275 214 135
19.5X6.75 SERIES 360 pcs -20GP 720pcs-40GP 800pcs-40HQ
19.5x6.75 6mm 10mm 26.7kg 9R19.5 9.5R19.5 245/70R19.5 265/70R19.5
19.5x6.75 6mm 12mm 28.3kg 6-Φ 32-SR22 Φ 222.25 164 135
8-Φ 32-SR22 Φ 275 214 135
10-Φ 26-H Φ 225 176 135
8-Φ 32-SR22 Φ 285 221 144
8-Φ 26-H Φ 275 221 140
19.5X7.5 SERIES 360 pcs -20GP 720pcs-40GP 800pcs-40HQ
19.5x7.5 7mm 10mm 30.9kg 10R19.5 245/70R19.5 265/70R19.5 285/70R19.5
19.5x7.5 7mm 12mm 32.5kg 8-Φ 32-SR22 Φ 275 214 145
8-Φ 27-SR18 Φ 275 221 140
8-Φ 26-H Φ 275 221 140/ 155
10-Φ 26-H Φ 225 176 151
8-Φ 27-SR18 Φ 275 221 157
22.5X6.0 SERIES
22.5x6.00 5mm 14mm 8-Φ 32-SR22 Φ 275 Φ 214 135 8.5R22.5
22.5x6.00 10-Φ 26-H Φ 225 176 135
22.5X6.75 SERIES 360 pcs -20GP 720pcs-40GP 800pcs-40HQ
22.5x6.75 6mm 14mm 8-Φ 32-SR22 Φ 275 Φ 214 140 9R22.5
8-Φ 32-SR22 Φ 285 Φ 221 140
10-Φ 26-H Φ 335 Φ 281 156
10-Φ 26-H Φ 225 176 140
22.5x6.75 7mm 14mm 6-Φ 32-SR22 Φ 222.25 164 140
SIZE GAGE WT BOLT HOLE CENTER HOLE(mm) OFFSET(mm) EQUIPPED WITH TYRE
RIM DISC TYPE(mm) P. C. D(mm)
22.5X7.5 SERIES 320 pcs -20GP 640pcs-40GP 640pcs-40HQ
22.5x7.5 7mm 12mm 39kg 8-Φ 24-H Φ 275 Φ 221 152 10R22.5 11R22.5 275/80R22.5
8-Φ 32-SR22 Φ 275 Φ 214 152
10-Φ 25.4-H Φ 335 Φ 281 160
22.5x7.5 7mm 14mm 41.5kg 8-Φ 32-SR22 Φ 285 Φ 221 165
10-Φ 32-SR22 Φ 285.75 Φ 222 152
10-Φ 26-H Φ 285.75 Φ 220 152 10R22.5
10-Φ 26-H Φ 335 Φ 281 165/ 153
22.5X8.25 SERIES 280 pcs -20GP 560pcs-40GP 620pcs-40HQ
22.5× 8.25 7mm 23kg rim only
22.5× 8.25 7mm 33kg demountable rim; offset 120mm± 1.5; 15° DC
22.5× 8.25 7mm 12mm 41kg 10-Φ 26-H Φ 285.75 Φ 220 170 11R22.5 12R22.5 265/70R22.5 275/70R22.5 275/80R22.5 285/60R22.5 295/60R22.5 295/80R22.5 305/70R22.5
10-Φ 26-H Φ 285.75 Φ 220 170
22.5× 8.25 7mm 14mm 43.5kg 8-Φ 26-H Φ 275 Φ 214 154
10-Φ 27-SR18 Φ 335 Φ 281 169
8-Φ 32-SR22 Φ 275 Φ 214 168
8-Φ 32-SR22 Φ 285 Φ 221 168
8-Φ 32-SR22 Φ 285 Φ 221 168
8-Φ 32-SR22 Φ 285 Φ 221 165
22.5x8.25 7mm 14mm 43.5kg 10-Φ 32-SR22 Φ 285.75 Φ 222 169
10-Φ 32-SR22 Φ 285.75 Φ 221 168
10-Φ 26-H Φ 285.75 Φ 220 168/169
10-Φ 26-H Φ 285.75 Φ 221 169
10-Φ 26-H Φ 335 Φ 281 171/168/169
10-Φ 26-H Φ 335 Φ 281 120
10-Φ 26-H Φ 335 Φ 281 169
10-Φ 26-H Φ 285.75 Φ 220 168
SIZE GAGE WT BOLT HOLE CENTER HOLE(mm) OFFSET(mm) TYRE SIZE
RIM DISC TYPE(mm) P. C. D(mm)
22.5X8.25 7mm 14mm 43.5kg 10-Φ 32-SR22 Φ 285.75 Φ 221 168 11R22.5 12R22.5 265/70R22.5 275/70R22.5 275/80R22.5 285/60R22.5 295/60R22.5 295/80R22.5 305/70R22.5
10-Φ 26-H Φ 335 Φ 281 0
10-Φ 32-SR22 Φ 285.75 Φ 222 0
22.5x8.25 7mm 16mm
22.5× 8.25 8mm 16mm 45.5kg 10-Φ 26-H Φ 285.75 Φ 220 169
10-Φ 26-H Φ 335 Φ 281 169
22.5x8.25 for OTR 7mm 14mm 10-Φ 32-SR22 Φ 285.75 Φ 221 127
22.5X9.00 SERIES 280 pcs -20GP 560pcs-40GP 580pcs-40HQ
22.5× 9.00 For Iran 37.3kg demountable rim; offset 122; 15° DC For Iran
22.5× 9.00 35kg demountable rim; offset 127mm; 15° DC
22.5x9.00 7mm 12mm 42.5kg 10-Φ 26-H Φ 335 Φ 281 120 12R22.5 13R22.5 305/60R22.5 305/70R22.5 315/60R22.5 315/60R22.5 315/70R22.5 315/75R22.5 315/80R22.5 295/60R22.5 295/80R22.5
22.5x9.00 7mm 14mm 45kg 8-Φ 32-SR22 Φ 285 Φ 221 175
10-Φ 27-SR18 Φ 335 Φ 281 175
10-Φ 26-H Φ 335 Φ 281 162/ 175
10-Φ 26-H Φ 335 Φ 281 175
10-Φ 27-SR18 Φ 335 Φ 281 175
10-Φ 26-H Φ 285.75 Φ 220 175/169
10-Φ 27-SR18 Φ 335 Φ 281 0
10-Φ 32-SR22 Φ 285.75 Φ 222 0
10-Φ 26-H Φ 335 Φ 281 0
10-Φ 32-SR22 Φ 285.75 Φ 222 175
10-Φ 26-H Φ 335 Φ 281 120
10-Φ 26-H Φ 335 Φ 281 182
22.5x9.00 7mm 16mm 10-Φ 26-H Φ 335 Φ 281 175
22.5x9.00 8mm 16mm 52kg
22.5X9.75 SERIES 280 pcs -20GP 560pcs-40GP 560pcs-40HQ
22.5 x 9.75 7mm 14mm 48kg 10-Φ 26-H Φ 335 Φ 281 180 13R22.5
SIZE GAGE WT BOLT HOLE CENTER HOLE(mm) OFFSET(mm) TYRE SIZE
RIM DISC TYPE(mm) P. C. D(mm)
22.5X11.75 SERIES 240 pcs -20GP 480pcs-40GP 480pcs-40HQ
11.75x22.5 7mm rim only
22.5× 11.75 7mm 12mm 47.5kg 10-Φ 26-H Φ 335 Φ 281 0 355/50R22.5 365/70R22.5 385/55R22.5 385/65R22.5
22.5× 11.75 7mm 14mm 50kg 10-Φ 26-H Φ 335 Φ 281 0
10-Φ 26-H Φ 335 Φ 281 120
10-Φ 26-H Φ 335 Φ 281 120
10-Φ 26-H Φ 335 Φ 281 135
8-Φ 21.5-SR16 Φ 275 Φ 221 0
8-Φ 32-SR22 Φ 275 Φ 221 0
22.5× 11.75 for EU 7mm 14mm 50kg 10-Φ 26-H Φ 335 Φ 281 0
10-Φ 26-H Φ 335 Φ 281 120
22.5x13.00 200pcs-20GP, 400pcs-40GP, 400pcs-40HQ
13.00x22.5 7mm 12mm 53.0kg 10-Φ 26-H Φ 335 Φ 281 0
24.5X8.25 SERIES 240 pcs -20GP 480pcs-40HQ
24.5× 8.25 demountable rim; offset 120mm; 15° DC
24.5× 8.25 7mm 12mm 45kg 11R24.5 285/75R24.5
24.5× 8.25 7mm 14mm 48.5kg 10-Φ 26-H Φ 285.75 Φ 220 168
10-Φ 26-H Φ 285.75 Φ 220 168
10-Φ 32-H Φ 285.75 Φ 222 168
10-Φ 26-H Φ 335 Φ 281 168
24.5X9.00 SERIES 208 pcs -20GP 416pcs-40HQ
24.5× 9.00 7mm / 47kg demountable rim; offset 127mm; 15° DC 305/75R24.5
7mm 16mm 52kg 10-Φ 26-H Φ 335 Φ 281 175
Remark: rim material: BG 380 disc material: BG 420
