| US$20,000.00 | 1 units (MOQ) |

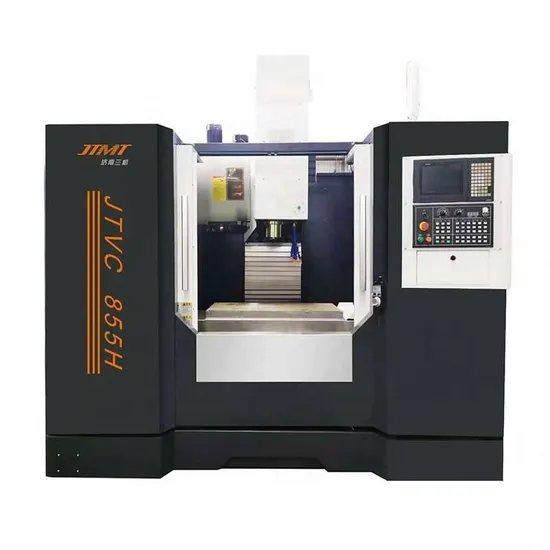

| Machine parameters | Unit | JTVC650L | JTVC855H | JTVC850L | JTVC1160L | JITVC1370L |
| Workbench area (length × Wide) | mm | 900×500 | 1000×550 | 1000×500 | 1200×600 | 1500×700 |
| T-groove (Qty × size × Spacing) | mm | 5×16×80 | 5×18×90 | 5×18×90 | 5×18×100 | 5×18×145 |
| Maximum load of workbenc | kg | 500 | 500 | 500 | 800 | 900 |
| NO.Spindle taper hole NO. | mm | BT40 | BT40 | BT40 | BT40 | BT40 |
| Maximum spindle speed | rpm | 8000 | 8000(optional 12000) | 8000 | 8000(optional 12000) | 8000 (Optional BT50/6000) |
| Spindle motor | kw | 7.5 | 7.5 | 7.5 | 11 | 11/15 |
| X,Y, Z axis travel | mm | 700.600.600 | 800.550.550 | 800.500.500 | 1100.600.600 | 1300.700.700 |
| Distance from spindle head to work table | mm | 120-620 | 120-670 | 120-620 | 120-720 | 140-840 |
| Distance from main shaft to column guide rail surface | mm | 480 | 595 | 570 | 650 | 752 |
| Fast moving speed of X,Y and Z axes | m/min | 24.24.24 | 48.48.48 | 24.24.24 | 36.36.36 | 20.20.20 |
| positioning accuracy | mm | ±0.005/300 | ±0.005/300 | ±0.005/300 | ±0.005/300 | ±0.005/300 |
| Repetitive positioning accuracy | mm | ±0.003 | ±0.003 | ±0.003 | ±0.003 | ±0.003 |
| Magazine capacity | | 16 | 24 | 24 | 24 | 24 |
| Tool change speed | sec. | 7/2.5 | ||||
| Tool magazine form | | disc | ||||
| Air supply pressure | kgf/cm | 6.5 | ||||
| Machine tool profile | mm | 2400×2100×2500 | 2780×2350×280 | 2600×2250×2700 | 3350×2520×2800 | 3770×2800×2800 |
| Machine weight | kg | 4000 | 5500 | 5000 | 7500 | 8200 |
| Power demand | KVN | 15 | 20 | 20 | 28 | 45 |
| CNC system | Mitsubishi,FANUC-0i-MF,Siemens | |||||
