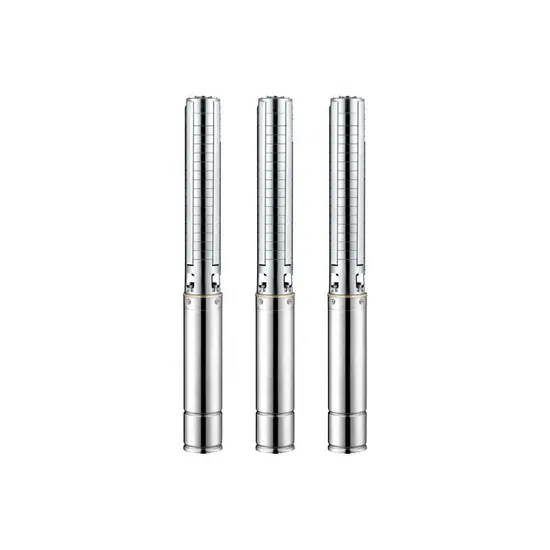

Customized SS304 Booster 0.37kw Three Phase Fountain Pump

Product Description

Company information
Jinhua Dongda Pump Co., Ltd. is a manufacturer of stainless steel deep well pumps in China, offering the most advanced products for safe, reliable, efficient and energy-saving extraction of groundwater. The company was established in 2001 with the aim of adapting to the evolving needs of diverse industries, forging strong and tangible partnerships with clients, and consistently introducing innovative products and services., the company has passed the I S 0 9 0 0 1,I S O 1 4 0 01,I S O 4 5 0 01 and C E certificates, and has set up a water pump manufacturing center, a submersible motor manufacturing center, and a logistics center, which can provide the best products for all kinds of water supply needs. Such as stainless steel deep well pumps, DC solar well submersible pumps, SP all stainless steel fountain pumps and various civil, industrial and agricultural water supply equipment. From the conception of a single innovative solution to rigorous inspection, from selecting the highest quality raw materials to employing cutting-edge production technology, our 23 years of experience accumulation is seamlessly integrated with our daily work passion. This enables us to fully meet the requirements of each product series, ensuring a simple installation process and an extended durability cycle. With convenient and cost-effective maintenance, our products are committed to serving the market with exceptional quality and prompt after-sales service. We warmly welcome customers from at home and aboard to cooperate with us for common success .
Products Details

PUMP MODEL	MOTOR	SIZE [mm]							WEIGHT
	KW	A(220V)]	A(380V)	B(220V)	B(380V) C		E	D	B(220V)| B(380V)		C
4SP2-6	0.37	638		395		281	96	92	8		2.3
4SP2-9	0.37	701		395		344	96	92	8		2.9
4SP2-13	0.55	776	773	386	383	428	96	92	8.86	8.12	3.7
4SP2-18	0.75	906	903	411	408	533	96	92	9.56	9.64	4,7
4SP2-23	1.1	1026	1028	426	428	638	96	92	10.82	10.44	5.7
4SP2-28	1.5	1186	1173	481	468	743	96	92	11 .88	12.3	6.7
4SP2-33	1.5	1291	1 334	481	524	848	96	92	11.88	12.3	7.7
4SP2-40	2.2	1495	1481	538	524	995	96	92	13.96	13.9	9.1
4SP2-48	2.2	1 663	1 649	538	524	1163	96	92		13.9	10.7
4SP2-55	3		1 854		582	1310	96	92		18.8	12

MOTOR PUMP MODEL	MOTOR		DELIVERY (n2850r/ min)								OUTLET DIAMETER
	KW	HP	FLOW m/h	0	0.5	1	1.5	2	2.5	3
4SP2-6	0.37	0.5	HEAD (m)	37	35	34	30	24	20	15	DN32 1"4"
4SP2-9	0.37	0.5		55	51	48	45	36	30	20
4SP2-13	0.55	0.75		80	76	72	64	52	44	31
4SP2-18	0.75	1		110	1 06	99	89	73	66	43
4SP2-23	1.1	1.5		141	1 34	127	114	92	77	56
4SP2-28	1.5	2		171	1 62	1 58	139	112	94	68
4SP2-33	1.5	2		202	1 95	187	163	132	111	87
4SP2-40	2.2	3		245	238	225	198	160	135	99
4SP2-48	_2.2	3		294	278	270	237	192	161	119
4SP2-55	3	4		336	320	308	272	220	185	135

---
