426mm Split Frame No Sparkle Pipe Cutter Beveler for Metal

Product Description

Product Description

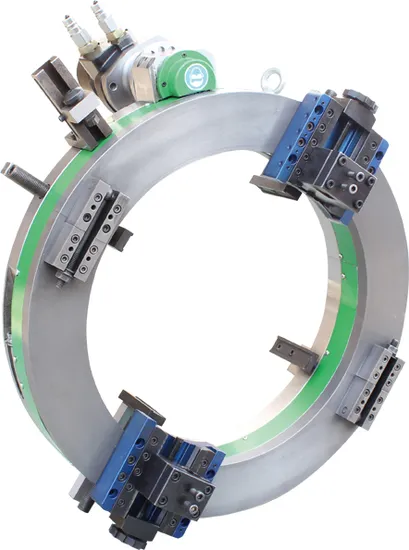

This machine is an external clamp pipe cold cutting and beveling machine. It can open in two halves and be installed on the pipe spindle for processing. It is suitable for pipe cutting, beveling, boring inner holes, flange end face processing, and outer circle processing, etc. The processing bevel angle can be selected at will, and the tool holder can move automatically.
This kind of machine is ideal for all types of pipe cutting, beveling, and end preparation. The split frame design allows the machine to split in half at the frame and mount around the OD of the in-line pipe or fittings for strong, stable clamping. It can be used for vertical, horizontal, and in-wall pipes. The machine performs precision in-line cut or simultaneous cut and bevel, cut or bevel, counterbore, and flange facing operations as well as end preparation on the open-ended pipe.
Product Parameters

Model	Working Range		Wall Thickness		Rotation Speed
	(Outside Diameter)		Standard	Heavy-duty
89	1"-3"	25-89mm	≤30mm	-	42r/min
168	2"-6"	50-168mm	≤30mm	-	18r/min
230	3"-8"	80-230mm	≤30mm	-	15r/min
275	5"-10"	125-275mm	≤30mm	-	14r/min
305	6"-10"	150-305mm	≤30mm	≤110mm	13r/min
325	6"-12"	168-325mm	≤30mm	≤110mm
377	8"-14"	219-377mm	≤30mm	≤110mm	12r/min
426	10"-16"	273-426mm	≤30mm	≤110mm
457	12"-18"	300-457mm	≤30mm	≤110mm
508	14"-20"	355-508mm	≤30mm	≤110mm
560	16"-22"	400-560mm	≤30mm	≤110mm
610	18"-24"	457-610mm	≤30mm	≤110mm	11r/min
630	20"-24"	480-630mm	≤30mm	≤110mm
660	20"-26"	508-660mm	≤30mm	≤110mm
715	22"-28"	560-715mm	≤30mm	≤110mm
762	24"-30"	600-762mm	≤30mm	≤110mm
830	26"-32"	660-830mm	≤30mm	≤110mm	10r/min
914	30"-36"	762-914mm	≤30mm	≤110mm
1066	36"-42"	914-1066mm	≤30mm	≤110mm
1230	42"-48"	1066-1230mm	≤30mm	≤110mm
1430	48"-56"	1230-1430mm	≤30mm	≤110mm	8r/min

Note:We can produce customized machines.
On site

Packaging & Shipping

Company Profile

Henan E-work Industrial Equipment Co., Ltd. is a professional company dedicated to the R&D, production, and sales of piping machines and tools related to pipes.In line with the business tenet of "piping solutions expert" and the mission of "make work easy and efficient", we haveindependently developed and produced a series of products that customers love. Our product series mainly include pipe cutting machines, pipe beveling machines, pipe bending machines, pipe threading machines, HDPE pipe machines and related tools. These products are widely used for stainless pipe, steel pipe, galvanized pipe, mild steel and plastic pipes.Our company not only has a professional and skilled workforce but also has established a complete and complete quality management system. We are committed to providing customers with world-class products and look forward to sincere and friendly cooperation with our customers to have a good business together.

---
