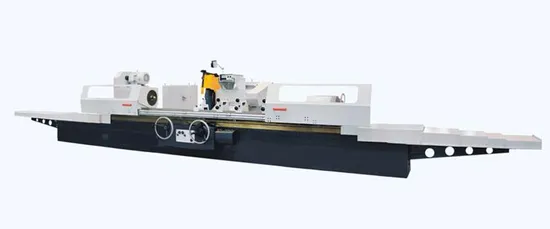

M1350b/M1450b High Cutting Precision Universal Cylindrical Grinding Machine

Product Description

Main functions and features:
1.M1350B cylindrical grinding machine is designed for grinding cylindrical or taper surface of rotational parts. It is highly adaptable for single and small batch production.
2.The table traverse is actuated by hydraulic means at infinitely variable speed or operated by hand.
3.Auto intermittent micro-in feed and rapid approach .withdrawal of the wheelhead can be effected hydraulically ,while rough-fine-feed realized by handwheel.
4.Worktable guideways are hydro statically lubricated.
5.The grinding wheel spindle is supported by three tilting segmented shoes.
6.Workpiece, wheel, hydraulic pump, coolant pump are driven separately by individual motors.
7.Each motion part of machine is controlled by electric,hydraulic, mechanical interlocking mechanism,thus the machine can be operated easily and safety.
Technical Parameters:

Model No.	M1350Bx1500/2000/3000/4000	M1450Bx1500/2000/3000/4000
Item No.
Specifications
Max.dia.to be ground	500 mm	500/200 mm
Max.length to be ground	1500,2000,3000,4000 mm	1500,2000,3000,4000/320 mm
Max.workpiece weight	1000 mm	1000 mm
Wheelsize(O.D.xWxl. D)	Ø750x75x305 mm	Ø500x75x305 mm
Wheel spindle rotation speed	870 r/min	1300 r/min
Center height	270 mm	270 mm
Max.worktable traverse	1500,2000,3000,4000 mm	1500,2000,3000,4000 mm
Max.worktable travelspeed	3 m/min	3 m/min
Wheel peripheral speed	38 m/s	38 m/s
Wheelhead rapid approach and withdrawal travel	100 mm	100 mmm
Automatic intermittent in feed(coarse/fine)	0.02/0.0025 mm	0.02/0.0025 mm
Manual microfeed(coarse/fine)	0.02/0.0025 mm	0.02/0.0025 mm
Hydraulic pump displacement	17.3 L/min	17.3 L/min
Hydraulic pump pressure	6.3 Mpa	6.3 Mpa
Coolant flow	50 L/min	50 L/min
Total motor power	20.63 kw	14.08 kw
Overall dimensions(LxWxH)	(1500)5320x2140x1550mm (2000)6090x2140x1550mm (3000)10240x2140x1550mm (4000)12280x2140x1550mm	5320x2680x1560 mm 6090x2680x1560 mm 10240x2680x1560 mm 12280x2680x1560 mm
Machine weight(net weight)	8400,9700,11200,12800 kg	8600,9900,11350,13100 kw
Roundness	2.5μm	2.5μm
Dia.Uniformity of dia.in longitudinal section	8μm	8μm
Surface roughness	Ra0.32 μm/0.63μm	Ra0.32 μm/0.63μm

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
