French Fries Quick Freezer Chicken Tunnel Quick Freezer

Product Description

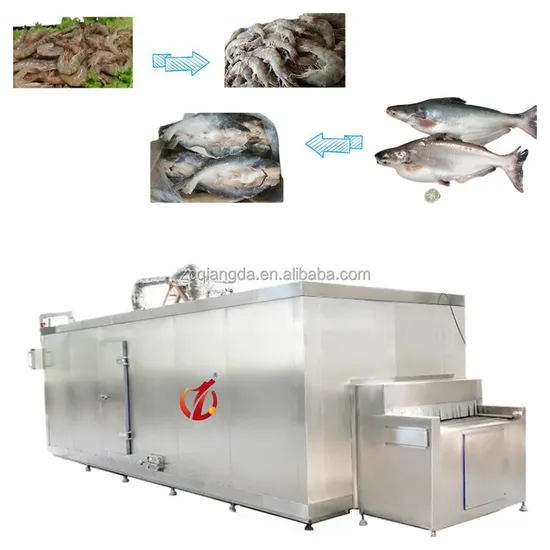

Product Description The tunnel freezer is mainly composed of refrigeration system, propulsion system, electrical control system and quick freezing chamber. The staff will send the plates containing fish and shrimp, dumplings, dumplings and wonton to be frozen into the freezer track through the quick freezing inlet and move towards the outlet. In the process of moving, a stable vertical annular low-temperature air flow is formed under the action of a fan, The low-temperature air flow exchanges heat with the horizontally moving frozen food, so as to realize the rapid cooling and freezing process. Specification

item	value
Applicable Industries	Hotels, Garment Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Food Shop, Food & Beverage Shops
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	New Product 2020
Warranty of core components	1 Year
Core Components	PLC, Engine, Bearing, Gearbox
Condition	New
Type	Tunnel Freezer
Place of Origin	China
	Shandong
Brand Name	Qiangda
Voltage	380V
Power	Depend
Dimension(L*W*H)	Depend
Weight	2000
Warranty	1 Year
Cooling Capacity	500kg/h
Key Selling Points	Easy to Operate
Product name	vegetable fruit and seafood freezing Tunnel quick freezing machine
Material	SUS 304 Stainless Steel
Input temperature	≤20
Output temperature	-18
Freezing time	20-45min
Panel Thickness	120mm
Belt Width	2m
After Warranty Service	Online support, Spare parts and repair service

Details Images The selected thickened pipe has good refrigeration effect Stainless steel mesh belt, the surface smooth, easy to clean. Inverter control to realize infinitely adjustable-speed, frozen time is adjustable. Double layer insulation board, good insulation performance. Wide application range It is suitable for quick freezing processing of fruits, vegetables, seafood, pasta, meat, dairy products and other foods Company Profile Zhucheng Qiangda machinery factory, established on August 18, 2003, is one of the earliest manufacturers of food machinery in Zhucheng. Since its establishment, it has been focusing on the research and development of food machinery. It has a group of excellent R & D talents, skilled staff and pays attention to scientific and technological innovation. It has become one of the leading food machinery manufacturers in China, and has won good reputation and high market share. Zhucheng Qiangda Machinery Factory is an enterprise specializing in the production of food machinery. We can design mechanical production lines for customers according to their specific needs and workshop scale, and provide one-year free warranty and one-year lifelong maintenance service. Our products include: 1. Vacuum packaging machine, air conditioning packaging machine, box packaging machine 2. Sterilization equipment: pasteurizer, high temperature and high pressure sterilizer 3. Fryer (1) small / medium / large capacity continuous frying system. (2) Small / medium / large capacity vacuum fryer. 4. Small / medium / large capacity frozen French fries and potato chips production line (molding machine, batter machine, bread frying machine, etc.) 5. Quick freezing machine (spiral quick freezing machine, double spiral quick freezing machine, tunnel quick freezing machine, fluidization quick freezing machine, liquid nitrogen quick freezing machine) 6. Fruit and vegetable processing line: washer, blanching machine, cooler, air dryer and dryer 7. Meat products processing equipment: sandwich pot, planetary stirring frying pan, high-pressure cooking pot Packing & Delivery

---
