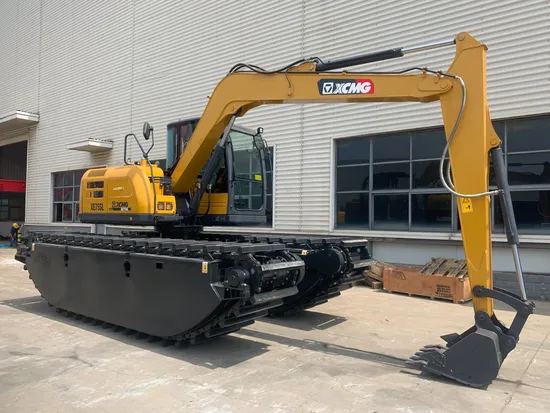

XE75SL Small Amphibious Excavator Tier III Emission Used for River Dredging

Product Description

XE75SL Small Amphibious Excavator Tier III Emission Used for River Dredging

Specification of XE75SL Mini Amphibious Excavator
Model	XE75SL
Operating weight	10600kg
Engine	Kubota V2607
Power(kw/rpm)	42.4/2000
Displacement	2.615L
Cyliners	4
Type	Direct injection, four-stroke, water-cooled, turbocharged
Maximum torque/speed	225.8/1400-1800
Long reach front	6838mm
Bucket capacity	0.25m³
Hydraulic System
Main pump	Piston pump
Main pump rated flow L/min	160
Main safety valve pressure MPa	26.5
Travel system pressure MPa	26.5
Slewing system pressure MPa	18.6
Pilot system pressure MPa	3.5
Fuel tank(L)	130
Hydraulic oil tank(L)	76
Working Range
Maximum digging height	9029mm
Maximum unloading height	7039mm
Maximum digging depth	4983mm
Maximum digging radius	7550mm
Minimum turning radius	1818mm
Pontoon Undercarriage Dimension
Length (mm)	6000
Width (mm)	1000
Height (mm)	1300
Overall machine width (mm)	3000mm

Usage of Small River XE75SL Amphibious Excavator
Small amphibious excavators are primarily used for dredging, land reclamation, swamp and wetland construction, waterway clearing, and environmental restoration projects.
Main Applications of Small Amphibious Excavators
1. Wetland Restoration: Ideal for restoring marshy areas, removing invasive species, and reshaping terrain.
2. Dredging Operations: Efficiently clears sediment from rivers, lakes, and ponds, reaching inaccessible areas.
3. Aquaculture Construction: Essential for building ponds, creating access channels, and installing aquaculture infrastructure.
4. Flood Control: Crucial in managing water levels, clearing debris, and reinforcing embankments during flood events.
5. Environmental Remediation: Safely removes contaminated soil and debris from water bodies in polluted sites.
Modification of Amphibious Excavator
We offer a range of models and brands of amphibious excavators spanning from 5 to 50 tons, along with specialized amphibious undercarriage compatible with excavators within the same weight range. Additionally, if you require modifications for a second-hand excavator, feel free to reach out to us for tailored solutions.

The Advantage of Amphibious Excavator Made by River
1. With over two decades of expertise in river dredging, we've spearheaded numerous construction projects, tailoring our products closely to user requirements.
2. We sell surpass 300 units of amphibious excavators per year, earning us the trust of a growing clientele and accolades from Everbright customers, validating our market prowess.
3. As an accredited supplier for renowned excavator manufacturers, our product standards surpass industry benchmarks, setting us apart from competitors.
4. By meticulously overseeing the sourcing of raw materials, we ensure that each piece of equipment undergoes rigorous quality control, guaranteeing optimal performance upon leaving our factory.
The Key Components for Making Amphibious Undercarriage
Jiangsu River heavy Industry Co., Ltd. is one of Chinese earliest companies that devoted to design and produce of river dredging equipment. With many years business experience ahead the amphibious excavator industry. We have our own R & D, production, sales and engineering teams. We have many years of construction experience in river dredging, environmental development, pipeline construction, our goal is to continuously earn complete customer satisfaction by supplying top quality, defect-free product on time, and to be the leading solution provider of amphibious excavator and dredging equipment with continuous improvement and well maintenance backup services. Our trusted customer covers more than 50 cities all over China, as well as overseas clients in Poland, Russia, Africa, Indonesia and other countries.

How To Transport The Amphibious Excavator?
When it comes to transporting amphibious excavators, their substantial size and volume present unique challenges. To address this, our approach involves meticulously disassembling the larger components of the machinery for transport. These parts, including the amphibious excavator's upper body, pontoon undercarriage, long reach boom, buckets, and hydraulic spud/positioning piles, are then securely packed into containers or frame cabinets. This method not only ensures the convenience of transport but also guarantees the safety and integrity of the equipment throughout the journey.

---
