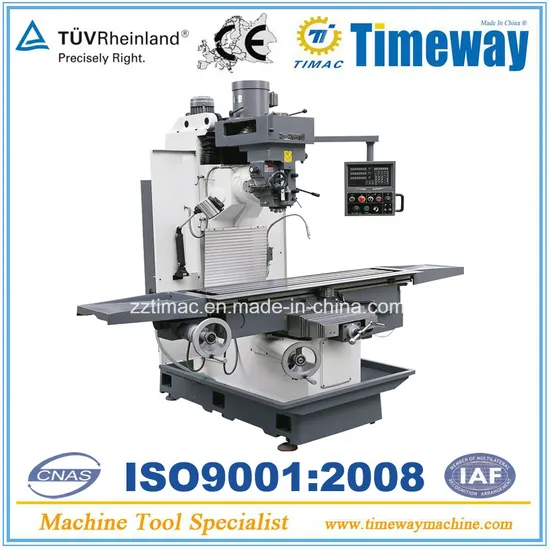

Bed Type Vertical Milling Machine with Table 1525X320mm Mill

Product Description

Bed Type Milling Machine BM713

1.Table Size:320 x 1525mm
2.Spindle speed:70-3620 r.p.m(10 steps)
3.CE norms

Standard accessories:
Milling chuck, Spindle arbor, Sleeve, Drilling chuck, Draw bar, Ring spanner,
Inner hexagon spanner, Work light, Coolant system, Operation Manual(English edition).

Optional accessories:
3 axes digital readout system(DRO), Machine vice, Universal dividing head,
Rotary worktable, Spindle guard, 58pcs clamping kits, ect.

Specification	Unit	BM713
Table size	mm	1525x320
T-slot number x width x pitch	no	3 x 14 x 80
Max. load of table	kg	600
Longitudinal travel - X axis	mm	1050
Cross travel - Y axis	mm	470
Vertical travel - Z axis	mm	500
MAIN SPINDLE :
Spindle taper		ISO40
Spindle quill travel	mm	127
spindle speed /step	rpm	70-3620/10
Distance between spindle axis to column surface	mm	450
Distance between spindle nose to table surface	mm	70-570
FEEDS :
Longitudinal/cross feed range	mm / min	X: 20-1200(variable) Y: Manual
Vertical feed	mm / min	1200
Longitudinal/cross rapid feed	mm / min	X: 1200 Y: Manual
Traverse rapid feed	mm / min	1200
POWER :
Main motor	kw	3.7
Feed motor	kw	0.4
Elevating motor for headstock	Kw	0.37
Coolant motor	kw	0.04
OTHERS :
Overall dimension	mm	2565x1920x2290
Package dimension	mm	2010x1900x2250
N.W / G.W	kg	2500 / 2700

Our Advantages
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Packaging & Shipping
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
Customer visited
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
The following is one of the most satisfactory products recommended by customers, as well as our main product categories. you can click and view

Conventional Lathe	CNC Lathe	CNC Machining Center	CNC Milling Machine
Grinding Machine	Milling Machine	Special Use Lathe	Boring Machine

FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

---
