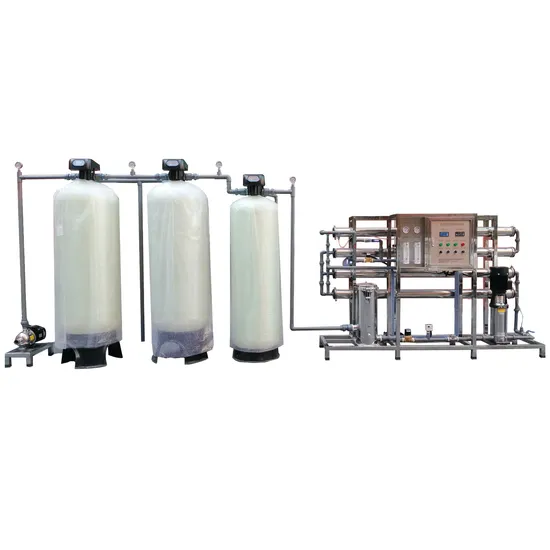

2000L/H Reverse Osmosis System Demineralized Water Purification Machine Water Treatment

Product Description

2000L/H Reverse Osmosis System Demineralized Water Purification Machine Water Treatment 1. Product description: reverse osmosis process uses semi permeable spiral wound membranes to separate and remove dissolved solids, organic, pyrogens, sub micron colloidal matter and bacteria from water. Water permeates the minute pores of the membrane and is delivered as purified water. Impurities in the water are concentrated in the reject stream and flushed to drain. Reverse osmosis is capable of removing 97-99% of total dissolved solids (TDS), 99% of organic, including pyrogens, and 99% of all bacteria in the feed water.
2. Technological process raw water+ raw water tank+ raw water pump+ sand filter+ carbon filter+softener (optional)+ security filter+ high pressure pump+ reverse osmosis system+ pure water tank+ UV sterilizer (ozone generator) +precision filter + water supply points
3. Application:
Feed water(source water):
city water, river water, lake water, underground water(borehole, well), brackish water, sea water......
Treated water:
1. Electronic industry: Pre-filter for ultra pure water, chemical products and pure water
2. Food and beverage industry: filter for mineral water, wines and fruit juice
3. Medicine industry: filter for drug liquid, gases
4. Chemical industry: filter for organic solvent
5. Petroleum industry: filter for oil-field flooding
4. Parameter:

Model No.	Capacity (M3/H)	Power (kw)	Recovery Rate (%)	Total land area LX W X H (mm)
RO-250	0.25	1.5	50	2500X1000X2800
RO-500	0.5	1.5	50	2500X1000X2800
RO-1000	1	2	50	3500X1200X2800
RO-2000	2	4	50-60	6500X1500x2800
RO-3000	3	4.5	55-65	7500X1500X2800
RO-4000	4	6.5	55-65	7500X1500X2800
RO-5000	5	11	60-70	10000X2500X3500
RO-6000	6	11	60-70	10000X2500X3500
RO-8000	8	18	60-70	10000X3500X3500
RO-10000	10	20	60-70	10000X4000X3800
RO-20000	20	30	70-75	15000X5000X5000
RO-30000	30	40	70-75	20000X6000X5000
RO-50000	50	50	70-75	30000X8000X5000

5. Features
1. Automatic backwash and manual backwash
2. Automatic switch on when low water level, and switch off when high water level
3. Water shortage protection for multi-stage pump
4. Protection when no voltage, under-voltage, over-current, short circuit and creepage
5. Full stainless steel structure, durable and easy to clean.
6. Integrating water flow indicator, conductivity indicator, pressure indicator, control panel
7. China Top Brand or world famous brand electrical, switch and valve systems
8. Core components of RO system are imported, USA Filmtec Dow membranes
9. Run and produce water continuously, high degree automation
6. Function
Quartz sand filter: fill quarts sand inside, it can filter big particles impurities, suspended substances, colloids etc.
Activated carbon filter: fill activated carbon inside, to remove color, odor, residual chlorine and organics substances.
Security filter: fill PP filter cartridge inside, prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um.
RO membrane: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.
UV sterilizer: for killing bacterial in water, be safe for drinking.
CIP system: its help to cleaning the RO membrane, so that it can be have long life span^^
Company Information

Our Services

After-sale service

• We are the water treatment machine manufacturer in China.look forward to your arrival and we will lead you to visit our factory.

• Find our products through kaiyuan-water.en.made-in-china.com ******,Made in China etc.

• One year warranty for the whole system.

• After one year , we can help you to maintain the machine and the accessories are provided only one the cost price.

• Track the order until you get the goods.

• We value every inquiry sent to us, ensure quick competitive offer.

• Update you latest price any time.

If you scaned our information and showed interest,please feel free to contact me now!

Welcome to Kaiyuan Water!

Packaging & Shipping
Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)

---
