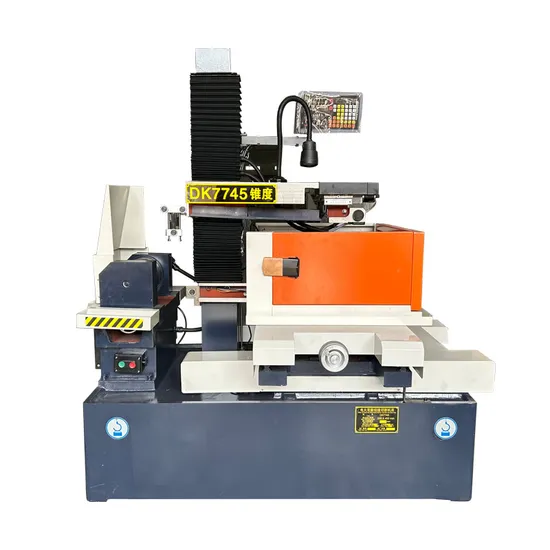

Durable EDM Wire Cutting Machine with 1-Year Motor and Pump Warranty

Product Description

Product model	DK7720	DK7735	DK7745F	DK7745	DK7750
Worktable stroke (mm)	420*270	710*480	920*540	810*570	950*650
Table travel (mm)	200*250	350*450	450*700	450*550	500*630
Machining height (mm)	200	480	480	480	600
Machining taper (mm)	6°,15°,30°/80
Cutting speed (m/min)	≥120
Surface roughness/finish(um)	≤2.5
Electrode wire diameter (mm)	0.1-0.2
Electrode wire fixed line speed (m/s)	11.5
Processing accuracy	According to GB7926-2005 standard≤0.02mm
Table movement pulse equivalent (mm)	0.001
Power supply	50Hz.380V
Machine tool power consumption (KVA)	<1.0
Workpiece weight (KG)	100	300	450	450	700
Main machine external dimensions (mm)	1160*810*1300	1240*1170*1400	1700*1600*1600	1600*1240*1400	1720*1680*1700

Product model	DK7750F	DK7763	DK7763F	DK7780	DK77100
Worktable stroke (mm)	1140*650	1140*750	1350*750	1350*985	1700*1170
Table travel (mm)	500*800	630*800	630*1000	800*1000	1000*1200
Machining height (mm)	400/600	600	600/800	600	1000
Machining taper (mm)	6°,15°,30°/80
Cutting speed (m/min)	≥120
Surface roughness/finish(um)	≤2.5
Electrode wire diameter (mm)	0.1-0.2
Electrode wire fixed line speed (m/s)	11.5
Processing accuracy	According to GB7926-2005 standard≤0.02mm
Table movement pulse equivalent (mm)	0.001
Power supply	50Hz.380V
Machine tool power consumption (KVA)	<1.0
Workpiece weight (KG)	700	1000	1000	2000	2600
Main machine external dimensions (mm)	2000*1900*1700	2100*1940*1780	2300*2200*1800	2600*2400*1800	3000*2800*2500

Discover Our Company Profile
Jiangsu Sanlin Technology Equipment Co., Ltd. Jiangsu Sanlin Technology Equipment Co., Ltd. proudly stands as a vanguard among high-tech enterprises, seamlessly blending production, research, development, and the sale of state-of-the-art CNC machinery and equipment. With decades of expertise in the equipment industry, we excel in delivering top-tier solutions. Our diverse portfolio includes vertical machining centers, high-speed machines, gantry machining centers, drilling and tapping centers, engraving and milling machines, gantry engraving and milling machines, medium wire cutting machines, fast wire cutting machines, small hole machines, sanding machines, and so much more. Known for our unwavering quality and exquisite craftsmanship, we have garnered admiration and accolades from clients worldwide. Our equipment is integral to pioneering industries such as automotive, aerospace, national defense, medical food machinery, rail transit, and metal mold manufacturing. While our products are cherished across the nation, they have also gained a strong foothold in Southeast Asia, Europe, Africa, and beyond. At Sanlin, our commitment to perpetual improvement and delivering exceptional products remains steadfast. We warmly invite customers and partners to explore collaborative opportunities!
Frequently Asked Questions
A: Absolutely, we are the manufacturer, and we warmly welcome you to visit our cutting-edge factory to see our operations firsthand. A: To select the perfect machine for your needs, consider the worktable travel and cutting thickness in relation to the size of your workpiece for an ideal match. Additionally, ensure that the precision and surface finish align with your requirements. (Our TRS series machines boast superior precision and exceptional finish quality.) A: Yes, we can accommodate your voltage needs. Please specify the voltage you require, and we will adjust accordingly. A: We offer complimentary replacement of damaged parts during the warranty period. Post-warranty, replacements are available at cost price. Should any issues arise, we are committed to providing prompt solutions through video demonstrations or alternative methods.Q: Are you a manufacturer or distributor? Q: How do I select the ideal machine for my needs? Q: Our country's voltage is three-phase 220V (or single-phase 220V, or another voltage). The machine's voltage is three-phase 380V. Can you adjust the voltage for us? Q: What can I expect in terms of after-sales service?

---
