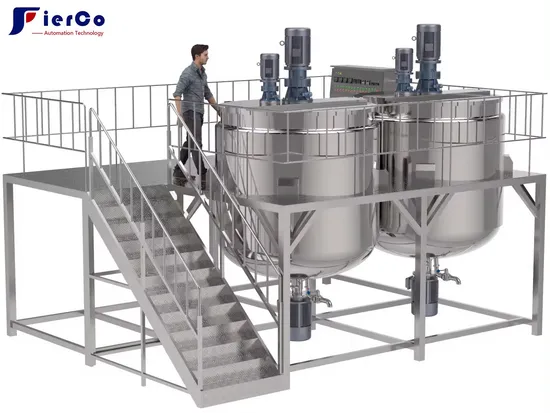

Vertical Liquid Paint Stainless Steel Platform Blender Mixing Tank

Product Description

FierCo mixing tanks are a containers used for mixing, stirring, and storing liquid or solid materials. It usually consists of a cylindrical container and a stirring device. The mixing tank can stir and mix the materials through the stirring device to achieve the purpose of uniform dispersion, dissolution, reaction, or mixing.
Mixing tanks usually have corrosion resistance and sealing properties to adapt to the characteristics of different materials and process requirements. The mixing device of the mixing tank can be different types of mixers, such as paddle type, anchor type, spiral type, etc. The appropriate mixing method is selected according to the characteristics of the material and the mixing requirements.

Product details
The agitator, mixing speed rpm, and impeller type can be customized according to customers' requests. Such as:
1)Anchor with scrapers
2)Frame with scrapers
3)Dispenser(single/double/three layers)
4)Triple impeller(double/three layers)
5)Turbine disk
6)Pitched paddles
6)Ribbon mixer
7)Top entry high shear emulsifier
8)Bottom entry high shear emulsifier
9)Anchor+ Dispenser
10)Anchor+ Top emulsifier
11)Anchor+ Bottom emulsifier
12)Anchor+ Emulsifier+Dispenser
13)Anchor+ Emulsifier+Pitched paddles
(one-direction/Coaxial double-direction)
Real shot photos
Product Parameters

Model	Effective volume(L)	Total volume(L)	Tank dimensions (Φ*H mm)
FM-50	50	86	Φ400*500
FM-100	100	160	Φ500*600
FM-200	200	270	Φ600*700
FM-300	300	420	Φ700*800
FM-500	500	660	Φ900*1000
FM-1000	1000	1240	Φ1000*1200

Application Mixing tanks are widely used in chemical, pharmaceutical, food, beverage and other industries. It is used in mixing, stirring, dissolving, reaction, and other processes. The mixing tank can thoroughly mix different ingredients to ensure the uniformity and stability of the product. It improves production efficiency while also improving product quality and consistency.
Company Profile
After Sales Service Installation, debugging, and training: We dispatch an experienced technical team to your site to ensure that the mixing tank is installed and debugged correctly. We also provide professional training so that your operators can master operating techniques and safety precautions.
Regular maintenance: We recommend regular maintenance on your mixing tank to ensure its long-term stable operation. Our maintenance team will contact you regularly to develop a maintenance plan and perform necessary inspections, cleaning, and replacement of parts to extend the life of your mixing tank.
Quick response and troubleshooting: If you encounter any problems or failures during use, no need to worry! Our customer support team is on standby to respond quickly to your requests and provide professional troubleshooting and solutions to ensure your production is not affected.
Spare parts supply: We provide original spare parts supply to ensure that you can obtain high-quality parts promptly. Our spare parts inventory is comprehensive and sufficient to meet your needs and reduce downtime caused by parts unavailability.
Remote support: Through remote monitoring and remote assistance tools, our technical experts can remotely diagnose and solve many common problems, saving you time and costs, and quickly returning to production.
FAQ Question: How to choose the capacity and size of the mixing tank?
Answer: When selecting the capacity and size of the mixing tank, you need to consider factors such as product production needs, process requirements, and production scale.
Question: What is the mixing method of the mixing tank?
Answer: The mixing method of the mixing tank can be selected according to product characteristics and process requirements. Common mixing methods include mechanical mixing, turbine mixing, anchor mixing, etc.
Question: What are the material options for mixing tanks?
Answer: The material selection of the mixing tank needs to be determined according to the nature of the product and process requirements. Common materials include stainless steel, fiberglass, carbon steel, etc.
Question: How is the cleaning and maintenance of the mixing tank performed?
Answer: To keep your mixing tank operating properly, regular cleaning, lubrication, and parts inspection are required. At the same time, worn parts should be replaced in time according to usage conditions to ensure the normal operation of the equipment and extend its service life.
Question: Do you provide after-sales service and technical support?
Answer: Yes, we provide comprehensive after-sales service and technical support. Including equipment installation and commissioning, operation training, maintenance and parts supply, etc.

---
