Product Details
Product Description
Product Description
PRODUCTS DESCRIPTION

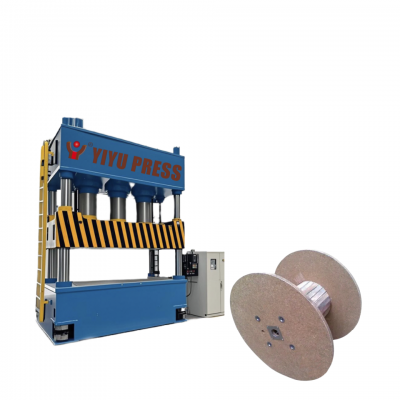

The wooden pallet molding machine is a special equipment for the efficient production of wooden pallets. It mainly uses the molding technology to mix wood materials such as sawdust, wood fiber, shavings, etc. with environmentally friendly adhesives, and then presses them under high pressure and high temperature to form them. This equipment is widely used in logistics, ware housing, packaging and other industries. It can replace traditional solid wood pallets and has the advantages of low cost, high strength and environmental protection. Compared with traditional wooden pallets, molded wooden pallets adopt a high temperature and high pressure one-time molding process, which has the advantages of uniform structure, strong load-bearing capacity, and not easy to crack and deform. Its surface is smooth and burr-free, with better moisture and corrosion resistance, and no need for nail reinforcement to avoid the risk of loosening. At the same time, standardized production is more suitable for automated warehousing and handling, and the overall cost is lower.
PRODUCT PARAMENTERS
| 1250T | 1600T |
| Master cylinder nominal force(KN) | 12500 | 16000 |
| Maximum working pressure of liquid (MPa) | 25 | 25 |
| Cylinder stroke(mm) | 700 | 700 |
| Maximum opening height(mm) | 1250 | 1200 |
| Nominal force of lower cylinder（KN） | 400 | 400 |
| Lower cylinder stroke(mm) | 200 | 200 |
| Master cylinder slider speed No-load downlink (mm/s) | 160 | 180 |
| Workbench effective area Left and right (inside the column)(mm) | 1700 | 1800 |
Servo motor power (KW)
| 45 | 55 |
DIVERSIFIED MATERIALS
Raw materials consist of two major categories: wood-based and non-wood materials. Wood materials include virgin timber (hardwoods like oak/maple, softwoods like pine/cedar, eucalyptus), wood processing residues (sawdust, wood powder, bark), and fast-growing plantation timber (poplar, paulownia). Non-wood materials involve bamboo resources (fiber, bamboo powder), agricultural waste (wheat/rice straw, coconut husk, bagasse), industrial byproducts (rice husk, palm empty fruit bunches), and other plant fibers (sisal, banana stems). Utilizing eco-friendly compression molding technology, these renewable resources achieve effective recycling while meeting diverse load-bearing requirements.
CORE FUNCTIONS AND FEATURS
Efficient production: Rapid pressing is achieved through automated control systems, shortening production cycles and increasing production capacity.
Environmental protection and energy saving: Renewable wood waste is used as raw materials to reduce waste of wood resources; the heating system is optimized to reduce energy consumption.
Stable structure: precise mold design, uniform product size, strong pallet bearing capacity, and adaptable to various cargo transportation needs.
Convenient operation: integrated human-machine interface, intuitive parameter adjustment, and support for customized production of pallets of different specifications.
PRODUCTION LINE
1. Raw material pretreatment: logs or wood waste are processed into uniform wood chips by chippers, and then crushed into fine fibers or sawdust. 2. Drying stage: industrial drying equipment is used to remove moisture from wood fibers. 3. Pneumatic conveying: dried wood fibers are transported to storage silos through a negative pressure system. 4. Mixing adhesive: dry fibers are evenly mixed with adhesive in a special mixing device.
5. High temperature and high pressure molding: The mixture is transferred to the molding machine and compressed at high temperature (150-200℃) and high pressure (200-300 tons). 6. Final shaping: The hot pressing process forms a high-strength core plug structure with consistent density and stable dimensions, which can be directly used for industrial coil protection.
product packaging
our factory
The factory covers an area of 6,000 square meters and has a full set of advanced molded pallet production lines. It is a high-quality provider of molded pallet overall solutions. The company's pallets are diverse in style and leading in quality. It can design and develop exclusive styles of molded pallets and production molds for customers' products. We practice the development and management concept of linkage between pallets and production equipment, continuously optimize production processes and equipment performance, tailor a full set of molded pallet production lines for customers, and become a leader in the molded industry integrating R&D, production and sales.
FAQ
Q1: What are the main materials of molded wood cable reels?
A1: Molded wood cable reels are usually made of environmentally friendly wood chips, fiberboard or recycled wood fibers, and are made through high temperature and high pressure molding process. The surface can be treated with moisture-proof or fire-proof treatment according to needs.
Q2: What is the load-bearing capacity of this cable reel?
A2: It depends on the thickness of the reel, the structural design and the use environment. Customized specifications can support higher loads.
Q3: Is the molded wood cable reel environmentally friendly?
A3: Yes, the raw materials are mostly renewable resources, the production process is less polluting, and some products can be recycled, which meets green environmental protection standards.
Q4: Can the size be customized or special functions be added?
A4: Customized size, color and function (such as anti-slip layer, lifting hole, label slot, etc.) are supported, and specific needs need to be communicated with the supplier.
Q5: What are the advantages compared with solid wood cable reels?
A5: Molded wood cable reels have lower cost, lighter weight, high dimensional.
>>
