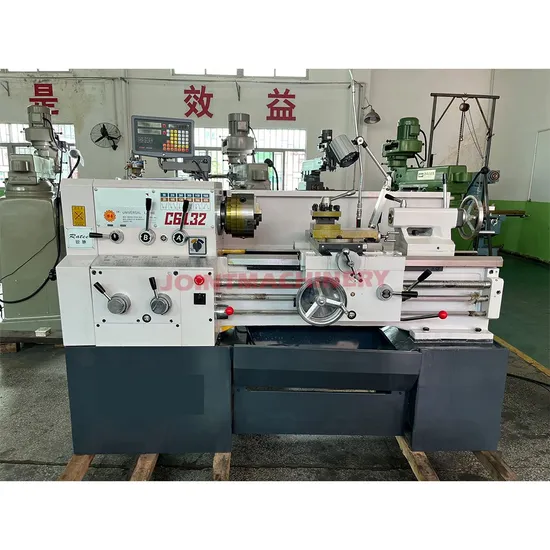

China Factory Cheap Conventional Manual Lathe Machine C6132D for Sale

Product Description

√ The hardness of machine guide way is in above HRC52°, use high precision cnc guide way grinding machine machining, high durability for guide way, good precision for body machining.
√ Lathe head box, feed box, sliding box use cnc machine center machining, ensure machining precision of box.
√ Transmission gear usd cnc gear grinding machining, and noise test, low gear noise.

1. Quenched Guideway Quenched guide rail, high hardness,wear resistance.

2. Tool Post Standard with 4 position tool post, quick change tool post is optional.
3. Three-Jaw Chuck Standard with 3 jaw manual chuck, can choose 4 jaw chuck as optional.
4. Tailstock Standard with manual tailstock, especially suitable for shaft bar workpieces.
5. Working Light Equipped with working light for easy operation.
Horizontal Metal Cutting Precision Engine Lathe Machine Manual Lathe Machine

Model			C6132D
Max swing over bed		mm	350
Max work piece length		mm	750/1000/1500
Bed rail width		mm	320
Max turning diameter of work piece on tool holder		mm	190
Maximum longitudinal travel of tool rest		mm	630,880, 1380
Maximum transverse travel of tool rest		mm	220
Bar diameter		mm	45
Maximum turning diameter of workpiece in saddle groove		mm	520
Valid length of gap		mm	200
Spindle center height		mm	175
Spindle head connection			C6
Through hole diameter of spindle		mm	46
Taper of spindle inner hole			MT6
Spindle rotation speed		r/min	25-1600
Taper of inner hole of top sleeve			MT4
Maximum movement in tip sleeve		mm	130
Maximum lateral movement		mm	±10
Thread	Inch system		80-33/4N/1"
	Metric system		0.45-20mm/r
	Module		0.25-10mm
	Diameter pitch		160-31/2DP
Motor specification			YD132M-8/4-B5 3-4.5KW
Belt specification			4-A-1900mm/4-A-2000mm
Dimension (L*W*H)	750mm	mm	1950*950*1200
	1000mm	mm	2200*950*1200
	1500mm	mm	2700*950*1200
Nei weight	750mm	kg	1350
	1000mm	kg	1450
	1500mm	kg	1550

Shenzhen Joint Machinery Co., Ltd. Is a professional manufacturer and exporter of CNC lathe machine, CNC deep hole drilling machines, and Swiss-type automatic lathes, milling machine, grinding machine, etc. We are committed to providing high-quality machines and excellent service to our global customers. We prioritize the control and improvement of machine quality to ensure that our products meet the highest industry standards. Our machines incorporate core technologies from Taiwan and Germany, combined with state-of-the-art production equipment and processes, to deliver superior product quality and reliability. Our machines are known for their outstanding performance in terms of precision, stability, and dependability, capable of meeting various complex and high-demand machining requirements. Our products are exported to countries worldwide and have gained wide recognition and popularity among customers. Our market presence covers Asia, Europe, South America, North America, and more. We have established long-term partnerships with customers from various countries and regions, creating significant business value together.

Q1: Are you trading company or manufacturer?A1: We are factory.Q2: What is your terms of payments?A2: 30% as deposit, 70% should be paid before delivery.
Q3: How can I choose the most suitable machines?A3: Please tell us your requirements of the machines, or you could send us the products drawing, our engineer can help to choose suitable model for you.Q4: What is the package? Is it suitable for shipment?A4: Machine will be packed by exporting standard package, water proof and anti-rust. It is very much strong for oversea transportation.Q5: How long is the warranty for machines?A5: Warranty time is 12 months. We will supply the repair parts in this warranty time. The charge of repair parts will be free due to its quality problemin this guarantee.

---
