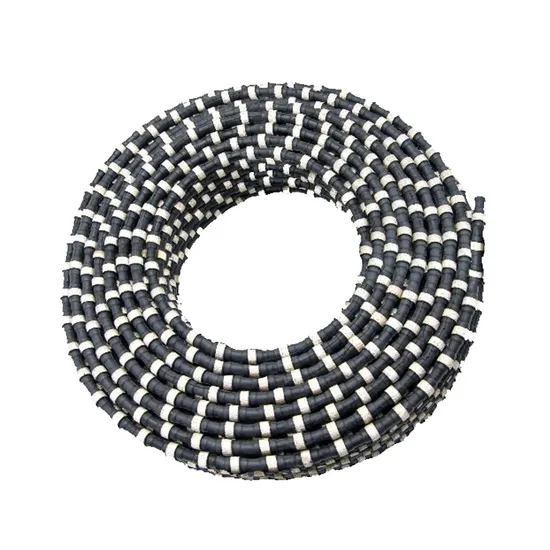

Diamond Wire Rope for Reinforce Concrete Cutting

Product Description

Diamond Wire Rope for Reinforce Concrete Cutting
Diamond Wire / diamond wire saw/ wire saw For Marble Block Squaring /cutting

Bead dia. (mm)	Model	Fixed by	Beads /m	Remark	Cutting material	Line speed(m/s)	Efficiency (m2/h)	Life time(m2/m)
Φ11	BLGQ	High Performance Rubber	40	Sintered beads	Soft granite	22-28	4-8	10-20
					Mid-hard granite	20-24	2-5	7-15
Φ11.5	BLGQ				Hard granite	18-22	1-3	5-8
					High abrasiveness	26-30	4-8	8-15

Diamond wire for granite block squaring

Bead dia.(mm)	Model	Fixed by	Beads /m	Remark	Cutting material	Line speed(m/s)	Efficiency (cm/h)	Life time(m2/m)
Φ9	BLGS	Plastic	37	Sintered beads	Soft granite	24-28	50-100	10-20
Φ10.5					Mid-hard granite	20-24	30-60	7-15
Φ11	BLGS	High- performance Rubber	40		Hard granite	18-22	20-45	5-8
					High abrasiveness	22-26	50-100	8-15

Diamond wire for granite profiling

Bead dia. (mm)	Model	Fixed by	Beads /m	Remark	Cutting material	Line speed(m/s)	Efficiency (cm/h)	Life time(m2/m)
Φ8.5	BLGP	Plastic	37	Sintered beads	Soft granite	22-28	60-80	9-15
					Mid-hard granite	20-26	30-60	7-12
Φ9	BLGP				Hard granite	18-24	20-35	4-9
					High abrasiveness	20-28	60-80	9-12

Diamond wire for granite slab cutting

Bead dia. (mm)	Model	Fixed by	Beads /m	Remark	Cutting material	Line speed(m/s)	Efficiency (m2/h)	Life time(m2/m)
Φ7.3	BLGST	High Strength Plastic	37	Sintered beads	Soft granite	25-30	20-30	12-15
					Mid-hard granite	20-40	20-25	8-12
Φ8.5	BLGST
					Hard granite	18-22	15-20	5-8
Φ8.7	BLGST

---
