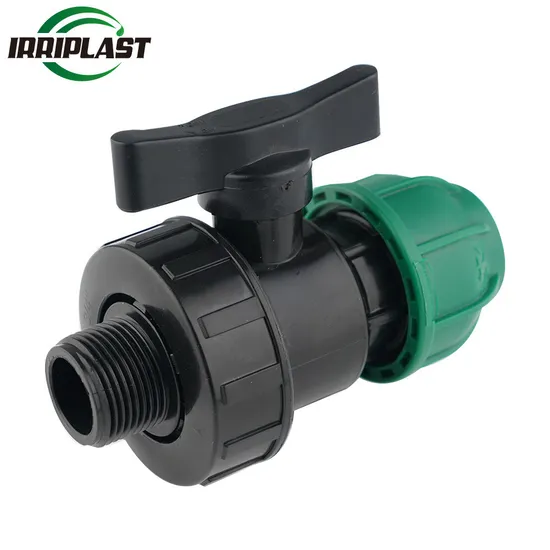

PP Single Male Union Ball Valve M for Irrigation Water Supply

Product Description

PP Single Male Union Ball Valve M for Irrigation Water Supply Product Description
PP compression fittings line has been designed for the conveyance of fluids at high pressures, for water conveyance, for potable water distribution and applications in the thermo-hydraulic sector. This product line is accordance with the most severe international standards in terms of mechanical properties and alimentary compatibilities.
Brand Irriplast was focused on the HDPE PE PP ball valve and compression fittings for irrigation .
Technical data

Part	Material
Body(A)	(PPB)Ploypropylene(PP-B)of exceptional mechanical properties even at high temperature
Blocking bush(B)	Ploypropylene(PPB)
Nut(C)	(PPB)Ploypropylene with dye master of high stability to UV rays and solidity to heat
Clinching ring(D)	(POM)Polyacetal resin(POM) of high mechanical resistance and hardness
O ring gasket(E)	Acrylonitrile elastomeric Rubber(NBR)
Handle(F)	Ploypropylene(PPB)
Ball(G)	Ploypropylene(PPB)
Seal ring(H)	Thermoplastic Elastomer(TPE)
O-ring carrier(l)	Ploypropylene(PPB)
Union(J)	Ploypropylene(PPB)
Ball stem(K)	Polyacetal resin(POM) of high mechanical resistance and hardness

Description	Code	Size	Weight (g/pc)	PCS/CTN
PP ball valve	9003	20x1/2"	89	200
		25x3/4"	144	120
		32x1"	216	80
		40x 1 1/4"	289.6	60
		50x1-1/2"	497	36
		63x2"	823	19

Working Pressures.
PP compression fittings allows the maximum working pressure(PN~PFA*) of 10 bar(UNI 9562) for diameters from 20mm to 63mm ,at the temperature of 20°C.Maximum allowable working pressures related to the duration of pressure and temperature:

Dn	PFA*	PMA*	PEA*
20-63	16	20	24
Temperature(°C )	Da-10a25	Da+26a+35	Da+36a+45
20-63	16	20	24

Main Products
View more products,you can click products keywords...

PPR Pipe	PPR Fitting
PP Union Ball Valve	PP Compression Fitting
Clamp Saddle	Solenoid Valve
Sprinkler	PVC Ball Valves

Company Profile
OTHER DETAIL SERVICES FOR YOU
1.Any inquiries will be replied within 24 hours.
2.Professional manufacturer.
3.OEM is available.
4.High quality, standard designs,reasonable&competitive price,fast lead time.
5.Faster delivery: Sample will be prepared in 2-3 days.
6.Shipping: We have strong cooperation with DHL,TNT,UPS,MSK,China Shipping,etc.
FAQ
1.What is your MOQ?
Our MOQ is usually 5 CTNS for size from 20-50mm.
2.What is your delievery time?
The time of delievery is around 30-45days.
3.What is your payment terms?
We accept 30% T/T in advance,70% before shipment .or 100% L/C.
4.What is the shipping port?
We ship the goods to Ningbo or Shanghai port.
5.What is the address of your company?
Our company is located in the Yuyao, ningbo Zhejiang Province,China.You are welcomed to visit our factory.
6.How about the samples?
we could send you the samples for free, and you need to pay the courier fee.
If there are too much samples, then you also need to undertake the sample fee.

---
