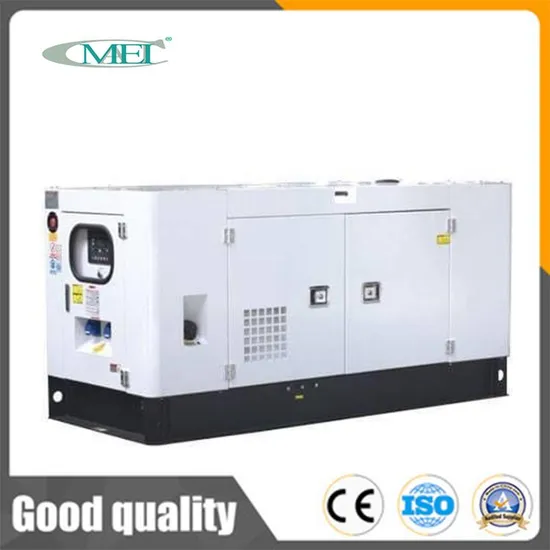

20kw 22kVA 25kVA 30kVA 40kVA 50kVA 30kw Diesel Set Silent Generator 40kw 50kw Water Cooled Silent Type Generator

Product Description

Diesel generator set is a kind of energy conversion equipment. It converts chemical energy into thermal energy and
then into mechanical energy and finally into the required electrical energy. Fuel is its raw material and electrical energy
is its product.
The diesel generator set is a kind of mechatronics equipment. It is composed of three major components: diesel engine,
alternator and control system. The users include: telecommunications industry, banks, airports, command centers, data
centers, highways, high-level Hotels, offices, hospitals, etc.
1. Diesel generator sets have many single-machine capacity levels.
2. The supporting equipment of the diesel generator set has compact structure and flexible installation location.
3. Diesel generator set has high thermal efficiency and low fuel consumption (thermal efficiency 30~46%)
4. The diesel generator set starts quickly and can reach full power quickly. It only takes a few seconds and can be
brought to full load within 1 minute in case of emergency (normally 5~30MIN). The shutdown process is short and
can start and stop frequently.
5. The maintenance operation of diesel generator set is simple, there are few people, and it is easy to maintain during
standby period.
6. The comprehensive cost of construction and power generation of diesel generator sets is low

Generator set model	Standby power	Rated power	Engine model	Engine power	Bore*Stroke (mm)	Compression ratio	Displayment	Motor model	Oil consumption	Oil capacity	Coolant capacity	Coolant capacity
	KW	KW		KW	mm		L		L/H	L	Motor L	water tank L
CMG73-C	80	73	6BT5.9-G1	92	102×120	17.3:1	5.9	WHI-73	20	16	8	26
CMG110-C	120	110	6BTAA5.9-G15	160	102×120	17.3:1	5.9	WHI-110	32	16.4	10	25.9
CMG127-C	140	127	6BTAA5.9-G15	160	102x120	17.3:1	5.9	WHI-127	38	16.4	10	25.9
CMG145-C	160	145	6CTA8.3-G2	180	114×135	17.3:1	8.3	WHI-145	42	28	12	27
CMG182-C	200	182	6CTAA8.3-G9	231	114x135	16.7:1	8.3	WHI-182	51	24	12.3	41
CMG200-C	220	200	6LTAA9.5-G3	280	116.5x148	16.6:1	9.5	WHI-200	54	32.4	11	44.5
CMG220-C	240	220	6LTAA9.5-G3	280	116.5×148	16.6:1	9.5	WHI-220	58	32.4	11	44.5
CMG240-C	264	240	6LTAA9,5-G1	320	116.5×148	16.6:1	9.5	WHI-240	66	32.4	11	44.5
CMG256-C	280	256	GLTAA9.5-G1	320	116.5×148	16.6:1	9.5	WHI-256	70	32.4	11	44.5
CMG288-C	320	288	QSG12-63	369	132×144	17:1	11.8	WHI-288	72	34.1	14	34
CMG328-C	360	328	QSG12-G4	409	132x144	17:1	11.8	WHI-328	82	34.1	14	34
CMG291-C	320	291	QSZ13-G7	419	130×163	17:1	13	WHI-291	80	75.3	23.1	54
CMC327-C	360	327	QSZ13-G7	419	130×163	17:1	13	WHI-327	89	75.3	23.1	54
CMG364-C	400	364	QSZ13-G5	469	130×163	17:1	13	WHI-364	93.2	75.3	23.1	54
CMG400-C	440	400	QSZ13-G10	509	130×163	17:1	13	WHI-400	93.1	75.3	23.1	54
CMG400-C1	440	400	QSX15-G8	500	137x169	17:1	15	WHI-400	104.2	83	24	41.9
CMG600-C	660	600	VTA28-G6	733	140×152	13.1:1	28	WHI-600	147	83	80	100
CMG658-C	720	656	OSK23-G3	768	170x170	16.0:1	23.15	WHI-658	163.8	103	46.5	80
CMG810-C	850	810	KTA38-G5 KTA38-014	970	159×159	13.9:1	37.8	WHI-810	207	135	124	140
CMG900-C	1000	900	KTA38-G9	1089	159×159	13.9:1	37.8	WHI-900	254.4	135	124	212
CMG1360-C	1500	1360	QSK50-G15	1649	159x159	14.7:1	49.8	WHI-1360	346	181	140.6	135.4

FAQ
Q: What is the power range of your generator set?
A: We can provide 10 KVA to 4000KVA, the voltage range is 110V~15000V, and the frequency is 50Hz and 60Hz.
Q: What is the delivery time?
A: 7 working days for 30% T/T deposit
Q: What is your MOQ?
A: Our MOQ is 1 unit
Q: How about your warranty?
A: 12 months or 1000 working hours, whichever comes first.
Q: What are your payment terms?
A: 30% TT as deposit, 70% TT before shipment or irrevocable L/C at sight.
Q: What is your company's production capacity?
Answer: 150 sets per month
Q: Can you provide OEM service?
Answer: Yes

---
