Automatic High Speed Industrial Weaving Water Jet Loom

Product Description

Product display and advantages
Main Feature :

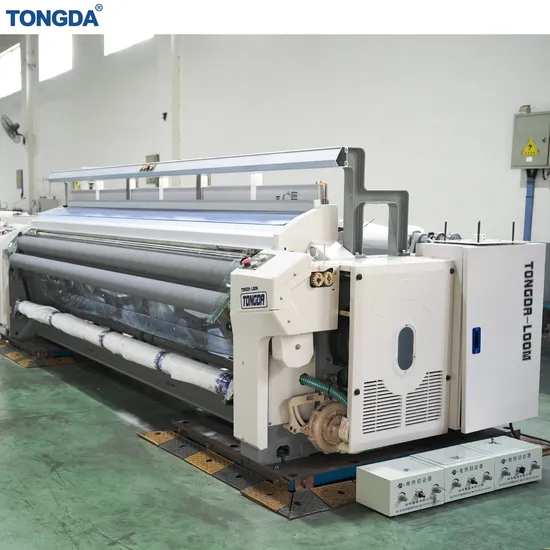

Heavy water jet loom TDW-408 is a new model from our company. It features an enlarged frame, which enhances the stability and aseismicity of the machine. This ensures high-quality fabric production. The water jet loom has been innovated and improved in the aspects of transmission, cam and shedding, let-off and take-up system, as a consequence, it is quite suitable for the high-speed and stable weaving of heavy and high-density fabric
Product Details
TDW-408 heavy water jet loom is the new model of the company, the frame of the whole machine is enlarged, which expands and the area of support of the beam. Therefore, the stability and aseismicity of the machine are greatly increased. The stability of beating-up is highly enhanced which guarantee the high quality of fabric.
TDW-408 series water jet loom is the new model of the company, the frame of the whole machine is enlarged, which expands and the area of support of the beam. Therefore, the stability and aseismicity of the machine are greatly increased. The stability of beating-up is highly enhanced which guarantee the high quality of fabric.
The machine has been innovated and improved in the aspects of transmission, cam and shedding, let-off and take-up system, as a consequence, it is quite suitable for the hi-speed and stable weaving of heavy and hi-density fabric.
This machine can be equipped with single pump double nozzle (TDW-408B) electronic weft feeder, double pump double nozzle (TDW-408B-2P), double pump triple nozzle (TDW-408C2P) electronic weft feeder; it can be equipped with cam shedding device, dobby shedding device; also the electronic let-off and the electronic take-up.
·Optional: mechanical let-off, mechanical take up, electronic let-off, electronic take up
·Optional: 1-6 nozzle electric weft selecting freely.
·Configurable shedding devices: crank shedding; cam shedding:dobby shedding:jacquard
·Optional reed width:135,150,179.190,210,230,260,280,300,320,340,360CM
·The weft density range: 4-100 pick/cm (identified according to actualweft yarn specifications and fabric weave)
·Maximum speed: 1100RPM (identified according to actual weft yam specifications and fabric weave)
·Heald frame number: crank shedding 2-8 pieces; cam shedding 214 pieces: dobby shedding 16
·pieces Install power: 1. 5kw-5. 4kw
Main technical parameters

Optional breadth	170, 190, 210, 230, 260, 280, 340, 360.
Weft insertion rate	Max 2280 meter per minute
Speed	Max 1200 RPM (the actual speed depends on the species of the fabric
The number of heald frame	2, 4, 6, 8 pieces,Cam shedding 10 pieces utmost, Dobby shedding 16 pieces utmost
Power	2.2 KW, 2.6 KW, 2.8KW, 3.0KW, 3.5KW, 4.0KW, 4.5KW.
Range of weft destiny	5~60 thread/cm

FAQ
(1) Q: Why Choose Our Company?
A: History: TONGDA Textile Machinery Group was establish in 1952. Now have more than 65 years old history. Main Products: TONGDA Group specializes in design, manufacturing, and marketing of a wide range of Textile machinery, it has seven branch companies, mainly produces ring spinning frame, roving frame, weaving machine (water Jet loom/Air jet loom/rapier Loom), warping machine, quilting machine and nonwoven machine. We provide design for complete line of spinning mill for cotton yarn, polyester yarn, wool yarn, flax/linen yarn, machines including blow room, carding machine, draw frame, roving frame, ring frame, winding machine, open end spinning machine and the air conditioning system and waste collection system for spinning mill. We also provide workshop layout design and trench design, and air pipe layout design.
(2) Q: How's the after-sale service?
A: We offer engineers available to service overseas under merchandiser's supervision and translation.
(3) Q: Are you available for on-the-spot invitation?
A: We do welcome our new and old friends come here to have a visitation. Besides, we would send you our exposition and relative information to promote a face-to-face meeting if you'd like to.
(4) Q: Is the price offered changeable?
A: We offer reasonable price for every client, and the price is changeable according to purchasing amount.
(5) Q: How about the quality?
A: The main subassembly and raw materials are all supplied by large companies. Key parts are research and developed by our own staff. Professional assembly line work and strict quality test system can ensure your high quality requirement.
(6) Q: Are you a manufacturer or Trade Company?
A: We are a professional manufacturer holding our own International Trade Department, for that we can better understand customer's needs and offer a reasonable price.
(7) Q: Product /Quality Guarantee and After Sale Service?
A: 1 year warranty for the International standard. We are work online 24 hours. If you have any questions about our machine you can contact us.
(8) Q: One-stop Service:
A: We have R&D department including more than 100 engineers which are improving and enlarging our supply range.
(9) Q: Certification?
A: TONGDA is an ISO9001, ISO14001, and ISO13485 company. The products are designed to meet the technical standards of 3C and CE. All the products are certified by the Industry Administration Authority. TONGDA will continue to strive to be a stronger leader in the global market of Cotton machinery and Spinning machinery.

---
