Three/Five/Seven Layer Corrugated Carton Box Sheet Paperboard Production Cardboard Make Line

Product Description

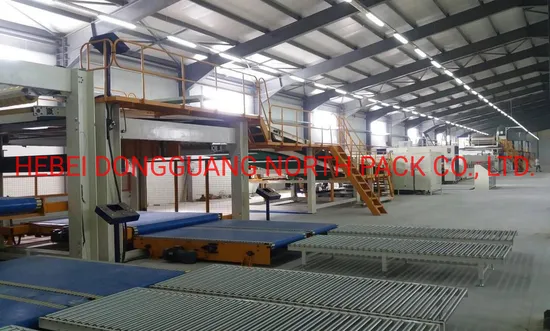

Three/Five/seven Ply Corrugated Cardboard Production Line Plant Machine
Cardboard manufacturing machines, Packaging Machinery, Package Machinery, Packaging Corrugated Machine, Package Corrugated Machine, Complete carton box production line, Packing machinery, Packing machine
Usage and feature:
The assembly line for automated mass production, can produce good national standard corrugated cardboard, high efficiency, good quality board to take centralized control, easy operation, easy maintenance, safety and reliability, greatly reduced the labor intensity. The production line using the latest international energy-saving way to provide high temperature heat source Daore You to machine than the steam heating energy savings above 60%, significantly reducing power consumption, effectively reduced the cost of production, is the ideal product for today's economy and medium-sized carton factory.
Main technical parameters and requirements in production line
type:WJ80-1800-II type five layer corrugated paperboard production line: The maximum production width of the corrugated cardboard:1800mm Design speed:80m/min Economic speed:50-70m/min note:Production line speed test paper should meet the following requirements:(the surface temperature of the equipment is not less than 172ºC)
*Paper rating of not less than B grade *Paper moisture content of about:11%±2%
*top paper:100-250g/m2 *core paper:100--250g/m2
*corrugated paper:100-200g/m2 Flute-type combination:A ,C, B, E(as customers' requirement) Steam the necessary requirements: *amount of steam 2500-3000Kg/Hr *the highest pressure:1.2MPa
*common pressure:0.8-1.1MPa
6,power supply:380V 50Hz Three-phase four-wire system
7,equipment installed total power:about150Kw The actual power consumption:about 80Kw(full speed)
8,equipment covers:about60m×10m×5m(Specific length of foundation Figure prevail)
9,Equipment out of paper orientation:According to the user to determine the transmission plant set left or right position
10,Equipment applicability,Available in A, B, C class domestic or imported paper Paper
Customer-owned section
1,steam heating system:proposal with 4000Kg / Hr of a steam boiler pressure:1.25MPa steam pipeline.
2,air compressed machine,air pipeline,glue conveying pipe.
3,power supply,wires connected to the operation panel and line pipe.
4,water sources,water pipelines,buckets and so on.
5,Water, electricity, gas flush mounting civil foundation.
6,Test with the base paper,corn starch (potato),Industrial use caustic soda,borax and other material.
7,Oil equipment,lubricating oil,hydraulic oil,lubricating grease.
8,installation,commissioning of food, accommodation.And provide installers with the installation.
Sample for reference:
This kind of plant machine make the corrugated cardboard is for the carton box make, there can choose single color,,double color, three color, four color and so on, According to different needs can be customized for customers.

Packaging & Shipping
After the machine is finished and running well, it will be coated with anti-rust oil, which makes the machine not easy to rust in the container, and winding film to prevent moisture. Each unit of the machine will be fixed in the container to ensure a stable and safe arrival at the destination.
About us:
NORTH PACK company is a comprehensive company integrating design, R & D, production, sales and service. Our mainly produces corrugated board production line, high-definition high-speed flexo printing machine, automatic carton gluing and stitching machine ,and other corrugated packaging machinery.
NORTH PACK company's products have passed the technical qualification certification, and are exported to more than 70 countries and regions such as Southeast Asia, Eastern Europe and South America. NORTH PACK will always be your trustworthy friend.
Exhibitions:
Our company has actively participated in various domestic and foreign exhibitions in Shanghai, Turkey, Egypt, India and other countries and regions to show our products and services.
Our Services
1. OEM service are available.
2. Trade Manager online, also contact by Email.
3. To solve problems by pictures/videos.
4. Engineers are available service abroad.
PS: Normally our machines are uneasy to broken because of our professional machine making team and strict QC team, we will also send you our manual and video, what you need to do is just learn some basic thing such as machine maintenance.
FAQ
1. Are you a factory or trading company?
We are both a factory and a trading company in this field .
2. What is the terms of payment you accept?
We usually accept the T/T payment, we need 30% of total amount as deposit,
pay the 70% balance before delivery, but we can also accept the L/C.
3. Where is your factory located ? How can I visit there?
Our factory located in Dongguang County, Hebei Province, China., near to the
capital city Beijing and port Tianjin. You can fly to Beijing airport directly and we
will pick you up there.
4. How does your factory do regarding quality control?
Quality is priority. We always regard great importance to quality controlling from the very small thing(even a small screw we will choose the best quality) from the beginning.

---
