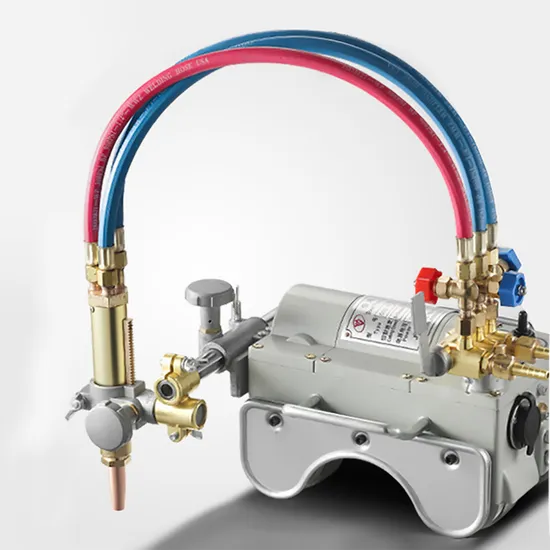

Cg2-11 Magnetic Automatic Pipe Gas Cutting Machine Popular Model

Product Description

Product Description
Automatic magnetic pipe cutting machine is mainly used for pipe cutting.The body of automatic magnetic cutting machine adopts automatic process,simple operation, farewell to manual. The machine is made of high quality magnetic material, which is a safety tool we strictly build.The precision machining quality is stable, safe and reliable,and it greatly improves the production degree and production efficiency . High precision cutting , cutting surface quality is good , can improve working efficiency. Automatic magnetic cutting machine can be applied to petrochemical shipbuilding power generation machinery construction and other industries.
Reference Parameter

Item	Parameter
Product Model	WCG2-11
Input Voltage	AC 220V/50Hz
The diameter of cutting seamless steel pipe	More than 108 mm
The speed of cutting pipe wall	6~50mm/min
The speed of cutting steel plate	50~750mm/min
Magnetic adsorption force	More than 50kg
Weight	20kg
Overall dimensions	350*310*180mm

Major Component
Product Advantage
1, High automation process, eliminating inefficient labor. The overall cutting process has been fully automated operation, simple and easy operation, without labor, cost saving, improve efficiency;
2, Simple and convenient assembly, complete and perfect accessories. The whole machine installation step is convenient and fast, quick and ready to use, save the installation time, both sides of the host handle, easy handling; 3, Strong dynamic magnetic theory, two sets of strong magnetic wheel. With two groups of four strong magnetic wheels, through the transmission mechanism automatically around the steel pipe to cut the steel pipe, cutting process can use oxygen torch or oxygen propane flame. Company Profile
Wincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipments for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction,industrial production lines, clean energy project and other industrial field. Our Services & Strength *We have ability of providing workable solutions to support clients to be awarded with shorter project execution time, fewer man-hour cost and higher efficiency construction/fabrication method and better quality during phase of project bidding.
*Based client's facility/site space availability, we are able to study/design and present matched configurations on project schedule, quality, cost and productivity to guarantee production pace is accordance with project requirement.
*To support project execution, we are always ready to work as fireman to give prompt supply on project materials from different consumables, tools, equipments/machines to special merchandise. With flexibility, we are also glad to perform as procurement agent in China to seek required supply resources.

---
