Gains FRP Calcium Chloride Storage Tanks Factory FRP Material Sulfuric Acid Storage Tank China Horizontal GRP/FRP Tank

Product Description

Gains FRP Calcium Chloride Storage Tanks Factory FRP Material Sulfuric Acid Storage Tank China Horizontal GRP/FRP Tank
Product Description A Horizontal FRP Tank, Also Called A Horizontal FRP Vessel, Is A Device Composed Of A Seepage-Resistant And Anti-Corrosive Inner Layer, A Firm Structural Layer, An Anti-Aging Outer Layer, Heads, Nozzles, And Saddle Supports. FRP (Fiberglass Reinforced Plastic), It's Raw Material, Is A Special Kind Of Plastic That Has Been Reinforced With Fiberglass, Similar To The Way That Rebar Strengthens Concrete. A Horizontal FRP Tank Is A Perfect Choice When You Are In Need Of A Storage Tank But Have A Vertical Height Limitation. By Using The Filament Winding Method, The Material Of The Horizontal FRP Tank Can Be Reinforced To Adjust Its Physicochemical Ability And Meet Different Requirements.
FRP Tank Is A Kind Of Non-Metallic Composite Material Tank Made Of Resin And Fiberglass Winded By a Computer Control Machine. It Has The Advantages Of Corrosion Resistance, High Strength, Long Service Life, Flexible Design, And Strong Workmanship. Due To The Characteristics Of FRP Tanks, FRP Tanks Are Widely Used In Chemical, Environmental Protection, Food, Pharmaceutical, Printing, And Dyeing Industries, Gradually Replacing Carbon Steel And Stainless Steel In Most Market Areas.
Structural Features
The Structure Of The FRP Horizontal Tank Consists Of An Anti-Corrosion Barrier, A Reinforced Structural Layer, And An Outside Anti-Aging Layer. This Kind Of Tank Is Not Only Capable To Resist The Corrosive Chemical But Also Possesses Sufficient Physical Properties
The Tank Wall Structure Performance Is Excellent. Filament-Wound FRP Can Adjust The Physical And Chemical Properties Of The Tank By Changing The Resin System Or Reinforcing Materials To Meet The Needs Of Different Media And Working Conditions. Adjust The Bearing Capacity Of The Tank Through The Design Of The Thickness Of The Structural Layer, Winding Angle, And Wall Thickness Structure, And Adapt To The Needs Of Different Pressure Levels, Volume Sizes, And Some Special Performance FRP Storage Tanks
Advantage
-Superior Corrosion Resistance
-More Resistant To Impact Than Carbon Steel Tanks
-Long Life Span
-High Tensile Strength And Flexibility
-Can Be Manufactured With:
-Open, Flat, Or ASME Dish Tops
-Flat, Sloped, ASME Dish Or Cone Bottoms
-Easily Customize Tanks For Different Uses, Products, And Temperatures
-Durable And Economical - Maintenance Free
-Can Be Used Above And in the Underground
-Both Horizontal And Vertical Configurations
-12 Times Stronger Than Steel By Weight
-High Strength-To-Weight Ratio
-Ease Of Transport And Off-Loading
-Lower Cost For Large To Medium Volumes Vs Steel
-Corrosion Resistant
-Can Be Insulated And Heated
-UV Stable-Resistant To Environmental Exposure

Product Parameters

Product Name	Horizontal FRP Chemical Tank
Keywords	Fiberglass Chemical Tank
Certificate	SO9001
Shape	Round Tank
Raw Material	FRP/Grp
Model	Horizontal
Capacity	Customizable
Key Selling Points	Easy to Operate
Test Pressure	184Mpa
Usage	Storage, transportation
Weight	1T Variety
Color	Green or customized
Surface Treatment	Smooth Surface
Eco-Friendly	Yes
Processing Service	Cutting

Dimension list of FRP horizontal chemical tank

Vol (m3)/Dia (mm)	DN1600	DN2000	DN2400	DN2800	DN3000	DN3600	DN4000
10	5270	3540	2640
30		9910	7060	5360	4780
50			11480	8610	7610	5560
80					11850	8500	7090
100							8680
110							9480
120							10270

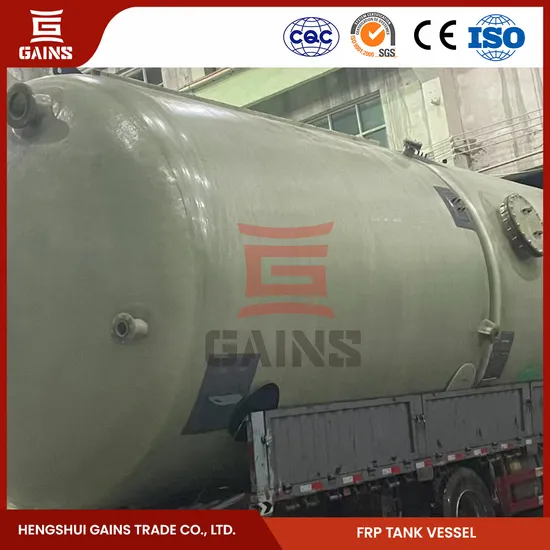

Detailed Photos
Hengshui Gains Trade Co., Ltd. is Located In Jizhou City, Hebei Province-Biggest Production Base Of FRP Products And Radiators In China, Combines Advantages Of Local Different Industries, Hengshui Gains Trade Co., Ltd. Consists Of Several Large-Scale Manufacturers Of, Depends On Customers' Different Requirements, We Recommend And Choose A Suitable Manufacturer To Satisfy And Fulfill, We Can Provide Design, Supply, Shipping, Installation, Commissioning, Etc One-Station Service Or Technical Consultation Service. From Our Company To Tianjin Seaport Is 300Km, To The Nearest Airport, Is 180Km, Nearest High-Speed Train Station Is 90Km.
Our Core Business And Services Are:
1, FRP/GRP Products: FRP Vessel & Tower, FRP (Motor) Pipe, FRP Cooling Tower, FRP Grating, FRP Electrolytic Cells, FRP Septic Tank
2, The Whole Set Of FRP Products Production Line And Technology: Computer Control Filament Winding Machine, FRP Protrusion Production Line, Molded FRP Products Production Line
3, Radiator
4, Electrical Cable
5, Sluice Gate Etc Facilities For Water Conservancy
6, Rubber Bridge Bracing
7, The Whole Set Of Chemical-Making Equipment & Technology: Mannheim Process Potassium Sulfate-Making Equipment & Technology, Titanium Dioxide Production Equipment & Technology
FAQ
Q1: Why Choose Gains Trade?
A1: 15+ Years Experience In FRP Industries, Have Rich Experience That Provides Different FRP Products To Fluor, Technip, Dossan, Arkema, Veolia, Wison, Dupont, Etc.
Q2: Can You Choose The Correct Raw Material For Our FRP Product?
A2: Absolutely, Pls Provide Medium & Concentration, Temperature, Pressure, Etc Technical Parameters, PP/FRP, PVC/FRP, PVDF/FRP, Etc Pipe/Tank/Tower Also Are In Our Supply Scope.
Q3: What's Your Delivery Time?
A3: We Have Several Manufacturing Plants, And Each Plant Has A Design Department And Production Facilities, We Can Finish Your FRP Products In The Shortest Time.
Q4: Which Port Is Nearest To Your Plant?
A4:From From Our Plant To Tianjin Seaport Is 300 km, To Shijiazhuang/Jinan Airport Is 150 km, And To Hengshui, High-Speed Train Station Is 30 km.
Q5:How Can We Guarantee The Quality?
A5:Always A Pre-Production Sample Before Mass Production;
Always Final Inspection Before Shipment;
Q6:Are You A Manufacturer Or A Trading Company?
A6:We Are A Manufacturer, Providing OEM & ODM Services.

---
