Product Description
Product Description

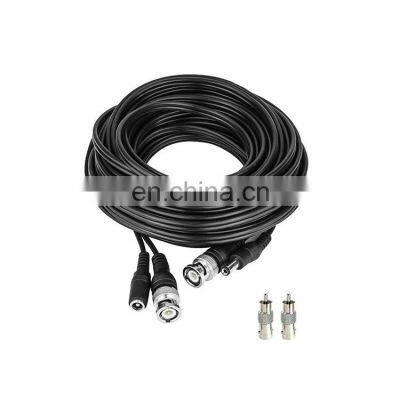

Customized HD-SDI CCTV Camera Cable RG59 BNC With Power Cable 10M 20M 30M 100MProduct Description
(Mini) RG59 + BNC+ DC
|
Inner conductor
| (0.4mm / 0.81mm) BC/CCS
|
Insulation
| (2.0mm / 3.7mm) Foam PE
|
Shield
| Aluminum foil
|
Braid
| Aluminum wire/ Copper clad Aluminum wire/ bare copper wire/ Tinned copper wire / the diameter of wire from 0.12mm / Coverage : 40%~96%
|
Jacket
| (3.5mm / 5.9mm) PVC
|
Color
| Black /White or as per customer's requirement
|
Power cable
|
Inner conductor
| 7*0.2mm stranded Tinned copper
|
Insulation
| 1.12mmPVC
|
Shield
| 35*0.1mm Tinned copper
|
Over jacket
| (3.5*3.5mm / 6.0*3.5mm) PVC
|
Connectors
| BNC Male to BNC male
|
DC male to DC female
|
Length
| 1m/2m/3m/5m/10m/15m/20m/25m/30m or as per customer's requirement
|
Send inquiry
Click here for quote and more information>>>
Company Information
Production Line
Our client
Packaging & Shipping
Certifications
FAQ
Q1:Are you a trading company or manufacture?
A1:YUXUN cable is a professional manufacturer since 1996, so we can provide perfect solution on cables and can control the quality from the first procedure to the last.
Q2:What is your delivery time?
A2:Normally,our delivery time is 15-20days after get your deposit. .
Q3:What is your MOQ?
A3:Usally,the MOQ of our general coaxial cable product is 15-20KM,but every inquiry will be considered individually.
Q4:What is your general payment term?
A4: Normally, our payment term is 30% deposit by TT when order confirmed, and 70% balanced payment by TT or LC at sight before delivery.
Q5: Can you produce the specfic cable strictly according to clients' requirement?
A5: Yes, we have professional technical team, so we can do ODM for customers.
Q6: Where you are located?
A6: We located in the city of ZHUHAI, quite near to HK/Macao/Shenzhen/Guangzhou.
If you intersting in our cables, pls send the enquiry now!!!
Free sample will be deliveried to your address soon!!
