Refrigerator & Freezer Parts Aluminum Roll Bond Evaporator

Product Description

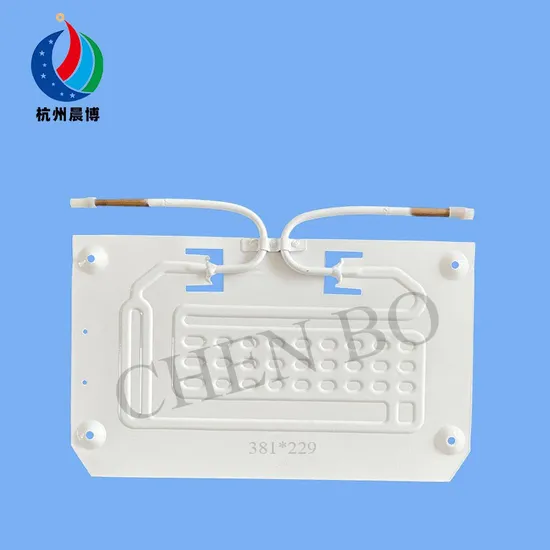

Refrigerator Roll Bond Evaporator
Product Description
Raw material: Al-plate: Finished products thickness: 1.2~2.0mm
Types:
1) Double side roll bond evaporator
2) Single side roll bond evaporator
3) Part single side roll bond evaporator
Technical Standards:
1) Maximum Size: Width 900 mm, length 2000mm
2) Able to produce according to the drawing or sample supplied by clients, also can help the clients design and produce different models.
Main Performance:
(1) Surface treated with powder painting to prevent the corrosion
(2) Inner cleanness can meet the requirement of R134A & CFC cooling system.
(3) Can satisfy the cooling capability requirements
Coating quality performance standard

Coating thickness	Coating thickness ≥ 0.04mm
Coating hardness	≥2H
Coating impact resistance	50 cm. kg/ cm impact resistance, no cracking
Coating adhesion	≥ Level 2
Coating flexibility	Bending R = 3D, bending angle 180 °, coating without cracking or falling off

---
