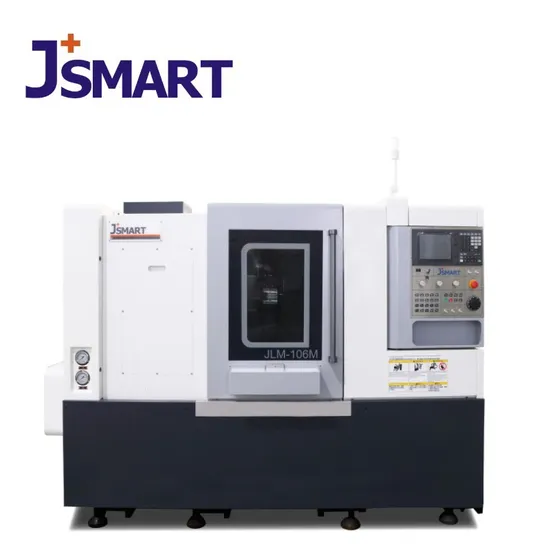

JLM-106M CNC Machine Tools Machinery for Metal Cutting Milling Turning

Product Description

JLM-106M
	Max. swing diameter over bed	mm	∅400	Control system			MITSUBISHI M80B
Machining	Max. swing diameter over camiage	mm	∅350		Interface Spec.	-	BMT55
capacity	Max. turning diameter	mm	∅400	Tool	Center height	mm	100
	Interference diameter of adjacent tool machining	mm	∅200	turret	Cutter diameter	mm	∅330
	Max. machining length	mm	300		Numbers of tools	pcs	12
	Max. stroke of Z axis	mm	370		Shank diameter of square tool holder	mm	25
	Max. stroke of X axis	mm	260		Shank diameter of boring tool holder	mm	40
	Motor power of Z1 axis	Kw	2.2		Numbers of driven tools	pcs	12
	Motor power of X axis	Kw	2.2		Driven tool lock	-	ER25
	Rapid traverse of X / Z1 / Z2 axis	m/min	25		Driven power of driven tool motor	kw	3.7
Spindle	Spindle nose	-	A2-5		Max. Torque of power tool motor	Nm	20
	Spindle diameter	mm	∅170		Max. speed of driven tool motor	rpm	6000
	Bar specification (Standard/Optional)	mm	∅45	Tailstock	Distance between centers	mm	370
	Supporting chuck	inch	6"		Drive Mode	-	-
	Motor power (continuous / 30min)	Kw	5.5/7.5		Center interface	mk	-
	Max. speed	rpm	6000	Appearance	Machine tool appearance	mm	2360*1840*1900
	spindle motor torque (rate/max)	Nm	35/47.7	& Weight	Machine tool weight	Kg	3900
	spindle motor current (continous/30min)	A	32/48
	C-axis resolution	1/n	1024/32768

JLM Series Characteristics
JLM-106 / JLM-106M
JLM-508 / JLM-508M
JLM-1012 / JLM-1012M
JLM-1 series adopts the compact design concept, especially for machining shorter parts, to provide customers with a turning and milling composite center with high cost-effectiveness.
JLM-5 series is specially designed for machining ultra-long part. The effective machining length in Z axis is 500mm, and the outer diameter taper of machined product at the maximum stroke is less than 0.008mm, which is much excellent than the industry standard and national standard.
JLM-10 series machine is designed to have a slant bed and a saddle with large span, achieving better rigidity and stable cutting performance.
with a large swing over bed and an effective machining length of more than 1,000 mm, both long-axial and disc parts can be machined by this series machine. The machine is equipped with standard MT5 servo tailstock, with high precision and fast speed. It is also optionally provided with a variety of optional accessories, such as steady center rest and servo follow rest, which can provide more machining solutions for customers.
JLM series is the type of general-purpose machine, which equipped with high-rigidity bed and roller linear guide rail, combined with the advantages of heavy cutting and fast travel, and fixed with standard hydraulic tailstock under programmable control, so it can meet the machining demand of customers to the greatest extent.
With Its powerful cutting performance and extreme machining accuracy, the JLM series CNC lathe and CNC milling and turning machine of Jhenjet Intelligent combines the advantages of high spindle motor power, high-rigidity bed and turret to provide customer with efficient machining capability.
Base
Integrally formed rigid structure
Add specific trace elements to improve stability
30-degree inclined bed
Easy for chips removal, close-distance operation, and handling
BMT Driven Tool Turret Series
Achieve a quick tool change for a cycle (1# to 12# tools) within 8 seconds.
Have more stable tool locking mode, a repeatability of +/-0.002mm, and positioning accuracy of +/- 0.005mm.
Have a driven tool holder speed of up to 6,000 rpm, providing a better torque and machining efficiency.

CNC system
The Mitsubishi system is the best choice to provide you with stable multi-axis combined machining, and it can optimize your product process while ensuring better product consistency, improving your machining effciency.
Meanwhile, its after-sales service is as timely and efficient as expected by Jhenjet Intelligent.
Hydraulic System
Korea or Japanese hydraulic system is adopted to improve equipment stability.

Spindle
The spindle is supported by front three and rear two roller bearings to improve the rigidity of the spindle and reduce the runout of the spindle.
The spindle has a strong hydraulic clamping force to facilitate the replacement of collets and chucks.
Screw rod and guide rail
The screw pitch in X and Z directions is perfectly matched to create a more perfect appearance effect and an excellent rapid feeding.
Internal Workpiece
Jhenjet Company Profile -Brand "JSMART"
Jhenjet Intelligent has a history of 30 years since its establishment in Taiwan. It has focused on the machining and the manufacturing of key parts and components of machine tools. It also serves as an agent for many Japanese enterprises.
Since it was put into operation in Guangdong Province in 2014, Jhenjet Intelligent has been committed to become a
manufacturer and supplier of specialized turning & milling composite center.
In 2018, it passed the national high-tech enterprise certification and had more than 10 machine tool patents. At present, its eight products have passed the high-tech product certification in Guangdong.
Jhenjet Intelligent has established a complete production and manufacturing system, and implemented the procurement, assembly and inspection processes in a strict manner. Welcomed by the majority of customers, its products are and widely used in the precision and composite machining in aerospace, transportation, optical communications, molds, electronics, watches and other industries.
It has become an influential high-end turning & milling composite brand in South China and the whole country.
Jhenjet Intelligent provide high-quality CNC lathe machine tool/ CNC Turning & milling composite machine, make the production become more automatic and intelligent, and create maximum benefits for employees, customers, industries, and country.
We always believe in and pursue the core value of "Excellet Design, High Quality and Considerate Services" of Jhenjet Intelligent. Ever high quality product is based on an excellent design and will create more value to customers together with value-added service.
In the future, Jhenjet Intelligent will continue to adhere to the concept of sustainable operation, with "Integrity and Responsibility", "Full participation", "Pursuit of Excellence" and "Customer Satisfaction" as the business objectives.
History
In 1994
It was founded in Taiwan and started to undertake the production of spare parts for many Japanese companies.
In 2012
It successfully developed a CNC turning & milling composite machine in Taiwan.
In 2014
It established Dongguan Jhenjet Intelligent Technology Co., Ltd., and was dedicated to the R&D, manufacturing and application of the turning & milling composite machines for the markets in China and Southeast Asian countries.
In 2015
Its servo-powered driven-tool turret and row-turning series turning & milling composite machine / CNC machining machine were marketed and won extensive praise from the market.
In 2016
It set up an application department to quickly respond to customer needs and upgrade customer service to strategic partnership.
Its Y-axis + dual-spindle series of turning & milling composite machine tools were marketed.
In 2017
It was renamed Guangdong Jhenjet Intelligent Technology Co., Ltd.
It was granted four national utility model patents and the certificates of four high-tech products.
In 2018
Shandong Jhenjet Intelligent Technology Co., Ltd. was established to provide faster and direct services to the northern market
It set up a R&D center was established to complete the independent development of tail-mounted motorized spindle of CNC turning machine.
Set up application center and its own machine tools were used to machine and product the high-precision parts.
It passed the 2018 national high-tech enterprise certification.
It was granted six national utility model patents and the certificates of four high-tech products; and submitted the application of two products for a patent for invention.
In 2019
LST LST series products were marketed.
The buffing machine assembly workshop of Guangdong Jhenjet was expanded to improve its production efficiency.
In 2020
* JLM-1012 1000mm Launch model JLM-1012 with machining length 1000mm.
* Established Guangdong 2nd workshop in focus casting machining.
In 2021
* Granted a national innovation patent.
* It passed the 2021 national high-tech enterprise certification.
In 2022
* Establish Guangdong 3rd workshop, extended production scale, the total area up to 7000 square meters.
* Granted another 5 national utility model patents.

---
