Desktop 2D 3D Automatic Tool Changer Woodworking 600*900mm CNC Router Machine Carve Wood

Product Description

Product Description

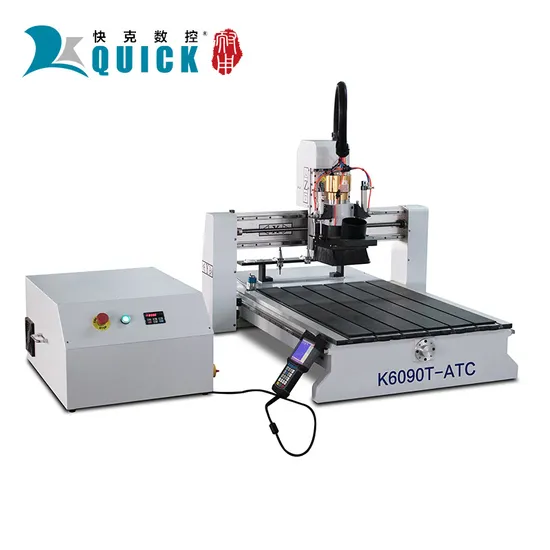

QUICK CNC bench top CNC router is a small cnc router with auto tool changers which ideal for prototyping and smaller production runs. It features a work envelope of 24″ x 36″ and includes an industrial-grade, liquid-cooled electrospindle.
Despite its smaller footprint, it has the same accuracy and cut quality of much larger CNC machines and woodworking routers.
The upgrade Handheld DSP B57 controller with colour screen displays the tool path and the G-code during design and production.
The working size can be designed to 600x1200 ,600x1200.
The 4th axis and the auto tool changers is also available .
Advantage :
1. Ruggedly constructed machine structure. Material is Stress relieved and annealed for deformation free,thus always keep machine accurate.
2 .Machine base is produced by CNC machine, and machine base's five sides are produced at one same procession to make sure the machine body geometry tolerance is standard.
3. The unique reality of the 3-axis screw, the machining accuracy is more accurate.
4. The router spindle is very high precision and water-cooled. which keeps the spindle at a constant temperature and maintains longevity.

Product Parameters

Working Area	XYZ axis	600*900mm
Height	Z axis	150-300mm
Working Table		MDF vacuum table
Move System	XYZ axis	XYZ: ball screw
	Y axis	TAIWAN guide
Motor		Stepper motor
Control System	CNC system	DSP B57
	Memory	8G
	LCD Panel	3"LCD
	Interface	USB
Accuracy	Moving	±0.005/300mm
	Repeat	±0.005mm
	DPI	0.002mm
Speed	Max.Moving Speed	5m/min
	Max.Engraving Speed	3m/min
Spindle	Power	2.2kw water cooling spindle with 5 pcs tool changers
	Rotary speed	0-24000rpm
	Collet	ER20-Φ3.175-Φ16
Power supply	AV	220V/50HZ
Package	Weight	250kgs
	Dimension	1400*1100*1100mm
Working environment	Temperature	+5ºC to +35ºC

Spare parts
Spindle 2.2kw air cooling with 5 pcs tool changers Imported bearings with good quality, long working life Application: Milling,Engraving,Drilling
Every spindle motor must be passed polishing process, Improve spindle concentricity to increase motor working life.

Handheld controller DSP B57
New three-axis linkage motion mode to achieve comprehensive controlling ,Support drive and spindle error alarm function .Large storage space, perfect U disk compatibility, fast reading speed, safe and reliable U disk-processing. Support intelligent file checking function.
Parameter backup and restore function to prevent the loss of important parameters. High anti-jamming intensity passes many CE tests.
Liner guide way 20mm
Precision N class liner guide way with precision less then 0.02mm The liner guide way has middle preloading design,features of high precision and stability may prolong liner guide way.

MDF T slot table
The advantage of MDF table is you can flat the table easily and table Not easily deformed
4th axis is option
Application
Sign and graphics fabrication 3 dimensional (3D) machining (sign, plastics, wood, molds, etc.)
Cabinet making Furniture, general woodworking manufacturing
Store fixture, display manufacturing Sheet plastic fabrication
Solid surface machining Non-ferrous sheet metal machining (aluminium, brass,copper, zinc)
Composite machining (graphite, phenolic, Kevlar, etc.)

Sample photos
Packaging & Shipping
Company Profile
Quick CNC was founded in 2006 ,We are one of the best CNC router suppliers in China. Our products are selling well widely all over the world and have good reputations. Our products can meet different requirements from different customers. With the advanced technology, our experienced engineers can also customize according to detailed needs.
Jinan Quick-Fulltek CNC Machinery Co.,Ltd.specializes in R&D and production of various cnc equipment,such as 3 axis cnc, ATC cnc,automatic load and unload cnc,4 axis,5 axis, PTP, panel furniture cnc. All series machines are with one-year warranty. Meanwhile, customized equipment are available according to different requirements.
Facing the chances and challenges of Global Economic integration as well as being offered with opportunities Knowledge Economy Era,we are determined to achieve our dreams step by step with the advantages of high technology. We aim to be a professional,branding and international suppliers for woodworking industrial solutions.

Our service
1)One year for the whole machine without consumable parts.
2)We will provide the consumable parts at an agency price..
3)24hours online service, free technical support by whatsapp/wechat/call/emails.
4)Machine has been adjusted before delivery,operation disk is included in the delivery,if there is any other questions,please kindly contact us.
5)We have manual instruction and CD (Guiding videos) for software installation ,operation and machines using maintenance.
6)Engineers are avaliable to service machinery overseas.
Special services
(1)If customer have a specific request ,we can according to the clients parameters to customized machine .such as working area,optional accessories ,OME services.
(2)We are Made in China Trade Assurance Supplier.Place orders online ,get full protection under MIC third party guarantees.
Our customers
FAQ
Q: Are you factory or trading company?
A: We are professional factory specialize in CNC equipment for over 13 years.
Q: What's your MOQ? What's your delivery term?
A: Our MOQ is 1 set machine, we usually require 20-30 days for manufacturing, 1 day for packaging.
The exact time will be depended on your order quantity and customized level.
Q: What's your payment term?
A: We normally accept T/T and L/C at sight, other fast payment way is also accepted if the amount is smalll, like
Western union, Mastercard and cash etc.
Q: Whats your warranty time ? What you can supply to us after we bought your machine?
A: We give customer 1 year quality warranty. In case any accident in customer's factory, we will give permanent technic support and spare parts supplying.

---
