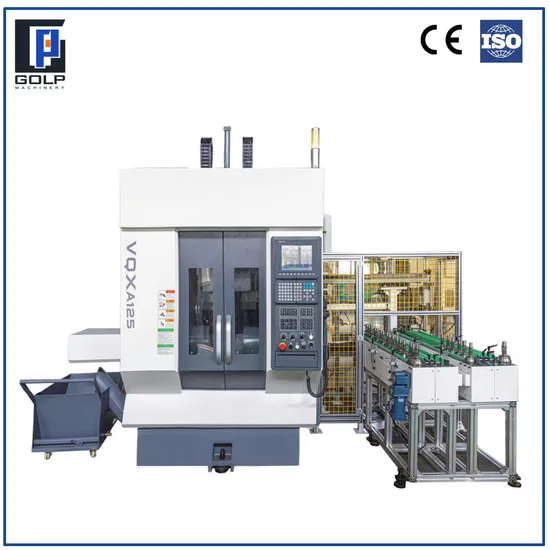

CNC Hard Turning Sphere and Hard Milling Groove Compound Machine for Bell Shell Star Shell

Product Description

cnc hard turning and hard milling compound machine;
hard milling groove and hard turning sphere of outer or inner race;
Δ Clapming one time can complete hard miling groove and hard turning sphere of outer race;
Δ Whole frame casting or marble body, durable;
Δ Multi-sequence compound processing, turning and miling instead of grinding, high efficiency;
Δ End tooth indexing, servo rotation or torque motor composite spindle, high precision;
Δ Servo or torque motor rotary table with angle grating, smooth operation, stable accuracy;
Δ Y-axis double ball screw and roller track with grating ruler, high precision high rigidity, long life;
Δ Special hydraulic elastic clamp, clamping reliable, accuracy stability;
Δ Dry cutting, air cooling, energy saving and environmental protection;
Δ Automatic feeder, modular gripper and positioning device, easy to operate and change type;
Δ Full protection, the processing area and the material machine isolation, easy maintenance;

Groove	QX125
Item	Bell shell(outer race)	Star shell (inner race)
max clamping diameter (mm)	Φ110	Φ35
max workpiece length (mm)	260	60
groove diameter scope (mm)	Φ45-Φ95	Φ20-Φ65
diameter of steel ball scope (mm)	Φ12.7-Φ22	Φ12.7-Φ22
max workpiece handle diameter (mm)	Φ38
Weight (kg)	9000	9000
length x width (mm)	4000x4500	4000x4500

You can click on the image above for details. WUXI GOLP CNC MACHINERY CO,.LTD is located in WUXI the core location of the Changjiang Delta which is the most dynamic economy area in China. We are a new brand company specializing in the CNC machine tool industry. The company is mainly engaged in CNC grinding machine,Die-casting machine, gear shaping machine, gear grinding machine ,gear chamfering machine ,gear measuring centering machine and other new intelligent machine and related supporting products. The company adheres to the business philosophy --Professional quality, Credibility first, Customer first, and is committed to the development goal of becoming an important member of the global market in the field of intelligent machines.
Q: What is the warranty period?
A: We offer a warranty service for all purchased products ranging from 12 to 24 months, ensuring you are worry-free during the use of our equipment. Choosing us means choosing a long-term and reliable partner.
Q: What is the delivery time?
A: For in-stock items, we guarantee delivery within 1-2 months; for custom-manufactured products, we commit to delivering within 5-6 months. No matter how urgent your needs are, we can respond quickly to ensure your project proceeds on schedule.
Q: Do you provide after-sales service?
A: Yes, we provide comprehensive after-sales services, including but not limited to timely supply of spare parts, online technical support, on-site installation and commissioning, as well as operational training. We strive to offer you the most thoughtful service support to ensure the efficient operation of equipment and assist in the continuous growth of your business.
Q: What additional products or services do you offer?
A: we also provide "turnkey" engineering services, customizing automated production lines according to customer needs to ensure seamless integration with existing production processes. We are committed to offering complete solutions to every customer, helping you achieve maximum production efficiency.

---
