US$25,000.00-27,000.00
|
1 Set
(MOQ)
|
Basic Info.
Computerized
Computerized
Transport Package
Wooden Case (Vacuum-Packed)
Specification
CE, ISO9001
Origin
Ruian, Zhejiang, China
Production Capacity
10sets/Month

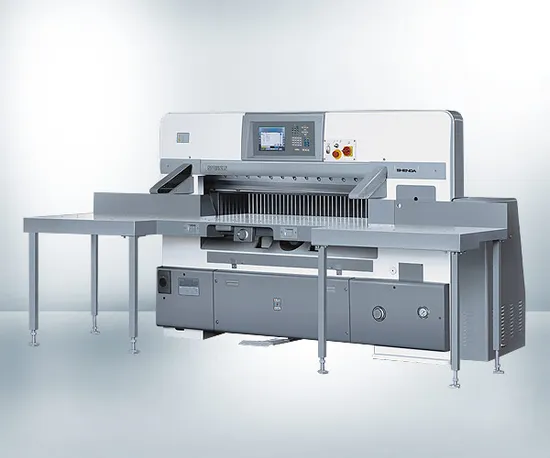

Product Description
THE SYSTEM OF COMPUTER:
1. The displaying panel use 15inch, you can adjust the color by yourself.
2. They have the high quality colors(25600), their storage can reach 90 groups,every group have 999 cut, Its storage time can reach 300,000 hours.
3. The machine have many language such as Chinese,English,Spanish,portuguese,French,Russia.,Arabic..
4. It has luminous shortcut key so as to ensure the hight stability.
5. Double hydraulic model.(Paper cutting and Paper pressbing both by hydraulic.)
THE APPARATUS CONTROLLED SYSTEM:
1. Adopts Switzerland ABB,France SCHNEIDER,Japan OMRON.
2. Servo motor is from Japan PANOSONIC or ANCHUAN.
3. Air pump is from TAIWAN HOUBANG or SHANGHAI.
THE PAPER PUSHER CONTROLLED SYSTEM:
1. Roller ball lead screw: ABBA(can be selected)
2. Rail guide way: ABBA(can be seleced)
3. Use the ITALY oil pump.
THE HYDRAULIC SYSTEM:
1.Adjustable-pressure double-hydraulic system(paper cutting and paper pressing both by hydraulic)(paper pressing and cutting both by hydraulic), 2.combined valve from German, ISO approved hydraulic units.
THE SAFETY PROTECTED SYSTEM:
1. Extensible and precise infrared protective device from Shanghai Zhonghu photocell Control which reaches CE standard.
2. Blade-Replacement Device with safety and convenience.
3. Air cushion and chromeplating platform of photoelectricity protective device.
4. Underlay cutter frame.
5. The closed paper pusher frame.
6. Machine lock,safety bolting,the safety button and light grid.
7.The driving cutting part uses worm and worm gear.
THE ACCESSORY WITH MACHINE:
1. Tool box: 1 set
2. Manual book
3. Operational CD
Main Features:
| MODEL | SQZ-137CTN KL |
| Cutting argument width (mm) | 1370 |
| Max.cutting height (mm) | 165 |
| Max.cutting length (mm) | 1450 |
| Main Power(kw) | 4 |
| Net weight (kg) | 4700 |
Width of machine (side working table included) (mm) Without side working table(mm) | 2870 |
| | 2385 |
| Total length of working table(mm) | 2785 |
| Height of machine (mm) | 1650 |
| Fore-length of working table (mm) | 735 |
| Height of working table (mm) | 900 |
Pressure (dan/bs)) MIN MAX | 150 |
| | 5500 |
Min cutting(mm) without auxiliary panel (mm) With auxiliary panel | 25 |
| | 90 |
| Cutting Speed (t/m) | 45 |
| Voltage(v) | 380V,3PHASE / 220,3 PHASE /415V,3PHASE |
| Overall dimensions (mm) | 2950×1550×2000 |
>>
