Light Gauge Steel Frame Rolling Mill for Modular Design Building House Plant Factory Villa

Product Description

Light Gauge House Steel Frame Roll Forming Machine for Prefabricated Houses
We can manufacturing 89*41, 100*41,100*50 and other customized models light gauge steel frame roll forming machines.
The common model :89*41 machine, main technical data

Main Technical data
No.		Item					Parameters
1		Model					LL-V55-15(89*41)
2		Suitable material					G300-G550 Galvanized roll sheet & SGLC
3		Thickness					0.8-1.2mm
4		Total Speed					Max 100m/min, stable speed 50m/min
5		Total power					15KW
6		Mould material					Cr12Mov/ SD11
7		Hole punching					As drawings
8		Motor power					7.5 Kw AC,Servo motor
9		Total forming station					15
10		Shaft					55mm
11		Size of decoiler					1.3*1.2*1.65m (L*W*H)
12		Size of main roll forming machine					5.85*1*1.7m (L*W*H)
13		Size of collector					3.6*0.8*1m (L*W*H)
14		Size of Land occupation (mm)					14X1.3 m (L*W)

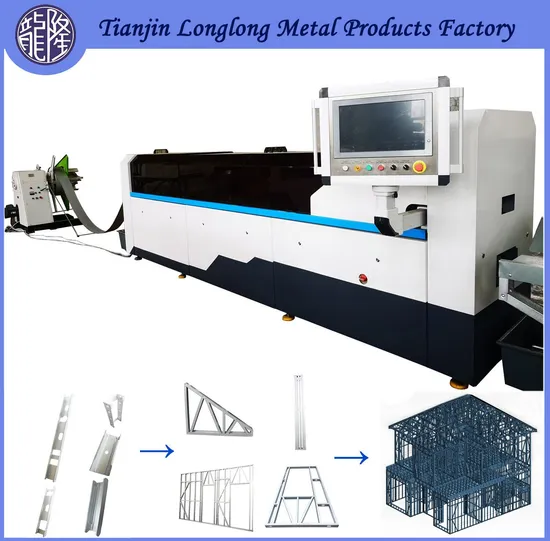

Sample Photo of 89*41 model machine:
Sample Photo of 100*50 and 140*41 model machines:
Steel frames in production.
Each steel profile has tracking code ensure the installtion quickly.
One machine can produce all light steel profiles of Whole house:

3D Drawings of house	Light gauge steel fram house finished installation:

Delicery time : The cutomers confirm the model of machine (89*41 / 100*50 / 140*41, one machine one produce one speficication ), 50 working days after receiving the deposit.
Patent Certificate
Advantage
1.We are manufacturer and have export entitlement.
2.We have more than 30 years' experience, our products have been exported to more than 80 countries all over the world.
3.We supply manufacturing, design, installation, after-sales and other services.
FAQs
1.Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.
We need your machines running in order to keep your business running.
2.How to visit your company?
a. Fly to Beijing airport, we can pick up you.
b. Fly to Tianjin Airport, we can pick up you.
3.How to get a quotation?
a. Give me the profile drawing and thickness, this is the important. If no, I will suggest you some.
b. Other specific requirements are welcome, such as the speed, power and voltage you want.
4.You are trade company or factory?
We are factory. Welcome to our workshop for visiting.
5.Can you be responsible for transport?
Yes, please tell me the destination port or address. We have rich experience in transport.
6.How long the machine could be made?
Normally speaking, common roll forming machine could be made within 45 working days.
If you need machines in a hurry, we can make it for you less than a month.

---
