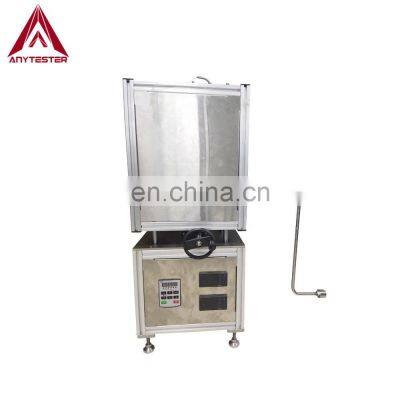

Product DescriptionAT235 Bench-top Wet Spinning Machine is used for the production of polymers that need to be dissolved in a solvent to be spun. It is specially designed for researching new material in the field of textile, macromolecule and other material. It consists of pressure vessel, metering pump, gooseneck, spinneret, coagulating bath, conveying rollers, air-heating device, conveying, washing bath, slow drawing rolls and thermal-setting device, fast drawing rolls and winding device.SpecificationModelModelAT235Spinning solution tank 1L or customized 316L stainless steel Rapid-mount coverWith Nitrogen inlet port and vent portSample volume200~ 600ml or customizedDosing pump flow rate0.66CC/revDosing pump power180WDosing pump reducer1:59Gooseneck material316L stainless steelNo. of spinneret1Spinneret nut 100 holes, hole dia.: 0.07mm Material: tantalumCoagulating bathInner size1000×160×160mm (L×W×H)Material316L stainless steel Drawing rollerMaterialNylonSizeØ50×80mmReducer1:5Motor power120WRoller speed3~40m/min adjustable Heating bathTypenon-contactLength400mmHeating power250WTemp. rangeRoom temperature~150℃SensorPT100 Setting bathTypenon-contactLength(400×2)mmHeating power250W×2Temp. rangeRoom temperature~150℃SensorPT100 WinderSpeed3~40m/minSizeØ95×80mmTransverse displacement 60mmThe Whole line length4200mmPower supplyAC220 50Hz, single-phaseDetails & Features★ Manual lifting platform to move the spinning solution tank, dosing pump, gooseneck and spinneret up or down together;★316L stainless steel gooseneck and coagulating bath;★ Coagulating bath with two filament pressing rollers and optional heating system;★ Optional heating system for coagulating bath; ★ Heating slot adopts non-touch air heating;★ Nylon drafting rollers with adjustable rotation speed;★ The whole line adopt quick joint connecting, it’s easy to assemble; ★ It can simulate the whole process;★ Mini size, save space;Our CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingDimensions1160x510x1050mmWeightApprox. 80kgPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us
>>
