Conveyor Belt Vulcanizer for Rubber St Belt Vulcanizing Press

Product Description

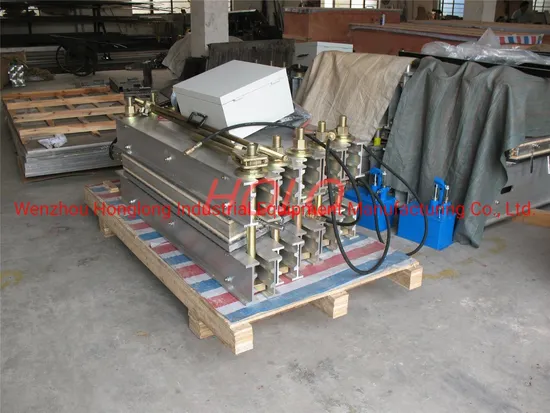

Sectional Vulcanizing Press DSLQ-S New type Vulcanizing Press, one kind of heavyweight vulcanizer, use new design components, include pressure bag, traverse bars with standard heating platen and controller. Good Sale.
What's DSLQ-S series and what it can do: The DSLQ-S sectional has uniform pressure bag and aluminum/steel bolt and high grade aluminum platens and beams with restraining system set as standard. Such belt splicing system designed to be portable and easy to set-up and remove from the site. We can manufacture to all sizes and pressure up
to 200 psi required for different fabric belts and steelcord belts. TECHNICAL PARAMETERS
Waterbag (also can use air pressure) Press for 200PSI etc. surface pressure for textile and steel cord belts, Up to 1.8Mpa. 200 p.s.i. (14 kg/cm sq.) units suitable for splicing steelcord conveyor belting Max Belt width: from 650mm to 3000mm Different heating platen size and combination. Degree of the heating platen: 22 degree bias angle or 17 degree, 20 degree, rectangle and other degree is optional. Power Voltage: 380V. 660V. 480V. 440V. 415V. 400V or 220V Vulcanizing temperature:145ºC (adjustable 0~200ºC) Temperature-rising time (from normal temperature to vulcanizing temperature): no more than 50 min, accords to different conditions, actually, normal conditions, is around 25~30 mins. Improved cooling system, when use pressure pump for cooling, cooling time only 5mins (cooling from 145 to 75 degrees)
*********************************************************
When order, pls supply below information, our engineer will make a solution for you, or pls choose one model from bottom traditional sizes table Max belt width Heating platen length (or pls supply belt manufacturer's recommended splice length) What kind of belt, light duty belts or heavy duty belts Working Voltage Pressure requirements (as our experience, normal is 0.8Mpa, for EP belts is 1.2Mpa, for steelcord belts is 1.4Mpa) Degree of heating platen
Vulcanizer Specification Sheet

Model Number	Max Belt Width	Heating Platen Dimension (mm)	Heating Platen Power (KW)	Cross Beam Length (mm)	Cross Beam Weight (KGS)	Cross Beam Quantity (PCS)
DSLQ-S 800	800	920 X 830 X 55	9	1220 X 165 X 170	21	10
DSLQ-S 800	800	920 X 1000 X 55	11	1220 X165 X 170	21	12
DSLQ-S 1000	1000	1160 X 660 X 55	7.5	1440 X 165 X 170	25	8
DSLQ-S 1000	1000	1160 X 830 X 55	11.5	1440 X 165 X 170	25	10
DSLQ-S 1000	1000	1160 X 1000 X 55	14	1440 X 165 X 170	25	12
DSLQ-S 1200	1200	1380 X 660 X 55	11	1660 X 165 X 250	38	8
DSLQ-S 1200	1200	1380 X 830 X 55	13	1660 X 165 X 250	38	10
DSLQ-S 1200	1200	1380 X 1000 X 55	16	1660 X 165 X 250	38	12
DSLQ-S 1400	1400	1600 X 660 X 55	12	1880 X 165 X 250	42	8
DSLQ-S 1400	1400	1600 X 830 X55	16	1880 X 165 X 250	42	10
DSLQ-S 1400	1400	1600 X 1000 X 55	19	1880 X 165 X 250	42	12
DSLQ-S 1600	1600	1900 X 660 X 55	15	2180 X 165 X 250	50	8
DSLQ-S 1600	1600	1900 X 830 X 55	19	2180 X 165 X 250	50	10
DSLQ-S 1600	1600	1900 X 1000 X 55	22	2180 X 165 X 250	50	12
DSLQ-S 1800	1800	2100 X 660 X 55	16	2400 X 165 X 320	73	8
DSLQ-S 1800	1800	2100 X 830 X 55	21	2400 X 165 X 320	73	10
DSLQ-S 1800	1800	2100 X 1000 X 55	25	2600 X 165 X 320	73	12
DSLQ-S 2000	2000	2300 X 660 X 55	18	2600 X 165 X 320	90	8
DSLQ-S 2000	2000	2300 X 830 X 55	23	2600 X 165 X 320	90	10
DSLQ-S 2200	2200	2540 X 660 X 55	20	2800 X 165 X 320	97	8
DSLQ-S 2200	2200	2540 X 830 X 55	25	2800 X 165 X 320	97	10
DSLQ-S 2200	2200	2540 X 1000 X 55	30	2800 X 165 X 320	97	12

Main Componets:
1.Light weight Beams with bolt & nut set
-The beams made of extruded aluminum, light weight
-Completed section, make sure the beam structure will keep as original, more safe.
-Recessed high tensile steel nut/bolt assemblies, material 45#.
-Nut and bolt within the beam, more safe.
-Easy assemble by hand, no need use tension wrench to fix the nut & bolt.
2.Silicone Heating Element
-Flexible & offer uniform heating
-Silicone heating elements, durable composite insulating packaging, more safe.
-It's totally sealed, these heating elements can't touch the air, longer life time.
-Power connections are sealed for moisture resistance.
-Easier Maintenance
3.Uniform Pressure bag (Reinforce Rubber Bag, without metal frame)
-Light Weight and new design with completed rubber, supply uniform pressure, also can used for both air and water pressure.
-Rugged inflatable pressure bag made from durable fabric reinforced rubber
-Ensures uniform pressure over entire platen area.
-Air pressure up to 100 psi (7 kg/cm²) or water pressure for operating pressure up to 200 psi (14 kg/cm²).
4.Auto controller with cables
-Include 2 temperature controllers, 1pc timer, 2 pcs amperemeters and one pc voltmeter
-Dual Omron or SHIMADEN digital temperature control and indication
-The same standard as Almex, easy exchange by your old Almex control system. More flexible and save cost.
-Accurate temperature and read out, CE approved electric components.
5.Auto pressure pump & cooling
