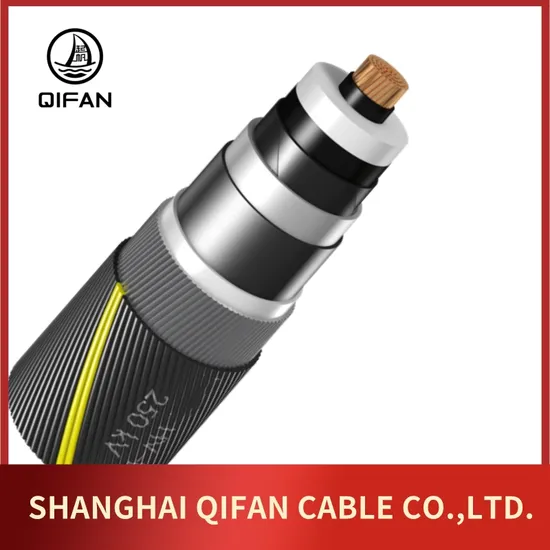

35kv Copper XLPE Insulation Mv 3 Core Submarine Power Cable up to 500kv

Product Description

35kV Copper XLPE insulation MV 3 Core Submarine Power Cable up to 500kVsubmarine power cable is a major transmission cable for carrying electric power below the surface of the water. It is also possible to use submarine power cables beneath fresh water. Yichang Qifan Cable Co.,ltd.,a wholly-owned subsidiary of Shanghai Qifan Cable.,ltd. Was established on October 2020. with a registered capital of RMB200 million, The company is close to the world-famous Three Gorges Power Station, It currently has about 300 employees, The plant covers an area of about 450,000 square meters and has an annual production capacity of more than RMB 3 billion, It has a 400-meter-long submarine cable transport plank road leading to the Yangtze River docks.
Yichang Qifan Cable has a VCV line with tower height measuring more than 180 meters and a series of advanced high-voltage cable and submarine cable production equipment capable of manufacturing onshore and submarine power cable of 500KV and below, They include
√ Two Finnish MAILLEFER high-voltage cable VCV production lines
√ A German TROESTER high-voltage cable VCV production line
√ Two Finnish MAILLEFER medium-voltage cable CCV production Lines,
√A French POURTIER frame type wire standing machine and a drum twister machine Construction System voltage: U≤33kV
Conductor: Circular stranded copper or aluminum conductor constructed of round or profiled wires.
Insulation: Cross-linked polyethylene (XLPE) or TR-XLPE
Metallic Screen: Copper wire, copper tape and lead alloy sheath , etc.
Radial water barrier: Semi-dry design: Laminated aluminum foil
Dry design: Lead alloy sheath
Wet design: PE sheath
Armor: Three-core: Galvanized steel wire
Single-core: Magnetic galvanized steel wire,
Non-magnetic HD copper wire, stainless steel wire
Armor bedding & serving: Polypropylene yarn

System voltage:	30kV≤U≤500kV
Conductor:	Circular stranded copper or aluminum conductor constructed of round or profiled wires.
	Max. CSA 3000sq.mm
Insulation:	Cross-linked polyethylene (XLPE)
Metallic Screen:	30kV≤U≤66kV: Copper wire, lead alloy sheath
	U≥110kV: Lead alloy sheath
Radial water barrier:	Semi-dry design: Laminated aluminum foil
	Dry design: Lead alloy sheath
Armor:	Three-core: Galvanized steel wire
	Single-core: Magnetic galvanized steel wire; Non-magnetic HD copper wire, stainless steel wire
Armor bedding & serving:	Polypropylene yarns

Types & Purposes
For offshore wind farm
-Export cable to transport the total generated power from offshore substation to onshore substation
For interconnection
-Interconnecting grids of countries
-Power supply from mainland to isolated islands

---
