1u Rackmount H87 I3/I5/I7 8 LAN 4 SFP Networking Appliance

Product Description

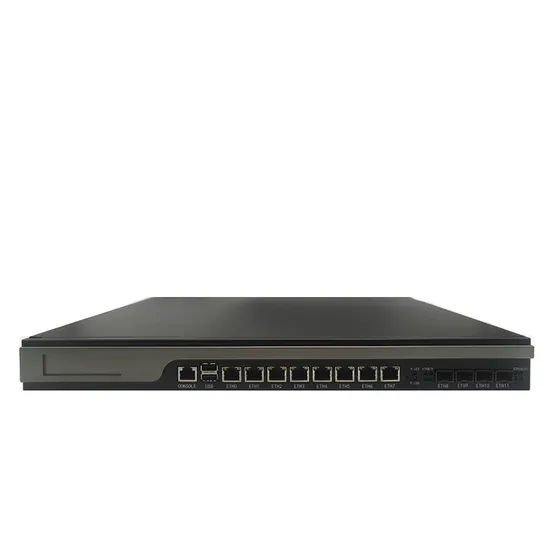

1U Rackmount H87 I3/I5/I7 8 LAN Networking Appliance [ R01-ULSP-8B ]
1U Rackmount Enclosure
Support LGA1150 Intel® Core™ i3/i5/i7 Processor
2x DDR3 SODIMM 1333/1066,Max. 16GB
8* LAN+4 *SFP ,1*RJ-45 COM,2*USB 2.0,1*VGA
430mm*380mm*44.5mm
1U ATX Power

1	Spec.	Standard 1U Rackmount Enclosure ( Black Metal + Aluminum Panel)
2	Dimension	430mm*380mm*44.5mm
3	Processor	Support LGA1150 Intel® Core™ i3/i5/i7 22nm Processor
4	Chipset	Intel ® H87 Express Chipset
5	Storage	2*2.5" SATA Or 1*3.5" SATA HDD slot ;1*mSATA SSD slot
6	Memory	2*SO-DIMM DDR3 1333\1600MHz 1.35V Memory,up to 16GB
7	LAN Ports	8*RJ45 Gigabit Ethernet Ports+4* Gigabit Ethernet Ports SFP Cards,4*SFP Link indicator ( 2nd option: Optical Fiber Card with 4*Intel ® 710 10Gb Ports)
8	Display Port	1xVGA
9	COM Port	1* RS232 CISCO Standard Console Port
10	USB	2* USB2.0;
11	Indicate LED	1 x Hard Disk Indicator ,1*Power Indicator
12	Other	1xATX Power Input ;1* Power Switch Off/On
13	OS Supported	Windows 7/Windows8/Windows10,64bit(not include OS code) ; Linux (Centos,Ubantu etc)
14	Power Type	220V 1U Hunkey PSU,Compatible with Rebundant Power
15	Working Temp	-10ºC ~ +60ºC
16	Storage Temp	-20ºC ~ +70ºC
17	Relative Humidity	5~95% RH,No Condensing
18	Working Vibration	5-60Hz,0.1 Biodal Displacement

2U Network Appliance for choice

Other 2U Appliance optional
OEM/ODM Projects Welcome!
R&O is an professional Industrial Motherboard and IPC manufacturer with the ability to bring your concepts and ideas into viable computing solutions. We work with individuals and companies at all stages of design and manufacture, from concept to finish, in a highly focused effort to bring industry level products and services to you.
The steps as below :

Once customer provides us with concept information and detailed specifications, we will notify them of the total cost for design, prototyping, and estimated cost per unit before the project begins. From Computer-on-Modules and SBCs to embedded integrated systems and application ready platforms, R&O's OEM/ODM services cover the full project life cycle.
To maximize product availability, R&O maintain stringent quality standards in our manufacturing processes, and ensure products go through rigorous quality checks at every stage of production.
OEM/ODM Services
In order to meet the market's demand and provide the suitable solution, R&O offers board level and system level customized design and integration service for the IPC market.
OEM/ODM Service for Single Board Computer and
PCB placement / Layout / Assembly
Custom CMOS/BIOS Setting
Customized Indicated Accessories and Peripherals Pre-installed
Embedded OS
Environment Test
OEM/ODM Service for System Configuration and Integration
ID and Mechanical Customization
System Assembly
Custom CMOS/BIOS Setting
OS Installation
Completed System Test
Certification Tooling
Customized Packing Carton
OEM/ODM Service Flow Chart
R&O is committed to delivering quality solutions to our customers through our OEM/ODM services. Delivered straight from our corporate OEM/ODM Team, the products benefit our clients by lower manufacturing costs as well as a shorter lead-time for product development. welcome your inquiry !

---
