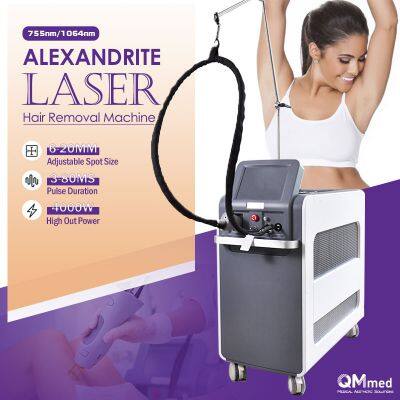

2023 Laser Hair Removal Beauty Machine 755nm 1064nm Long Pulsed ND YAG Tattoo Removal
Model: QM-755
Appliction:
Hair removal on all skin and hair types
Spider veins
Telangiectasia and telangiectatic matting on the face and legs
Nail fungus treatment
Removal of epidermal pigmented lesions (Sun-damaged skin, Age spots, Freckles)
Treatment of vascular anomalies
Working Principle
Ten times effect of traditional Q-switch nanosecond laser Pico second laser is used to break up pigment particles under skin. Then, lymphatic system latches onto the pigment particles and carries them away to get excreted.
Specialty of QM-755
First-Class Lamp, YAG Bar and Laser emitter
Operation Interface
Specification
Items
| Details
|
Control
|
|
Monitor
| 10 inches Digital Real Color LCD
|
Interface
| Touch
|
Control system
| Single chip
|
Headpiece
|
|
Headpiece/spot-size
| 8-18mm spotsize with cold air coolilng
|
Wave-length
| 1064nm&755nm
|
Cooling
|
|
Cooling system
| Water cooling
|
water temperature
| 5-25 oC auto control
|
Skin cooling
| Peltier cooling+ Cold air cooling
|
Interface
|
|
Energy
| 100J 1064nm, 60J 755nm
|
Pulse width
| 5-100ms
|
Pulse amount
| 1-5T
|
Pulse interval
| 5-100ms
|
Pulse frequency
| 0.25, 0.5, 1Hz,2Hz
|
Pilot beam
| 520nm green laser
|
Power system
|
|
Power supply part
| 3680 watts with double IGBT
|
IGBT part
| Made in Japan
|
Capacitance capacity
| 5000ufx8=40000uf
|
In charge voltage
| 400-600V DC
|
Capacitance
| 10000ufx8
|
Laser board
|
|
Lamp
| 100x176x10mm Made by UK
|
Lamp amounts
| 2 pieces
|
Rod
| Alexandrite Rod 755nm
|
LBO
| PP-LN
|
Wavelength output
| 755nm
|
Fiber
|
|
Laser fiber
| Made by Japan, MITSUBISHI
|
Fiber spec
| 1mm diameter with 2200mm length
|
Size & Weight
|
|
Size
| 400(W)x800(L)x1150mm(H)
|
Net weight
| 95KG
|
Before & After
>>
