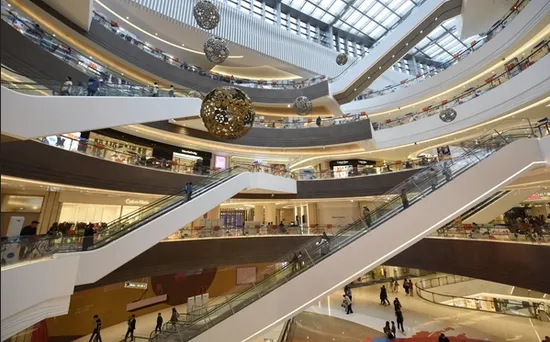

China Supllier Syney Cost Price Automatic Escalator for Shopping Mall

Product Description

China Made High Wholesale Quality Moving Walker Convyor Electic Escalator Product DescriptionProduct Description
Model: XNFT-007
Syney is always being dedicated to manufacturing high quality and superior performance elevators and escalators in accordance with international and professional standards. Different workshops, including electronic workshop, electronic control workshop, traction machine workshop, door system workshop, truss workshop, sheet metal workshop, assembly workshop and packing workshop ect. have been set up and full automatic production lines have been introduced as well, which endow Syney with an annual production capacity more than 30000 sets and all-around service capability, contained of passenger elevator, freight elevator, panoramic elevator, hospital elevator, home lift, car lift, escalator, moving walk, shopping cart trolley escalator, and waving escalator.

Escalator	Indoor and Outdoor
Travel Height	H≤30000mm
Step Width	600mm, 800mm, 1000mm
Inclined Degree	35°, 30°
Speed	0.5m/s, 0.65m/s
Escalator Width	1200mm, 1400mm, 1600mm
Noise	≤65dB
Vibration	≤35cm/s²
Flat step	2 flat step, 3 flat step, 4 flat step
Running	Single speed up &down reversible
Delivery	40ft high container
Power Supply	Power 380V , 50Hz 3 Phase 5 Line
	Lighting 220V, single phase
Energy Saving Function	VVVF, Auto start stop

More products please click here
Product ParametersEscalator safety measures
Functions

Standard safety functions
1	Emergency Stop Button	Yes	19	Machine Room Protect Board	Yes
2	Handrail Entry Contact	Yes	20	Step Light	Yes
3	Broken Step Chain Protection	Yes	21	Skirt Panel Contact	Yes
4	Comb Plate Contact	Yes	22	Step Yellow Safety Line	Yes
5	Inspection Socket	Yes	23	Alarm Bell When Start	Yes
6	Phase Failure and Phase Stagger Protection	Yes	24	Floor Plate Open Device	Yes
7	Step Sag Contact	Yes	25	Alarm Signs	Yes
8	Stop Button	Yes	26	Main Driving Chain Broken Protect Device	Yes
9	Main Power Switch	Yes	27	Overspeed Lowspeed Protection	Yes
10	Circuit Grounding Device	Yes	28	Step Static-free Device	Yes
11	Non-operational Reversal Safety Device	Yes	29	Handrail Belt Speed Detect Protection	Yes
12	Overload Protect	Yes	30	Floor Plate Open Detect Device	Yes
13	Portable Lamp and Socket	Yes	31	Step Missing Detect Protection	Yes
14	Handrail Belt Antistatic Device	Yes	32	Working Brake Open Detect Device	Yes
15	Traction Flywheel Cover Open Detect Switch	Yes	33	Skirt Panel Anti Clamp Device	Yes
16	Maintenance Power Supply Socket	Yes	34	Working Brake	Yes
17	Step Anti Bounce Device	Yes	35	Auto Lubricating Device	Yes
18	Safety Signs	Yes
Optional functions
1	Blocking device	○	8	Handrail lightening	○
2	Anti-climb device	○	9	Direction indicator	○
3	Anti-climb device is Not preset.	Yes/No	10	Oil-water separator	○
4	Vertical protect board	○	11	Liquid level switch	○
5	Handrail disconnect protect device	○	12	Heating device	○
6	Brake shoe wearing detection	○	13	Cladding	○
7	Auxiliary brake	○

Manufacturing & PackingManufacturing & Packing
From the raw material getting into factory to finished products getting out to customers, Syney has a strict operation system to control each steps.
No rejected raw material will be accpeted!
When raw material comes to factory, QC department will check all the materials, once any fault items found, it will be returned to suppliers at once. Only qualified material will get into raw material warehouse.
Production management
Every week, production department will make the production plan and update the schedule of online products. There is daigital board in each workshop showing the production plan everyday. In this way, from workers to managers all clearly know which project is online now.
Every moring, managers will guide the workers to run for 15 minutes first to refresh. Then check the machines status before operation and check again after one day job.
Packing
All parts are packed in solid plywood boxes, which can stand long time sea shipping and fumigation free. For some important parts like control cabinet, door operator and motor, parts will be covered by a strong film first, with desiccant, before put into boxes.
Quality control
1) All raw materials will be checked before get into warehouse. And bulk electronic product do sampling inspection. All parts must have qualified certificate from suppliers. QC1 is responsible for this.
2) During production stage, QC2 will check commissioning for each elevator, escalator and moving walks.
3) After elevator and escalator finished, QC3 will test the match of elevator motor and control cabinet, and the running condition of escalator and moving walks.
4) After packed, QC4 will check package condition for each parts, and takes photo for further reference.
5) When delivery, QC5 will check if all parts packed in container to avoid any missing, and takes photo for further reference.CertificationsCertifications
Germany TÜV SÜD is one of the strictest certificates worldwide, which is widely accepted in Germany and European countries. Once the elevators, escalators or parts are with TÜV SÜD mark, they are exempted from inspection. TÜV SÜD mark, which Syney has gained, indicates that Syney has moved its quality certification system forward to a new stage, and met the international certified bodies' requirements.
CE Certificate of escalator and moving walk/ passenger conveyor
CE Certificate of energy-efficiency: A+++
EAC Certificate of escalator and moving walk/ passenger conveyorCompany ProfileCompany Profile
Syney Electric (Hangzhou) Co., Ltd. is a professional enterprise integrating R&D, design, manu­facture, marketing, installation and customer service. The company applies whole set of advanced equip­ments and specializes in design and manufacture of products including passenger lift, sightseeing elevator, bed elevator, cargo elevator, villa elevator, vehical elevator, esca­lator, passenger travelator, shopping cart trolley escalator, waving escalator, etc. Depending on advanced technologies, modern equipments, standardized management, precise brand location and perfect marketing and service network, Syney business keeps steady growth. Syney network not only covers the whole country, but also expands to over 50 countries in Europe, Asia, Africa and America. Syney is one ofthe most development potential elevator companies in China.
ProjectsProjects
FAQ1. How to get fast reply for inquiry?Send complete information to us, like below example:

Product	Below info. Provided by customer
Escalator	Indoor or Outdoor
Travel Height	4500mm
Step Width	1000mm
Inclined Degree	35° or 30°
Speed	0.5m/s
Escalator Width	1600mm
Span length	11251mm (pls provide if you have)
Horizontal step	2
Running Mode	VVVF or VVVF+Auto start stop
Power Supply	Power 380V , 50Hz 3 Phase 5 Line
	Lighting 220V, single phase

2. How to place order1) confirm the elevator specification and drawing;
2) sign contract with Syney;
3) production arranged after contract confirmed and payment received;
4) after products finished, inform the customer about the delivery time and book ships;
5) arrange delivery and send documents to customer after shippment;
6) follow up with customer for after sale service.3. What's your delivery time
Usually 30 days after the arrival of deposit, but urgent production is also avaible. As the biggest and best China elevator and escalator supplier in world, Syney has the ability to support your projects in various ways.
4. What's the product warranty
The warranty for elevators is 18 months after delivery.5. Installation and commissioning1) for installation, factory will provide complete set of installation manual.
2) for commissioning, factory can provide remote guiding.
3) for special projects, factory will send engineers to site to help installing.
4) for all our agents, Syney welcome you to send your technicians to our factory to get training. Syney will cover the accomodation and transportation in our city.6. After sale problems
Please tell us the contract number or product serial number, factory can check the product records according to the code.
7. What is your advantages

---
