| Model | W50-T-P-DE (DC66P) | W100-T-P-DE (DC88P) |

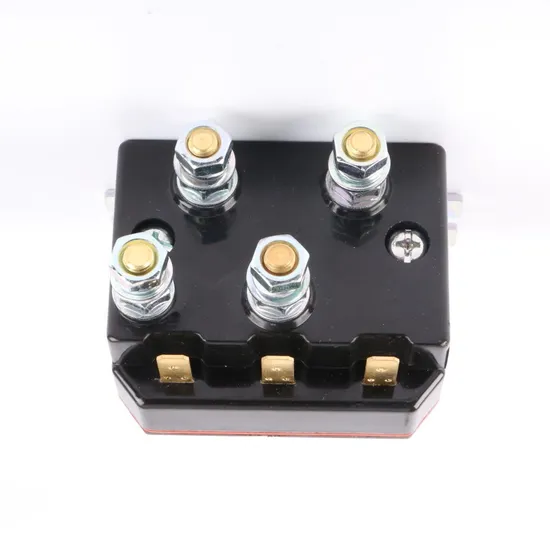

| Photo | ||
| Coil Voltage | 12VDC, 24VDC, 48VDC, 72VDC etc | |
| Rated Voltage of Contact Circuit | 80VDC and below | |
| Rated Current | Continuous 50A, Intermittent 200A | Continuous 100A, Intermittent 400A |
| Dielectric Voltage Strength | 50Hz 1000V AC 1min | |
| Volt Drop of Main Contact | < 100mV | |
| Mechanical life | 100 thousand times | |
| Electric life | Continous 20 thousand times, Intermittent 2 thousand times | |
| Contact Form | Double Pole, Changeover Contacts (Paired Single Pole Double Throw) | |
| Coil Power | 25-27W | 29-31W |
| Typical Pull-In Time (N/O Contacts to Close) | <30ms | |
| Typical Drop-Out Time (N/O Contacts to Open) | <50ms | |
| Pull-In Voltage (Coil at 20ºC) | <75%Us | |
| Drop-Out Voltage (Coil at 20ºC) | 5% - 40% | |
| Main stud terminals | M8 | |
| Feature | Waterproof, Heavy load for various Winches, Tarp motors, etc | |
| Wiring Diagram | ||
| Installation Diagram | ||
