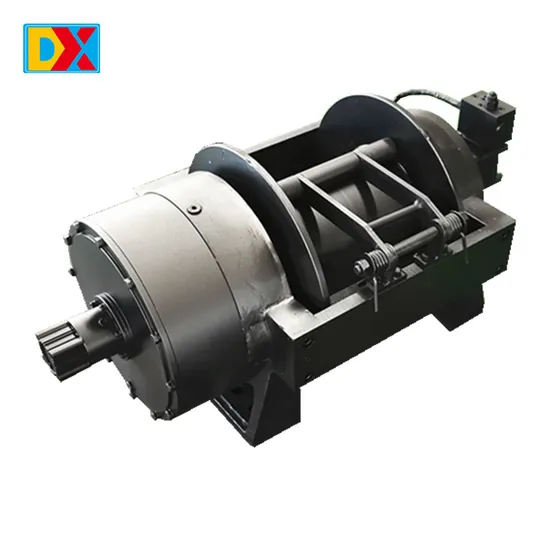

Daixin Patent Hydraulic Stable Anchor Winch for Sale

Product Description

Product Description
Daixin hydraulic planetary winches are designed with working capacities of 7185.84 Nm to 78400 Nm, satisfying most demands of the towing and lifting, rescue and road clearance, utility, forestry, oil & gas, and mining & construction applications, etc.
The hydraulic winches are operated by air, providing fast ling output, limiting time in the danger zone, reducing wear on
components, and increasing efficiency and productivity on the job.
Most models can be either foot or side mounted for adaptability and ease of maintenance. The compact size reduces cable catch between drum flange and end support housing.

Product Parameters

Hydraulic Winch/Hydraulic Capstan
Model	DJ8	DJ10	DJ15	DJ20
Max. Pull capacity	75 KN	95 KN	145 KN	196 KN
Nominal torque	7185.84Nm	9897.5 Nm	15000 Nm	22371 Nm
Steel cable length	45 m	60 m	56 m	60 m
Steel cable diameter	14 mm	18 mm	22 mm	26 mm
System pressure	17 MPa	17 MPa	16 MPa	17 MPa
Hydraulic oil volume	0.8 L	0.8 L	0.8 L	0.8 L
Anchor bolt	8×M16	8×M20	8×M20	8×M24
Gross weight	160 kg	271 kg	320 kg	370 kg
Model	DJ25	DJ30	DJ40	DJ50
Max. Pull capacity	245 KN	294 KN	390 KN	490 KN
Nominal torque	34000 Nm	41000 Nm	54800 Nm	78400 Nm
Steel cable length	55 m	55 m	68 m	68 m
Steel cable diameter	30 mm	32 mm	36 mm	40 mm
System pressure	18 MPa	17 MPa	17 MPa	18 MPa
Hydraulic oil volume	1.5 L	1.5 L	1.5 L	1.5 L
Anchor bolt	8×M27	8×M27	8×M33	8×M36
Gross weight	580 kg	650 kg	725 kg	760 kg

Packaging & Shipping
1. Packed by wooden box, fumigation-free for export and import standard.
2. Shipped by sea or air with customer require
